PROROCESSOR | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Support Socket AM4 |
| |
| AMD B550 Chipset |
|
MEMORY | 4x DDR4 memory slots, support up to 128GB |
| |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
| Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
| |
| 1DPC 1R max speed 4400 MHZ |
| 1DPC 2R max speed 3733 MHZ |
| 2DPC 1R max speed 3866 MHZ |
| 2DPC 2R max speed 3466 MHZ |
| |
| Dual channel memory architecture |
| Supports non-ECC UDIMM memory |
| Supports ECC UDIMM memory (non-ECC mode) |
| Supports un-buffered memory |
| |
| 1. Please refer www.msi.com for more information on compatible memory. |
| |
EXPANSION SLOT | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) |
| 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode |
| 2x PCIe 3.0 x1 slots |
| |
| 1. The supported specification depends on installed processor. |
| 2. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot. |
| |
MULTI-GPU | Supports 2-Way AMD CrossFire™ Technology |
|
ONBOARD GRAPHICS | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz |
| Support HDCP 1.4 & 2.3 |
| 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz |
| Maximum shared memory of 16 GB |
| |
| 1. Available for the processor with integrated graphics. |
| 2. Graphics specifications may vary depending on the CPU installed. |
| |
| STORAGE | AMD B550 Chipset |
| 6x SATA 6Gb/s ports |
| 2x M.2 slots (Key M) |
| |
| M2_1 slot (from AMD processor) |
| |
| Supports PCIe 4.0/ 3.0 x4 1 |
| Supports SATA 6Gb/s |
| Supports 2242/ 2260/ 2280 storage devices |
| |
| M2_2 slot (from AMD B550 chipset) |
| |
| Supports PCIe 3.0×4 |
| Supports 2242/ 2260/ 2280 storage devices |
| |
| 1. The supported specification depends on installed processor. |
| |
| RAID | AMD B550 Chipset |
| Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| |
| AMD Processor |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) |
| 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| |
| AUDIO | Realtek® ALC1220P Codec |
| 7.1-Channel High Definition Audio |
| Supports S/PDIF output |
| |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
|
| WIRELESS LAN & BLUETOOTH | AMD® Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Supports Bluetooth® 5.2 |
| |
| 1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11 |
| 2. Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11. |
| |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector |
| 6x SATA 6Gb/s connectors |
| 2x M.2 slots (M-Key) |
| 1x USB 3.2 Gen 1 5Gbps Type-C port |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| 1x 4-pin CPU fan connector |
| 1x 4-pin water-pump fan connector |
| 3x 4-pin system fan connectors |
| 1x Front panel audio connector |
| 2x System panel connectors |
| 1x Chassis Intrusion connector |
| 1x 4-pin RGB LED connector |
| 2x 3-pin RAINBOW LED connectors |
| 1xTPM module connector |
| 1x Clear CMOS jumper |
| |

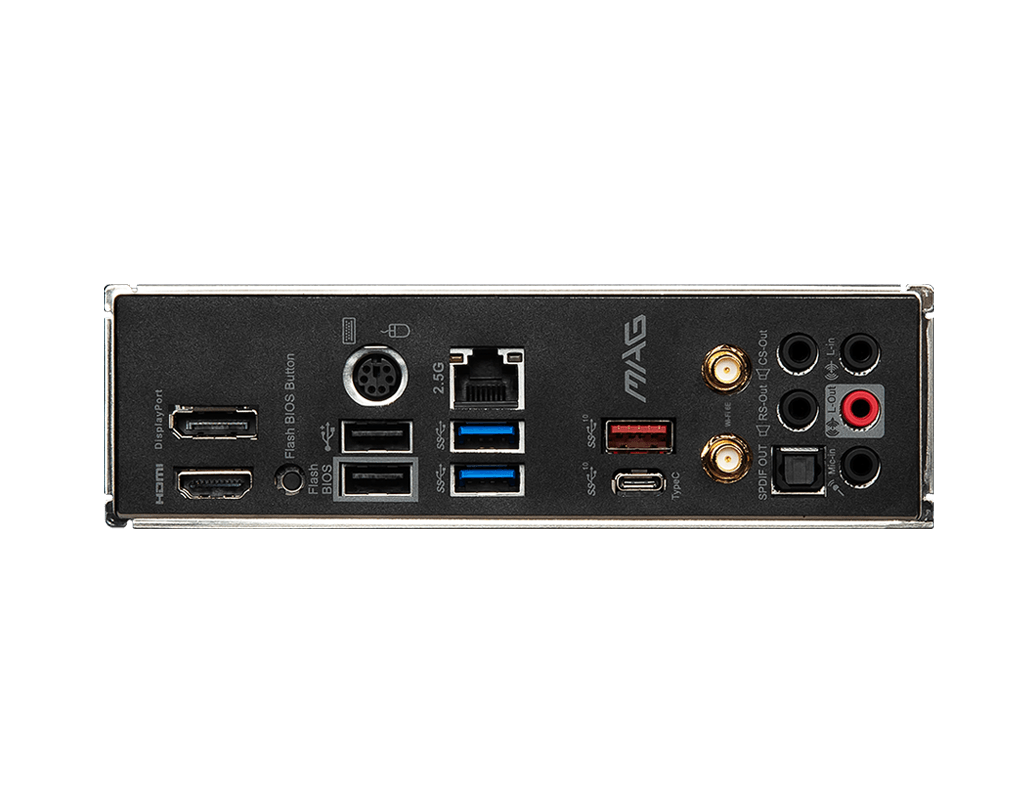

| BACK PANEL PORTS | 1. DisplayPort 1.4 |
| 2. PS/2 Combo Port |
| 3. 2.5G LAN Port |
| 4. USB 3.2 Gen 2 10Gbps Type-A |
| 5. Wi-Fi / Bluetooth Antenna |
| 6. HD Audio Connectors |
| 7. HDMI™ 2.1 Port |
| 8. Flash BIOS Button |
| 9. USB 2.0 Port |
| 10. USB 3.2 Gen 1 5Gbps Type-A |
| 11. USB 3.2 Gen 2 10Gbps Type-C |
| 12. Optical S/PDIF OUT |
| |
| DIMENSIONS | Micro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| |
| MOUNTING | 8 mounting holes |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
