Chipset | Intel B760 |
Socket | Intel LGA 1700 |
Kích thước Main | M-ATX |
Hỗ trợ CPU | LGA 1700 Support 14th, 13th and 12th Gen Series Processors |
Khe cắm RAM | 2 khe ram |
Loại RAM | DDR4 |
Bus RAM hỗ trợ | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
Card đồ họa | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
Thông số (Lan/Wireless) | |
Khe cắm trong | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
Khe cắm mở rộng | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |

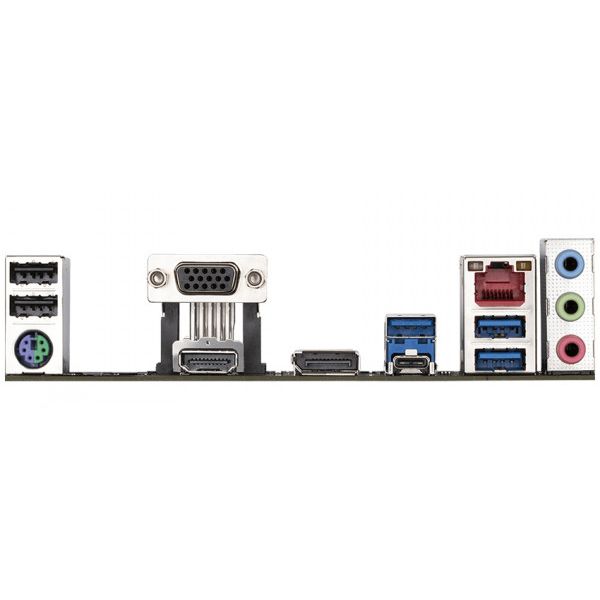

Cổng giao tiếp ngoài | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
Âm thanh | Realtek Audio CODEC |
Kích thước | 160.8 x 78.1 x 7.8 mm |
Trọng lượng sản phẩm | 203 g |
