| Thông số | Chi tiết |
| CPU | AMD Socket AM5 |
| CPU support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory support | DDR5 9600(OC)/9200(OC)/8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s |
| Memory slots | 2 x DDR5 DIMM sockets |
| Maximum memory | Up to 128 GB (64 GB single DIMM capacity) |
| Memory architecture | Dual channel |
| Non-ECC memory support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| AMD EXPO support | Supported |
| XMP support | Supported |
| Graphics processor | Integrated AMD Radeon™ Graphics |
| HDMI output | 1 x HDMI port, max resolution 4096x2160@60 Hz |
| HDMI version | HDMI 2.1 |
| HDCP support | HDCP 2.3 |
| HDR support | Supported |
| DisplayPort output | 1 x DisplayPort, max resolution 3840x2160@144 Hz |
| DisplayPort version | DisplayPort 1.4 |
| Audio codec | Realtek® Audio CODEC |
| Audio type | High Definition Audio |
| Audio channels | 2/4/5.1/7.1-channel |
| LAN chip | Realtek® 2.5GbE LAN |
| LAN speed | 2.5 Gbps / 1 Gbps / 100 Mbps |
| PCIe x16 slot | 1 x PCI Express x16 (PCIEX16) |
| PCIe mode (Ryzen 9000/7000) | PCIe 5.0 x16 |
| PCIe mode (Ryzen 8000 Phoenix 1) | PCIe 4.0 x8 |
| PCIe mode (Ryzen 8000 Phoenix 2) | PCIe 4.0 x4 |
| Secondary PCIe slot | 1 x PCI Express x16, PCIe 4.0 x4 |
| M.2 slot (M2A_CPU) | Socket 3, M key, type 2280 |
| M2A support (Ryzen 9000/7000) | PCIe 5.0 x4/x2 SSDs |
| M2A support (Ryzen 8000) | PCIe 4.0 x4/x2 SSDs |
| M.2 slot (M2B_CPU) | Socket 3, M key, type 2280 |
| M2B support (Ryzen 9000/7000) | PCIe 4.0 x4/x2 SSDs |
| M2B support (Ryzen 8000 Phoenix 2) | PCIe 4.0 x2 SSDs |
| Chipset M.2 slot | 1 x M.2 connector (M2C_SB), PCIe 4.0 x2 |
| SATA ports | 4 x SATA 6Gb/s |
| NVMe RAID support | RAID 0, 1, 5, 10 |
| RAID 5 support note | RAID 5 only available on Ryzen™ 9000 Series |
| SATA RAID support | RAID 0, 1, 10 |
| Rear USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 1 |
| Rear USB 3.2 Gen 2 Type-A | 1 port (red) |
| Rear USB 2.0/1.1 | 2 ports |
| Internal USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 1 |
| USB 3.2 Gen 1 ports | 4 ports |
| USB 2.0/1.1 ports | 5 ports |
| ATX power connector | 1 x 24-pin |
| CPU power connector | 1 x 8-pin ATX 12V |
| CPU fan header | 1 |
| CPU pump/fan header | 1 |
| System fan header | 1 |
| System pump/fan header | 1 |
| Addressable RGB headers | 3 x ARGB Gen2 |
| RGB LED header | 1 |
| Internal M.2 connectors | 3 x M.2 Socket 3 |
| Front panel header | 1 |
| Front audio header | 1 |
| USB Type-C header | 1 x USB 3.2 Gen 1 |
| USB 3.2 Gen 1 header | 1 |
| USB 2.0 headers | 2 |
| TPM header | 1 |
| Reset jumper | 1 |
| Clear CMOS jumper | 1 |
| Q-Flash Plus button | 1 |

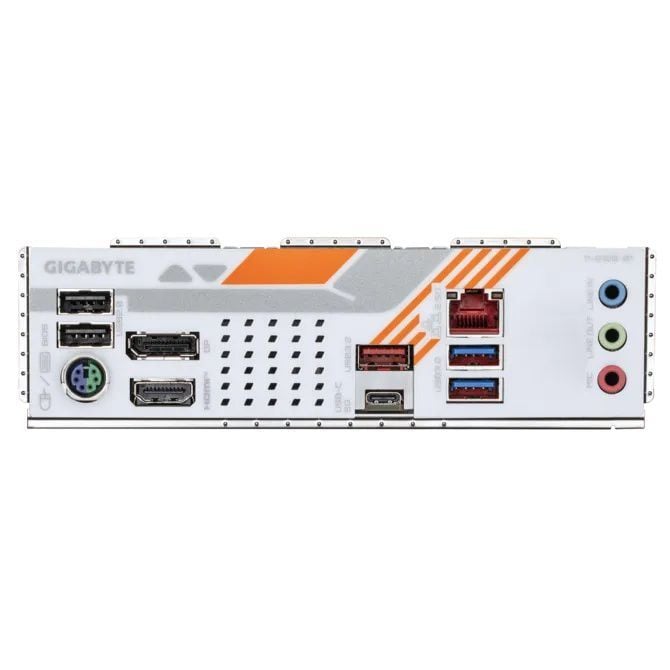

| Rear HDMI | 1 |
| Rear DisplayPort | 1 |
| PS/2 port | 1 x keyboard/mouse port |
| Rear USB Type-C | 1 |
| Rear USB 3.2 Gen 1 | 2 |
| Rear USB 3.2 Gen 2 Type-A | 1 |
| Rear USB 2.0/1.1 | 2 |
| RJ-45 LAN port | 1 |
| Audio jacks | 3 |
| I/O controller | iTE® I/O Controller Chip |
| Voltage detection | Supported |
| Temperature detection | Supported |
| Fan speed detection | Supported |
| Water cooling flow detection | Supported |
| Fan fail warning | Supported |
| Fan speed control | Supported |
| BIOS flash | 1 x 256 Mbit flash |
| BIOS type | Licensed AMI UEFI BIOS |
| BIOS standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| GCC support | GIGABYTE Control Center supported |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Smart Backup | Supported |
| Antivirus software | Norton® Internet Security (OEM version) |
| OS support | Windows 11 64-bit |
| OS support | Windows 10 64-bit |
| Form factor | Micro ATX |
| Dimensions | 24.4cm x 24.4cm |
