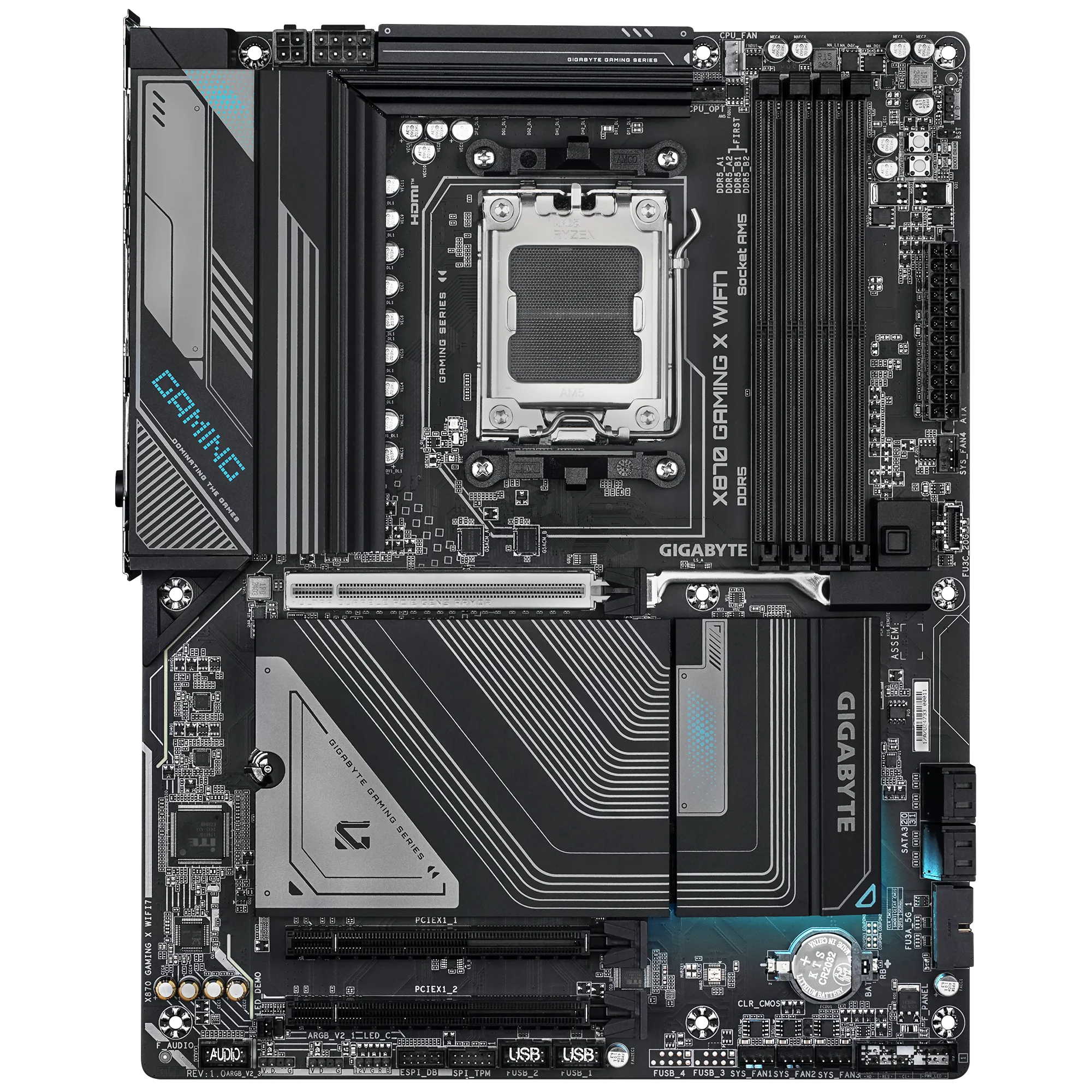

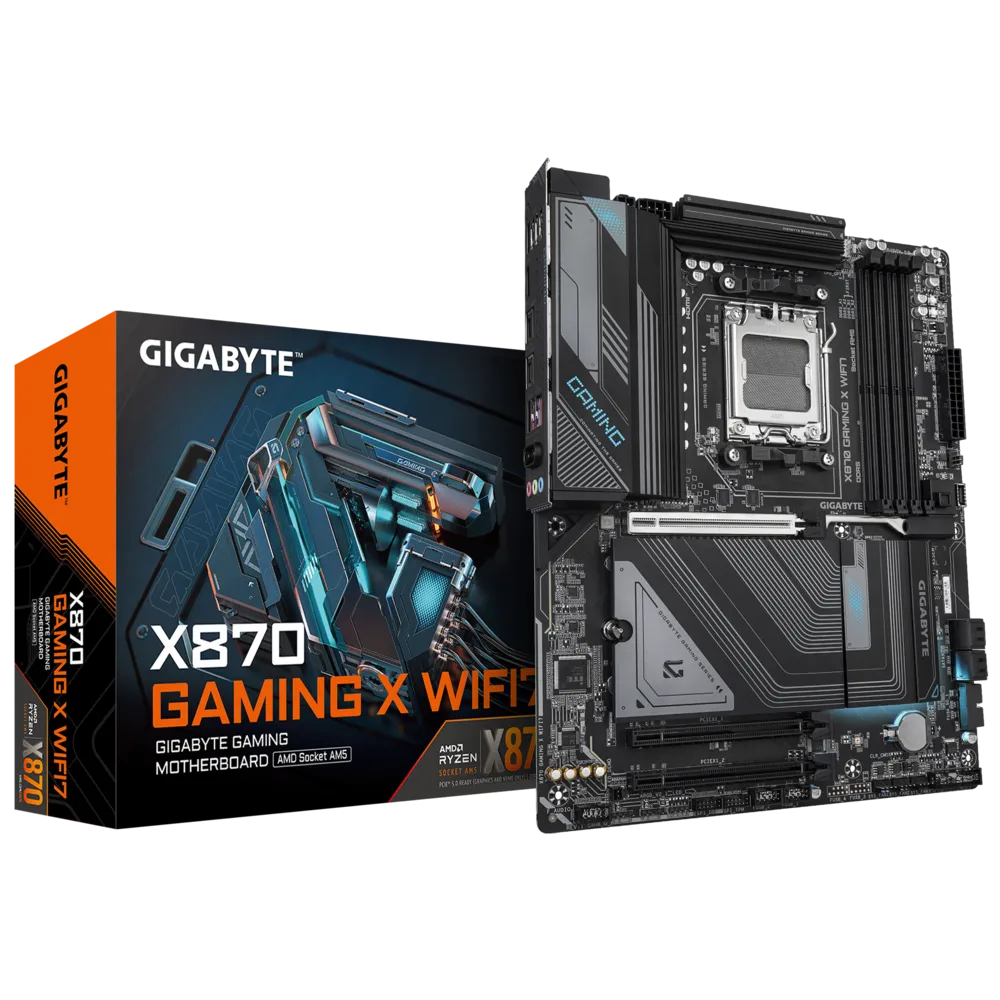

| Sản phẩm | Mainboard Gigabyte X870 GAMING X WIFI 7 |
| Thương hiệu | Gigabyte |
| Model | X870 GAMING X WIFI7 |
Hỗ trợ Socket | AMD Socket AM5, support for: |
AMD Ryzen™ 9000 Series Processors/ |
AMD Ryzen™ 8000 Series Processors/ |
AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD X870 |
| Hỗ trợ bộ nhớ | 4 x DIMM slots, Max. 256GB, DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
Khe mở rộng | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
Srorage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs |
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Mạng Ethernet | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Bluetooth, không dây | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) |
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
– BLUETOOTH 5.4 |
– Support for 11be 160MHz wireless standard |
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) |
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
– BLUETOOTH 5.4 |
– Support for 11be 160MHz wireless standard |
USB | CPU+ASMedia USB4® controller: |
– 2 x USB4® USB Type-C® ports on the back panel |
| CPU: |
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
– 1 x USB 3.2 Gen 1 port on the back panel |
CPU+USB 2.0 Hub: |
– 4 x USB 2.0/1.1 ports on the back panel |
| Chipset: |
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
– 4 x USB 2.0/1.1 ports available through the internal USB headers |
Âm thanh | Realtek® Audio CODEC |
High Definition Audio |
2/4/5.1/7.1-channel |

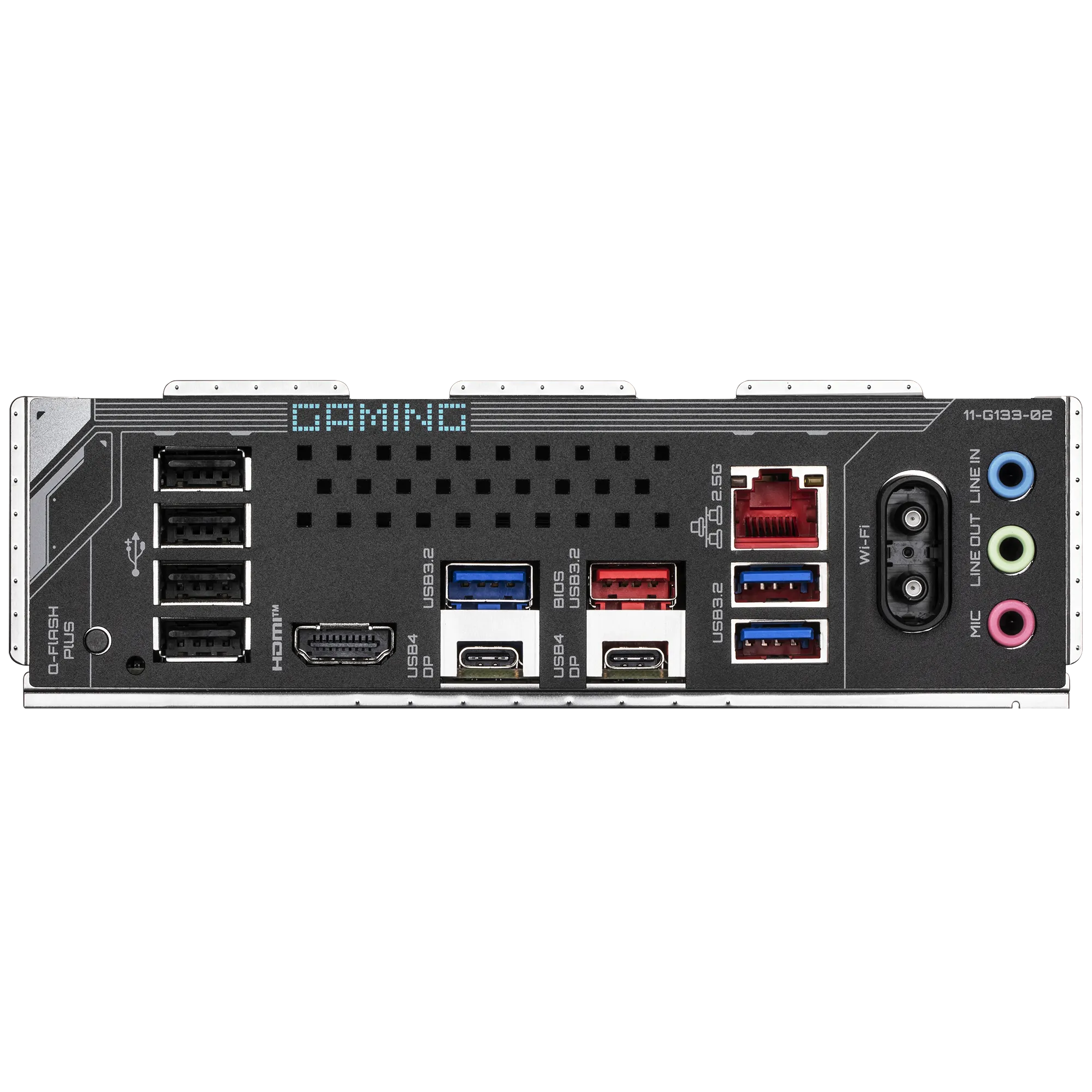

Cổng I/O mặt sau | 1 x Q-Flash Plus button |
2 x antenna connectors (2T2R) |
1 x HDMI port(Note) |
2 x USB4® USB Type-C® ports (DisplayPort*) |
1 x USB 3.2 Gen 2 Type-A port (red) |
3 x USB 3.2 Gen 1 ports |
4 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 3 x audio jacks |
Đầu nối I/O bên trong | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector |
1 x 4-pin ATX 12V power connector |
1 x CPU fan header |
1 x CPU fan/water cooling pump header |
4 x system fan headers |
3 x addressable RGB Gen2 LED strip headers |
1 x RGB LED strip header |
4 x SATA 6Gb/s connectors |
3 x M.2 Socket 3 connectors |
1 x front panel header |
1 x front panel audio header |
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
1 x USB 3.2 Gen 1 header |
2 x USB 2.0/1.1 headers |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
1 x power button |
1 x reset button |
1 x reset jumper |
1 x Clear CMOS jumper |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Hệ điều hành | Windows® 11 , Windows® 10 64-bit |
| Yếu tố hình thức | ATX Form Factor; 30.5cm x 24.4cm |
