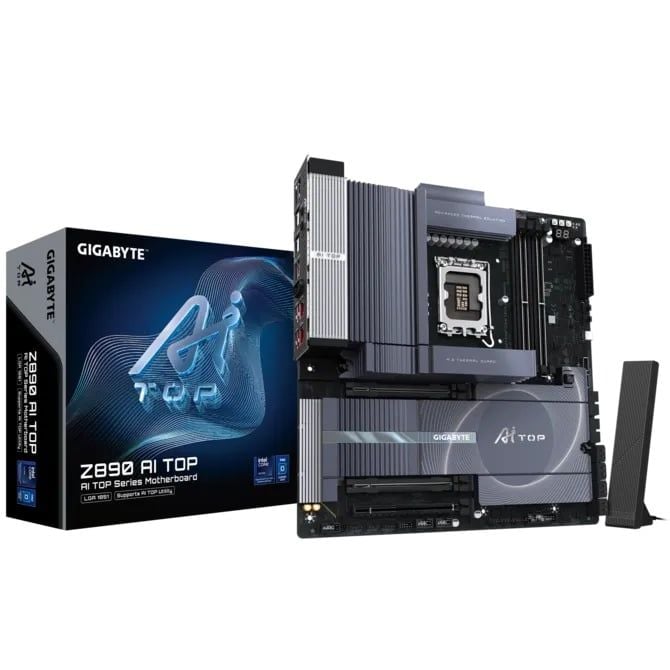

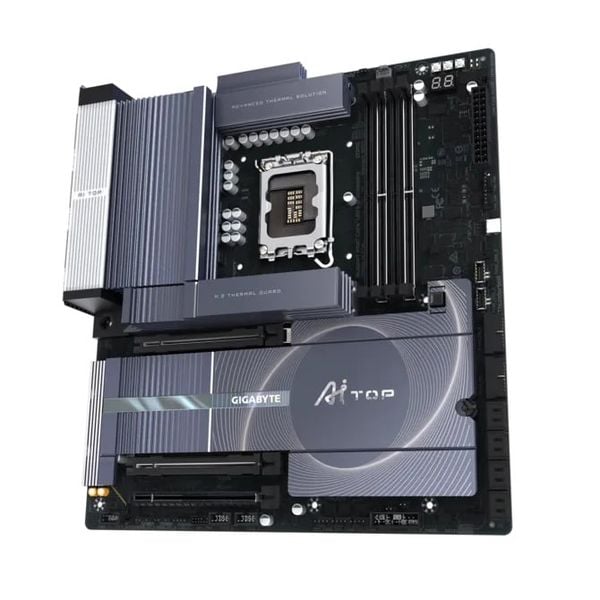

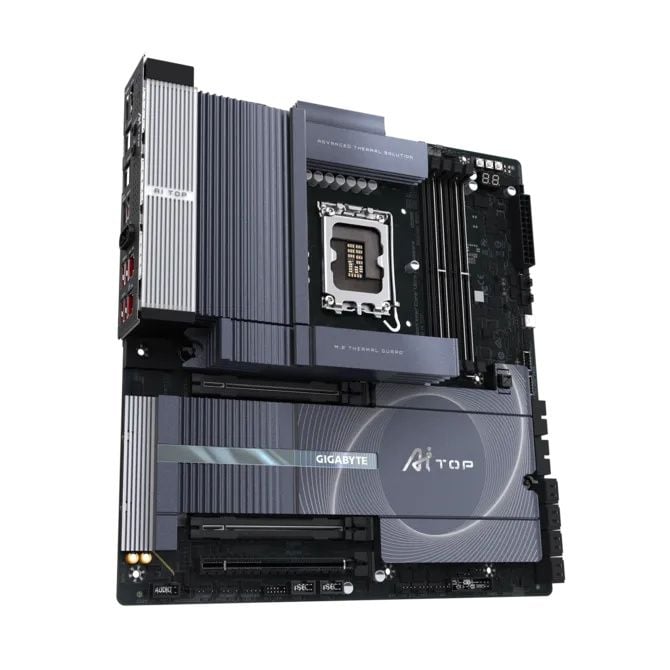

Chi tiết thông số kỹ thuật Mainboard Gigabyte Z890 AI TOP
| Thông số | Chi tiết |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache | Varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory support |
DDR5 9500(O.C)/9466(O.C)/9333(O.C)/9200(O.C)/9066(O.C)/8933(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400/6200/6000/5800/5600 MT/s
|
| Memory slots | 4 x DDR5 DIMM sockets |
| Maximum memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory architecture | Dual channel |
| ECC memory support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC memory support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP support | Supported |
| CUDIMM support | Supported |
| Thunderbolt 5 video outputs |
2 x Intel® Thunderbolt™ 5 (USB4® Type-C®), max 7680x4320@60 Hz
|
| Thunderbolt display support | DisplayPort 2.1 and HDCP 2.3 |
| Front Thunderbolt 4 connector | 1 x Intel® Thunderbolt™ 4 (USB4® Type-C®) |
| Thunderbolt monitor resolution | Up to 5120x2880@60 Hz |
| USB4 monitor resolution | Up to 3840x2160@240 Hz |
| HDMI output | 1 x HDMI port, max 4096x2160@60 Hz |
| HDMI version | HDMI 2.1 |
| Audio codec (rear) | ESS ES9260 CODEC |
| Audio channels (rear) | 2-channel HD Audio |
| Audio codec (front) | Realtek® ALC897 CODEC |
| LAN chips | 2 x Marvell® AQtion AQC113C 10GbE |
| LAN speed | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |
| Wi-Fi module | Intel® Wi-Fi 7 BE200 |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax/be |
| Wi-Fi bands | 2.4/5/6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi 7 bandwidth | 11be 320MHz |
| PCIe 5.0 x16 slot | 1 x PCI Express x16, PCIe 5.0, running at x16 |
| PCIe 5.0 x8 slot | 1 x PCI Express x16, PCIe 5.0, running at x8 |
| PCIe 4.0 x4 slot | 1 x PCI Express x16, PCIe 4.0, running at x4 |
| CPU PCIe 5.0 M.2 slot | 1 x M.2 Socket 3, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 |
| CPU PCIe 4.0 M.2 slot | 1 x M.2 Socket 3, type 25110/22110/2580/2280, PCIe 4.0 x4/x2 |
| Chipset M.2 slots | 2 x M.2 Socket 3, type 22110/2280, PCIe 4.0 x4/x2 |
| SATA ports | 8 x SATA 6Gb/s |
| NVMe RAID support | RAID 0, 1, 5, 10 |
| SATA RAID support | RAID 0, 1, 5, 10 |
| Rear Thunderbolt 5 ports | 2 x USB Type-C®, up to 80Gbps |
| USB4 speed | Up to 40Gbps |
| USB 3.2 speed | Up to 20Gbps |
| Onboard USB4 Type-C | 1 |
| Internal USB Type-C Gen 2x2 | 2 headers |
| Rear USB 3.2 Gen 2 Type-A | 6 ports (red) |
| Rear USB 3.2 Gen 1 | 2 ports |
| Internal USB 3.2 Gen 1 | 4 ports |
| Internal USB 2.0/1.1 | 4 ports |
| ATX power connector | 1 x 24-pin |
| CPU power connectors | 2 x 8-pin ATX 12V |
| CPU fan header | 1 |
| CPU pump header | 1 |
| System fan headers | 4 |
| System pump headers | 2 |
| Addressable RGB headers | 3 x ARGB Gen2 |
| RGB LED headers | 1 |
| Internal M.2 connectors | 4 x M.2 Socket 3 |
| Front panel header | 1 |
| Front audio header | 1 |
| Front Thunderbolt 4 connector | 1 |
| USB 3.2 Gen 1 headers | 2 |
| USB 2.0 headers | 2 |
| TPM header | 1 |
| Power button | 1 |
| Reset button | 1 |
| Q-Flash Plus button | 1 |
| Reset jumper | 1 |
| Clear CMOS jumper | 1 |
| Temperature sensor headers | 2 |
| Noise detection header | 1 |

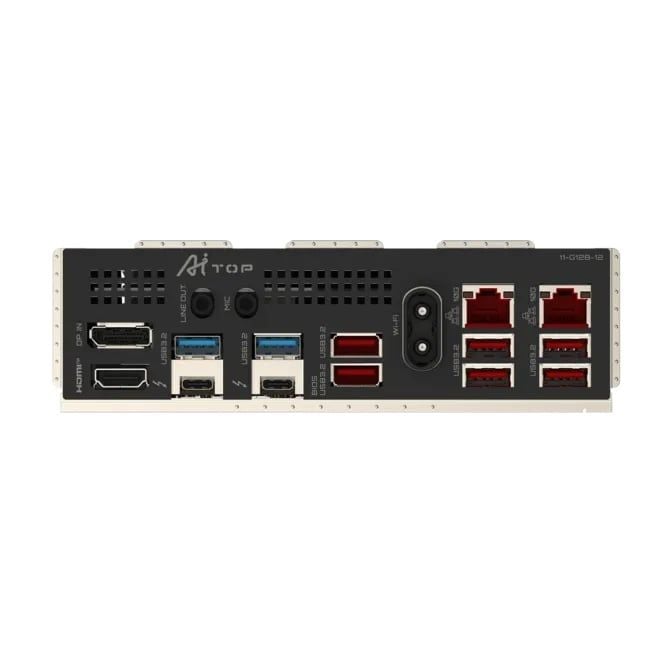

| Rear DisplayPort In | 1 |
| Rear HDMI | 1 |
| Rear audio jacks | 2 |
| Rear Thunderbolt 5 | 2 x USB Type-C® |
| Rear USB 3.2 Gen 1 | 2 |
| Rear USB 3.2 Gen 2 Type-A | 6 |
| Antenna connectors | 2 x 2T2R |
| RJ-45 LAN ports | 2 |
| I/O controller | iTE® I/O Controller Chip |
| Voltage detection | Supported |
| Temperature detection | Supported |
| Fan speed detection | Supported |
| Water cooling flow detection | Supported |
| Fan fail warning | Supported |
| Fan speed control | Supported |
| Noise detection | Supported |
| BIOS flash | 1 x 256 Mbit flash |
| BIOS type | Licensed AMI UEFI BIOS |
| BIOS standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| GCC support | GIGABYTE Control Center supported |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Smart Backup | Supported |
| Antivirus software | Norton® Internet Security (OEM version) |
| LAN software | LAN bandwidth management software |
| OS support | Windows 11 64-bit |
| Form factor | E-ATX |
| Dimensions | 30.5cm x 28.5cm |
