Mô tả sản phẩm

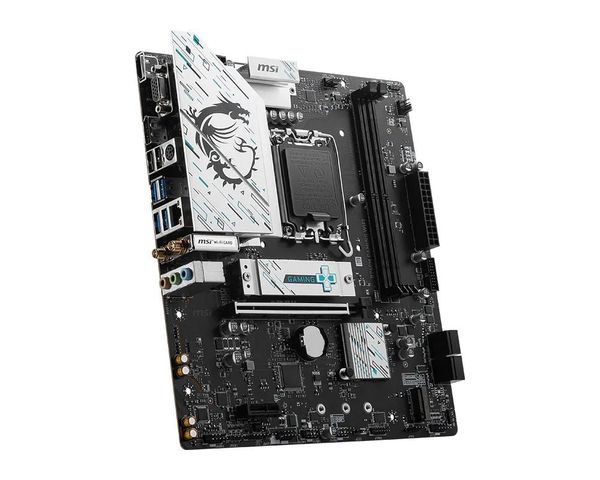

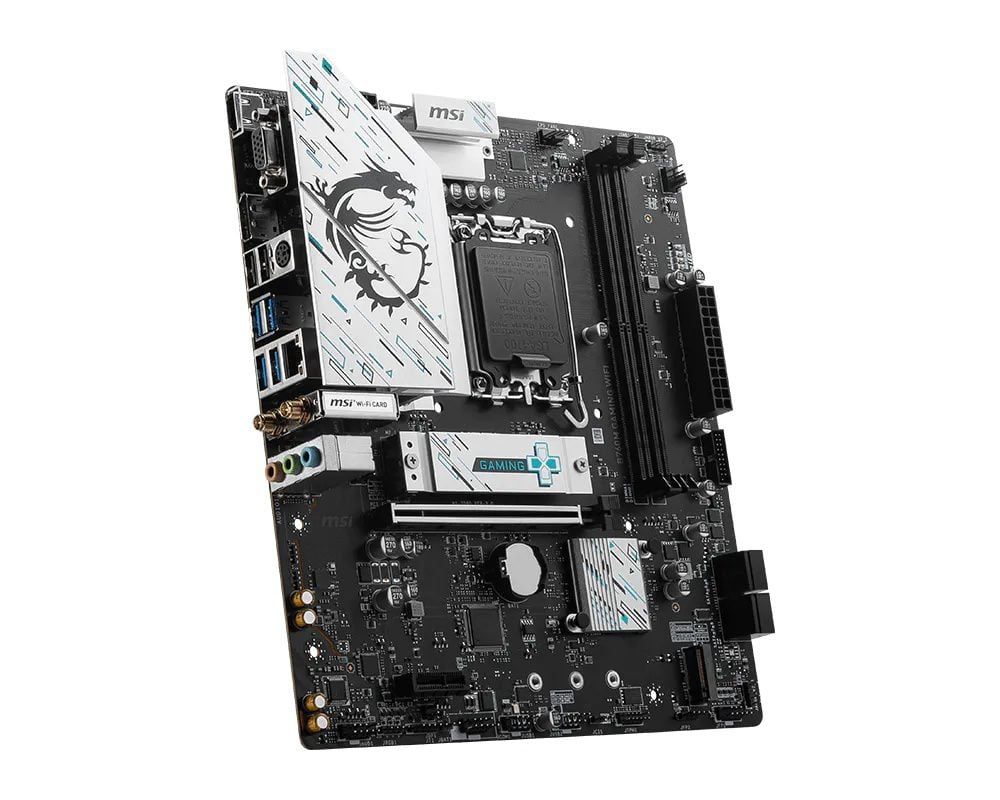

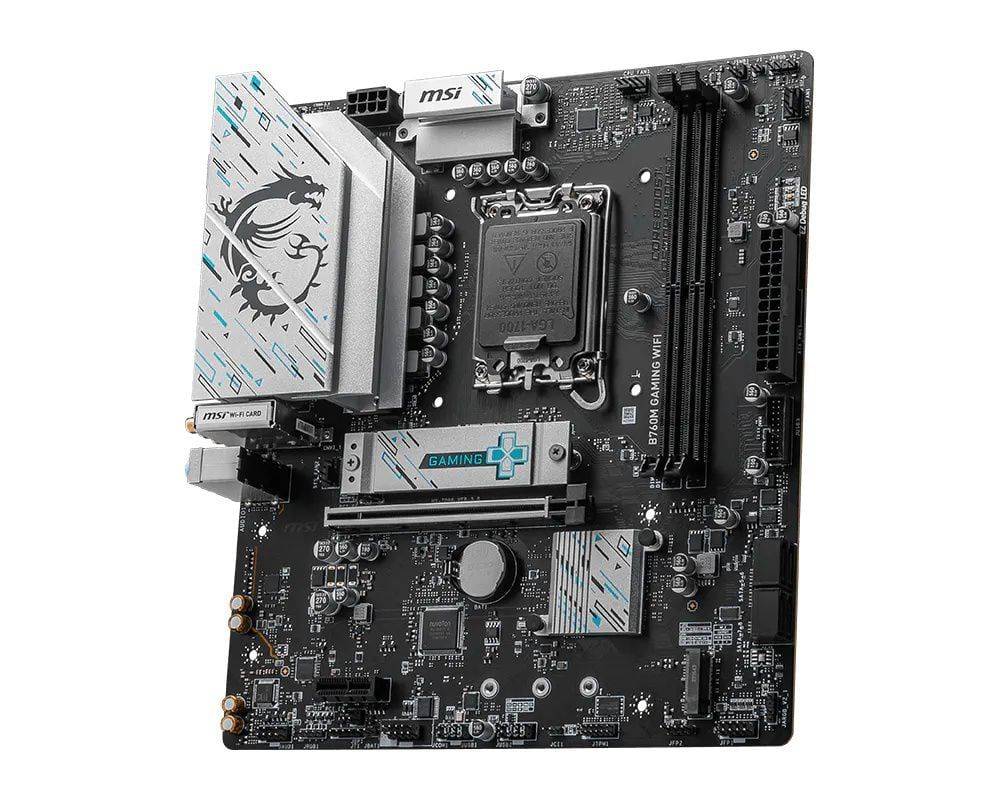

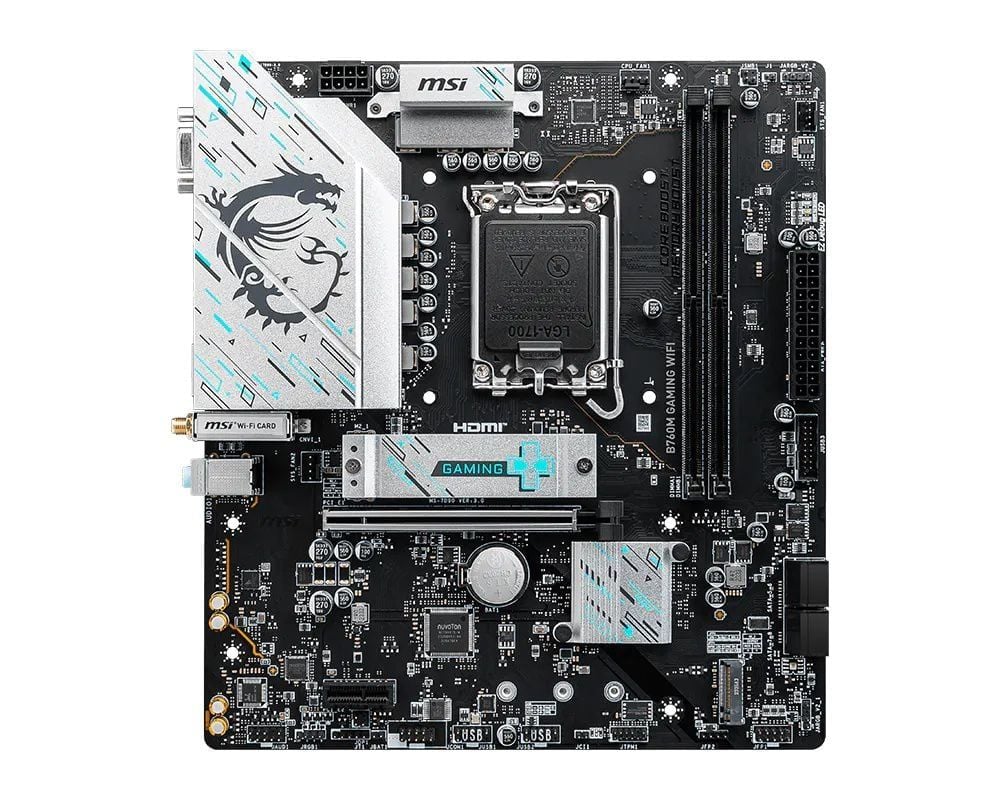

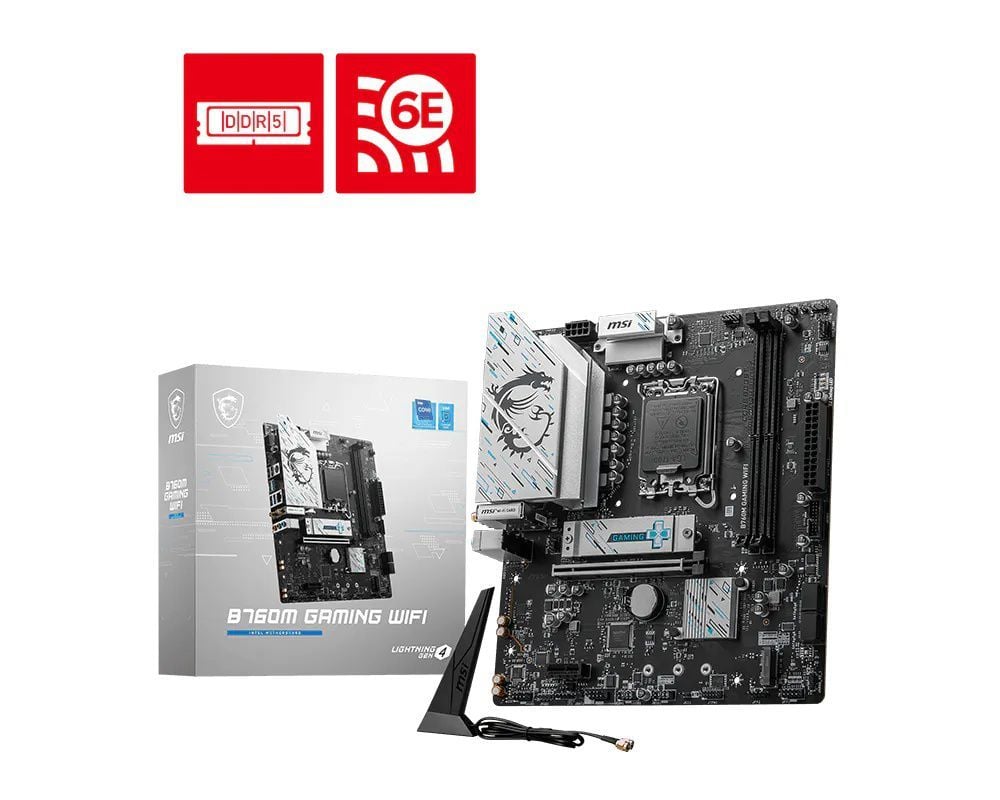

Mainboard MSI B760M Gaming Wifi
| Thuộc tính | Thông tin |
| Chipset | Intel B760 |
| CPU | Support Intel Core 14th / 13th / 12th Gen, Intel Pentium Gold, Intel Celeron |
| Socket | LGA 1700 |
| Memory Slot | 2 x DDR5 |
| Memory Max | 128GB |
| Memory Speed | DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) |
| Memory OC | 1DPC 1R up to 8000+ MHz / 1DPC 2R up to 6400+ MHz |
| Memory Feature | Intel XMP 3.0 / Dual-Controller Dual-Channel / Non-ECC Unbuffered |
| Graphics Output | HDMI / DisplayPort / VGA |
| HDMI | HDMI 2.1 HDR, Max 4K 60Hz |
| DisplayPort | DP 1.4, Max 4K 60Hz |
| VGA Resolution | 2048×1536 50Hz / 2048×1280 60Hz / 1920×1200 60Hz |
| PCIe Slot | 1 x PCIe x16, 1 x PCIe x1 |
| PCIe Version | PCI_E1 PCIe 4.0 (From CPU) / PCI_E2 PCIe 4.0 (From Chipset) |
| Audio | Realtek ALC897, 7.1 Channel HD Audio, S/PDIF |
| M.2 Slot | 2 x M.2 |
| M.2_1 | PCIe 4.0 x4 (From CPU), support 2280 / 2260 / 2242 |
| M.2_2 | PCIe 4.0 x4 / SATA (From Chipset), support 2280 / 2260 / 2242 |
| SATA | 4 x SATA 6Gb/s |
| RAID | RAID 0 / RAID 1 / RAID 5 / RAID 10 |
| USB Rear | 2 x USB 2.0, 4 x USB 5Gbps Type-A |
| USB Front | 4 x USB 2.0, 2 x USB 5Gbps Type-A |
| LAN | Realtek RTL8125B 2.5Gbps |
| Wireless | Intel Wi-Fi 6E, M.2 Key-E, MU-MIMO, 2.4GHz / 5GHz / 6GHz up to 2.4Gbps |
| WiFi Standard | 802.11 a / b / g / n / ac / ax |
| Bluetooth | Bluetooth 5.3 |
| Internal Connector | ATX_PWR / CPU_PWR / CPU Fan / 2 x System Fan / 2 x Front Panel / Chassis Intrusion / Front Audio / COM Port |
| RGB Header | 2 x Addressable RGB V2 / 1 x RGB LED |
| TPM | TPM 2.0 Header |
| Internal USB | 4 x USB 2.0 / 2 x USB 5Gbps |
| LED Feature | 4 x EZ Debug LED |

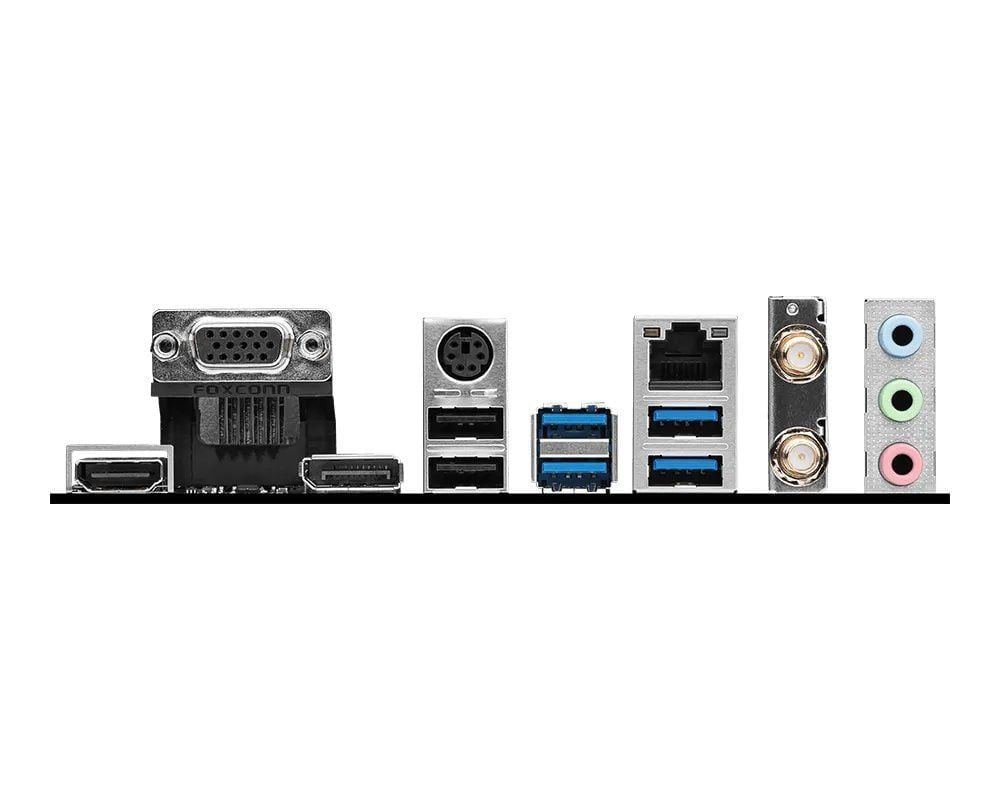

| Back Panel | VGA / PS2 Keyboard-Mouse / 2.5G LAN / WiFi-Bluetooth / Audio / HDMI / DisplayPort / USB 2.0 / USB 3.2 Gen1 |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | mATX |
| Kích thước | 220mm x 243.84mm |
Thông số kỹ thuật
