Mô tả sản phẩm

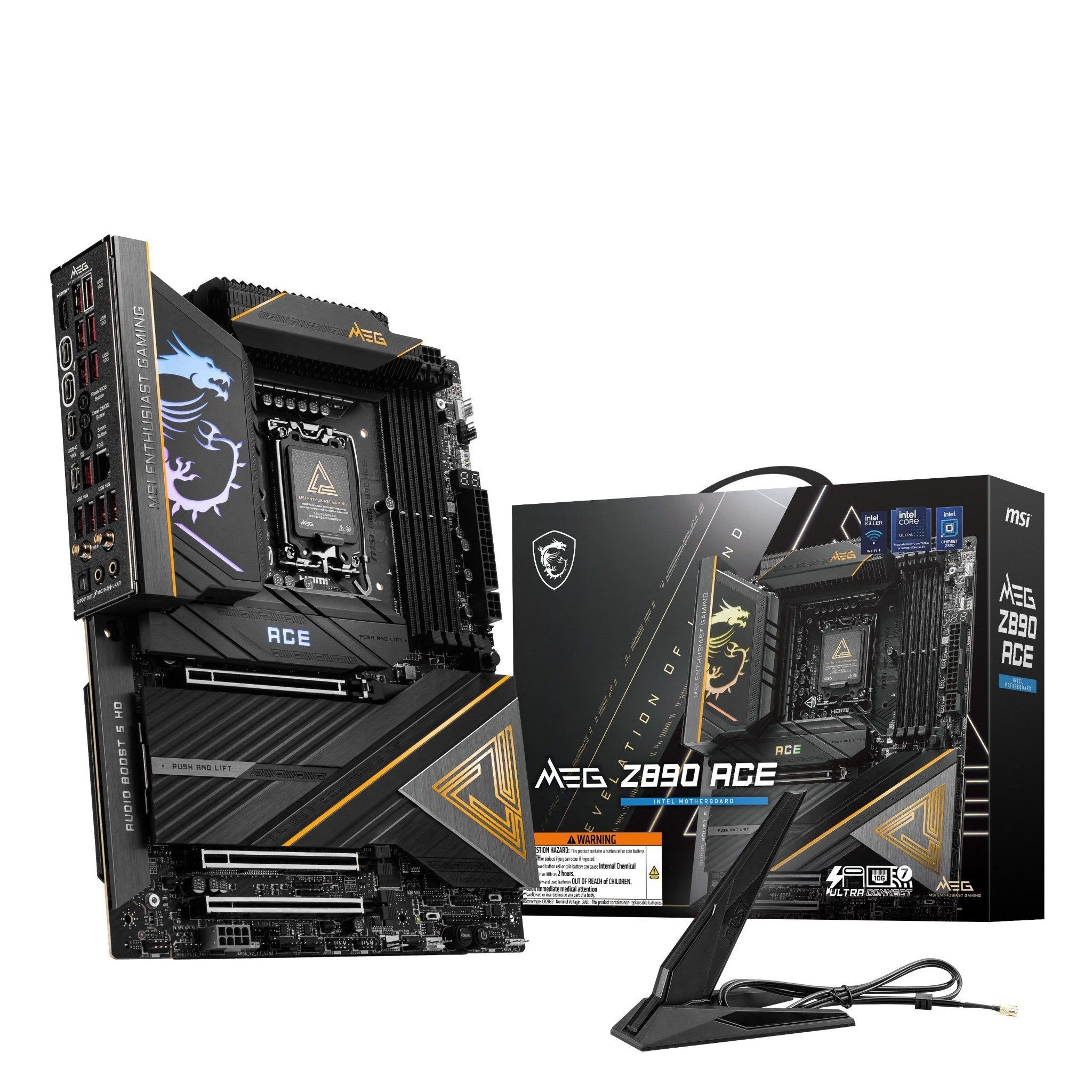

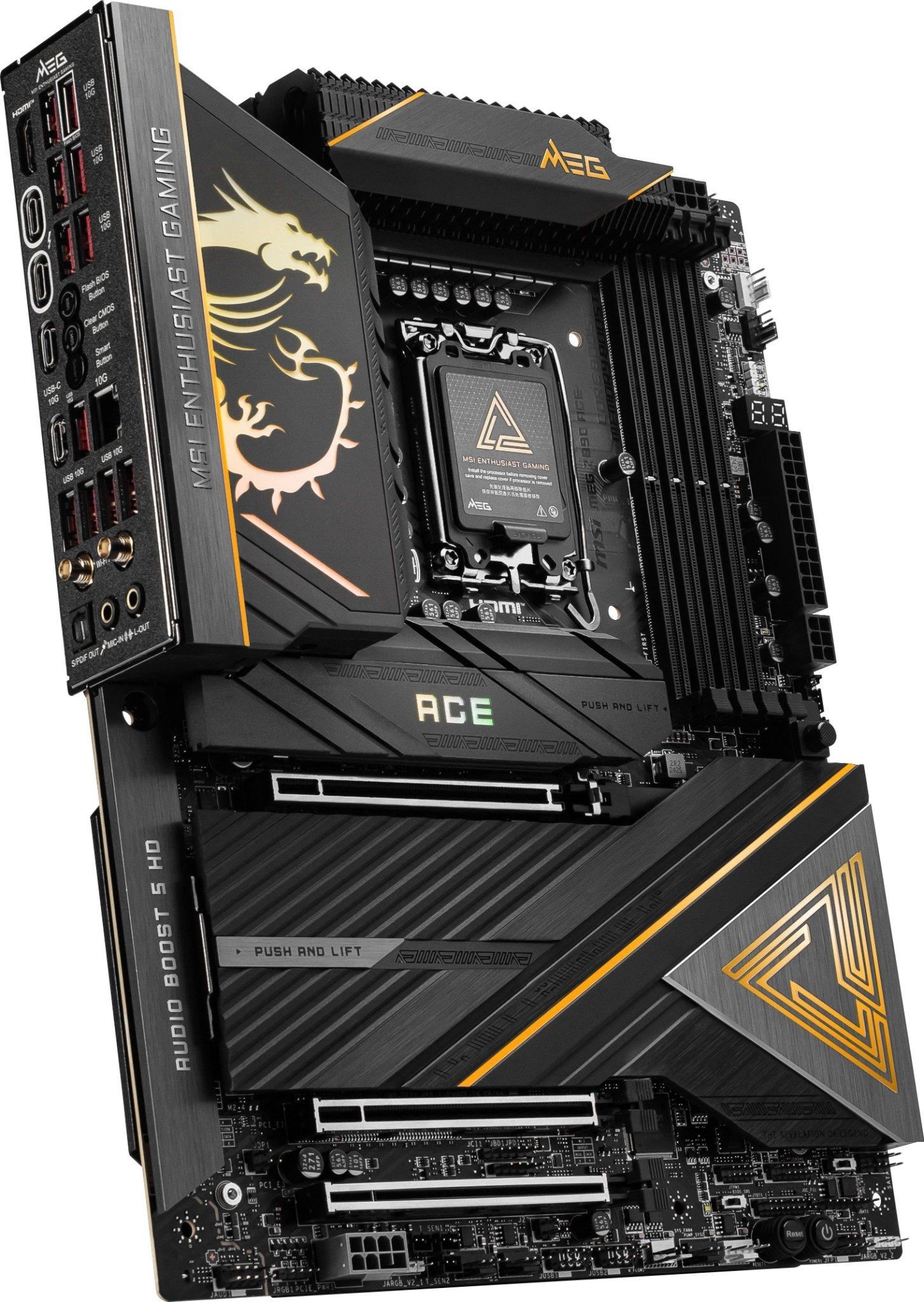

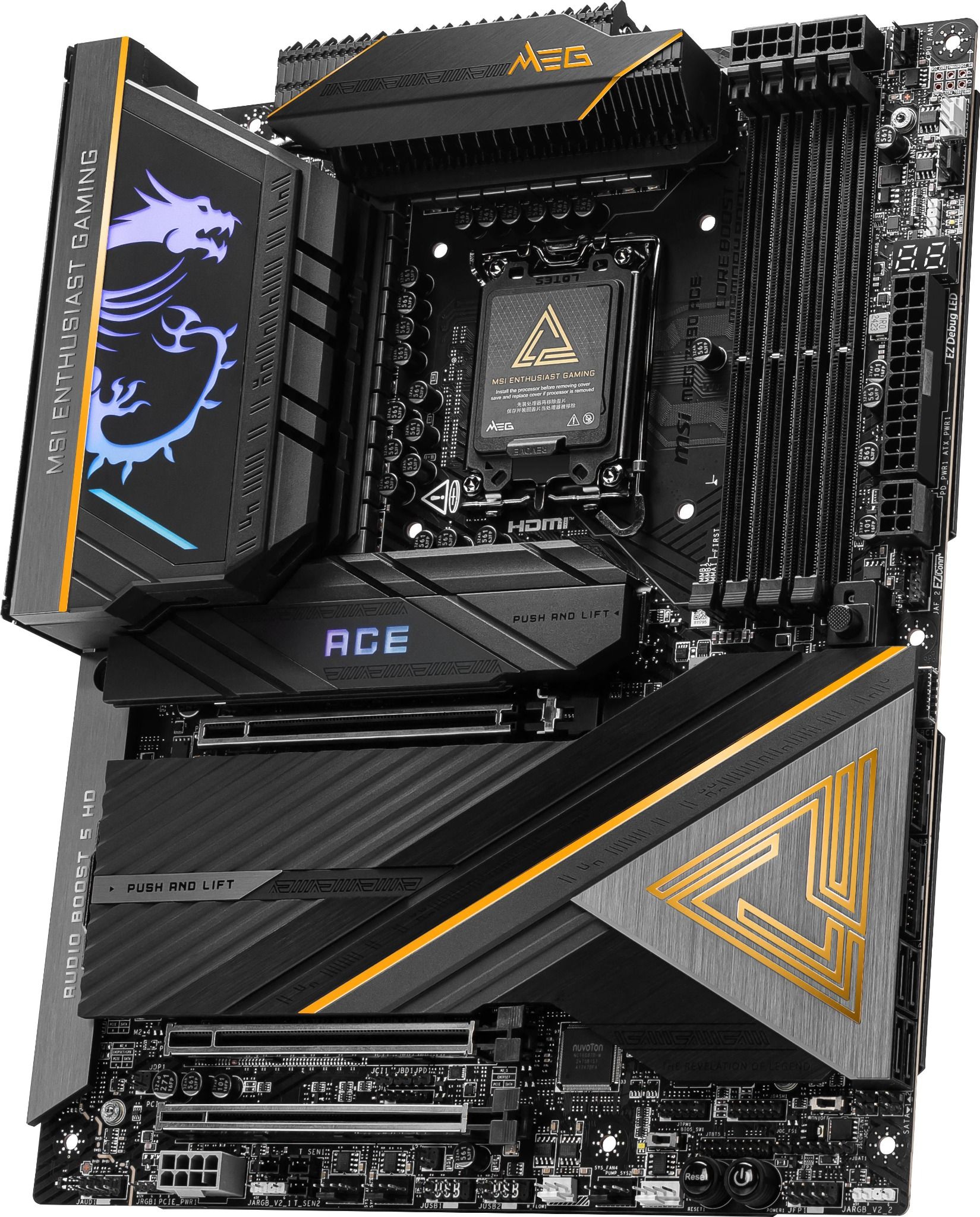

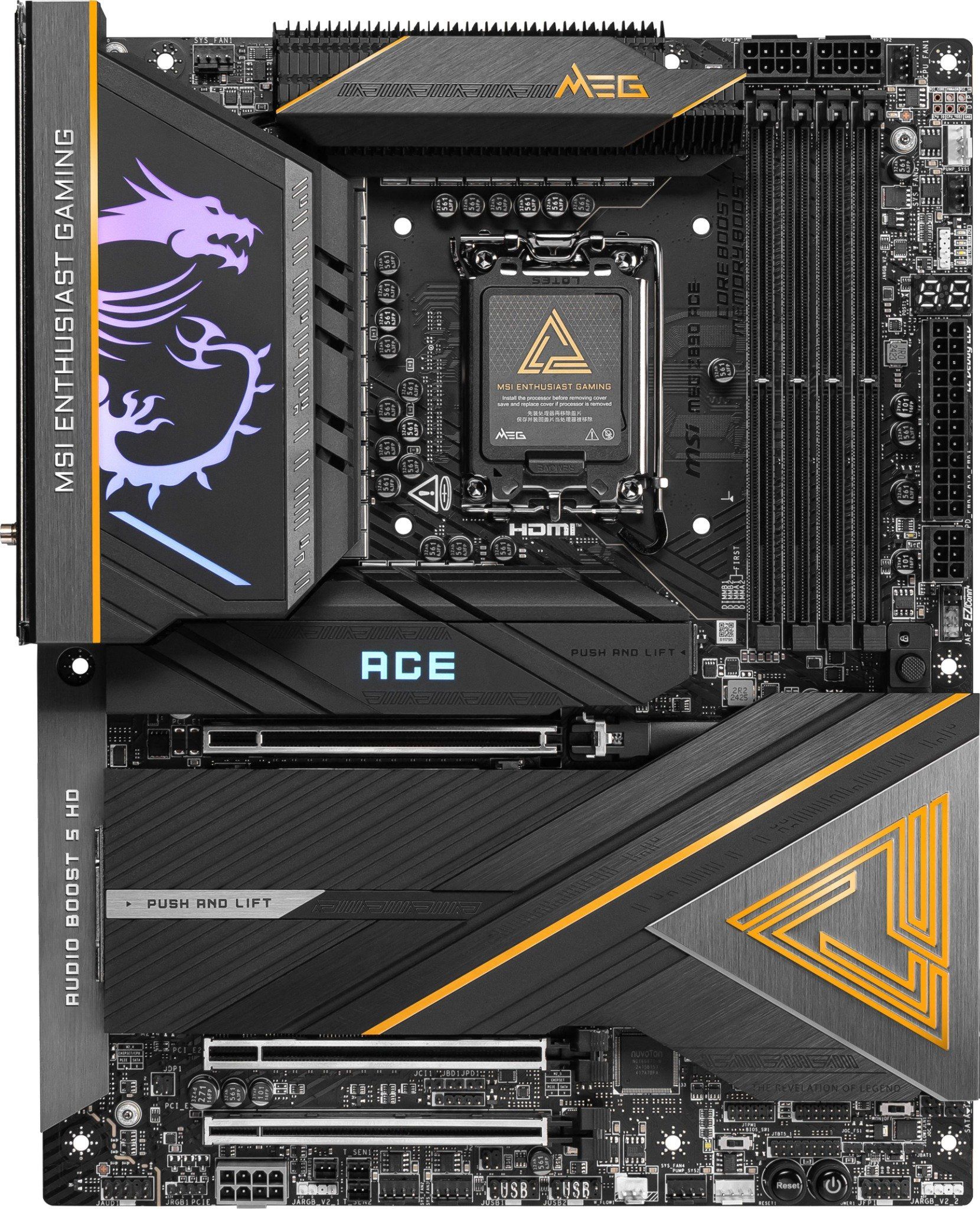

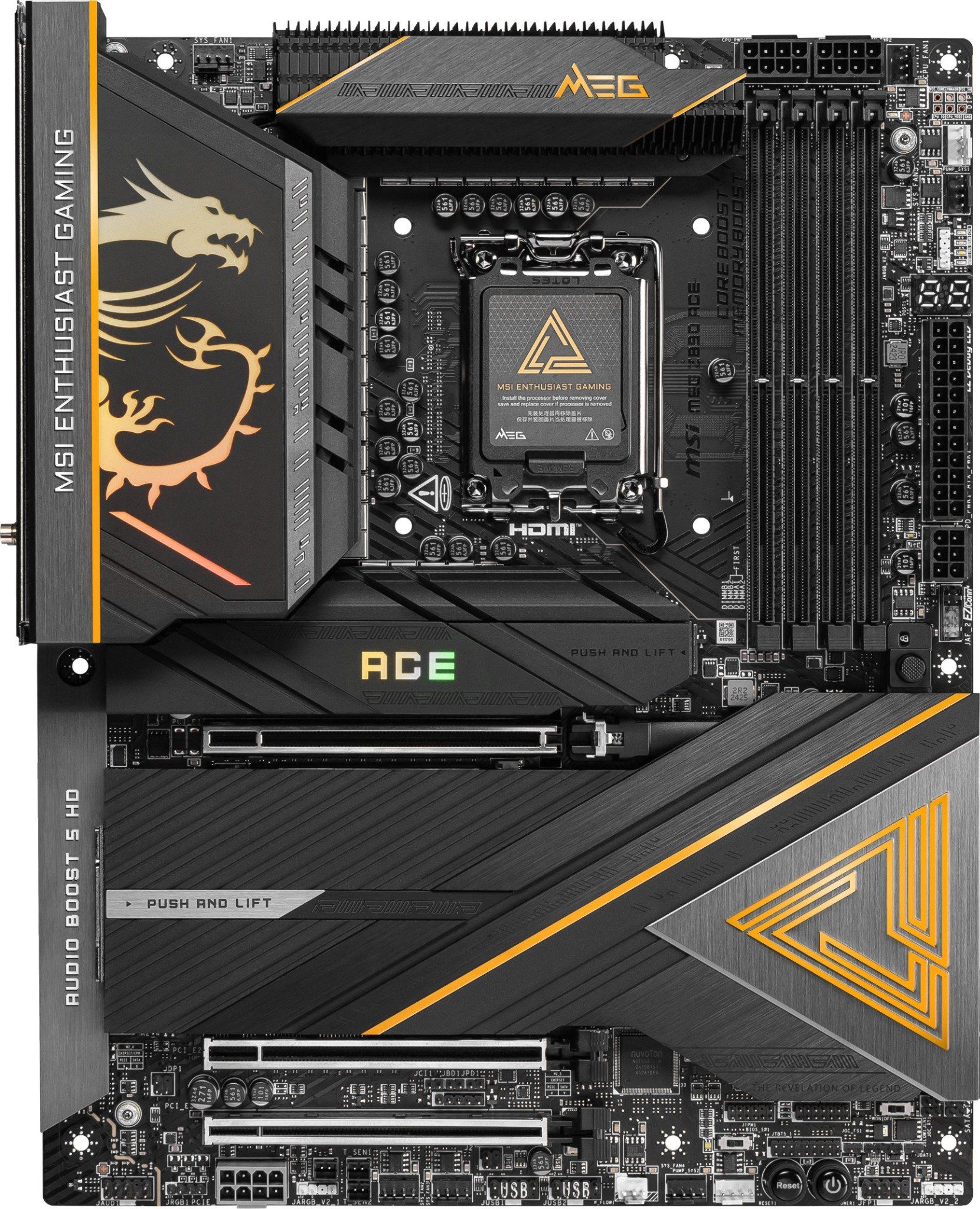

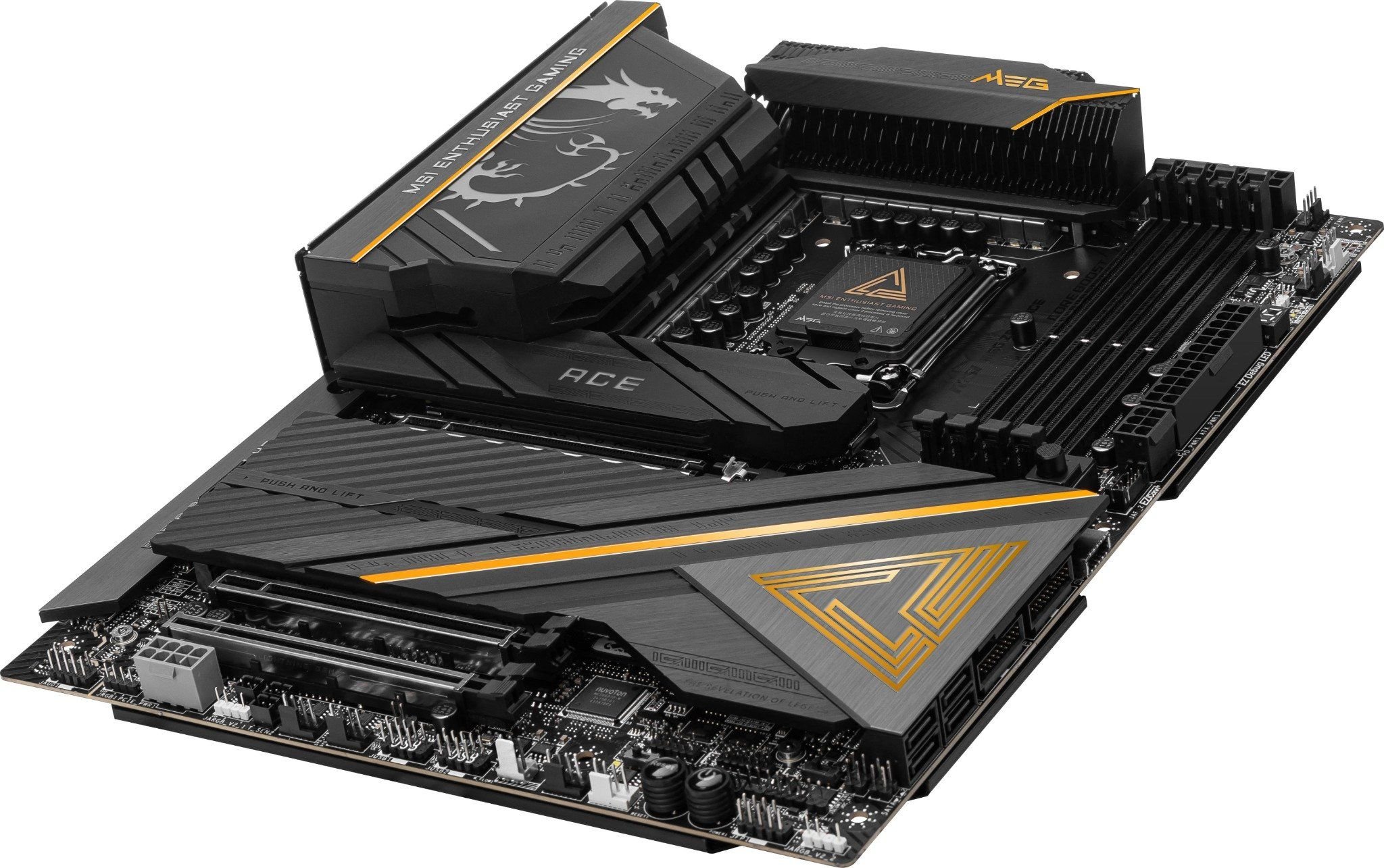

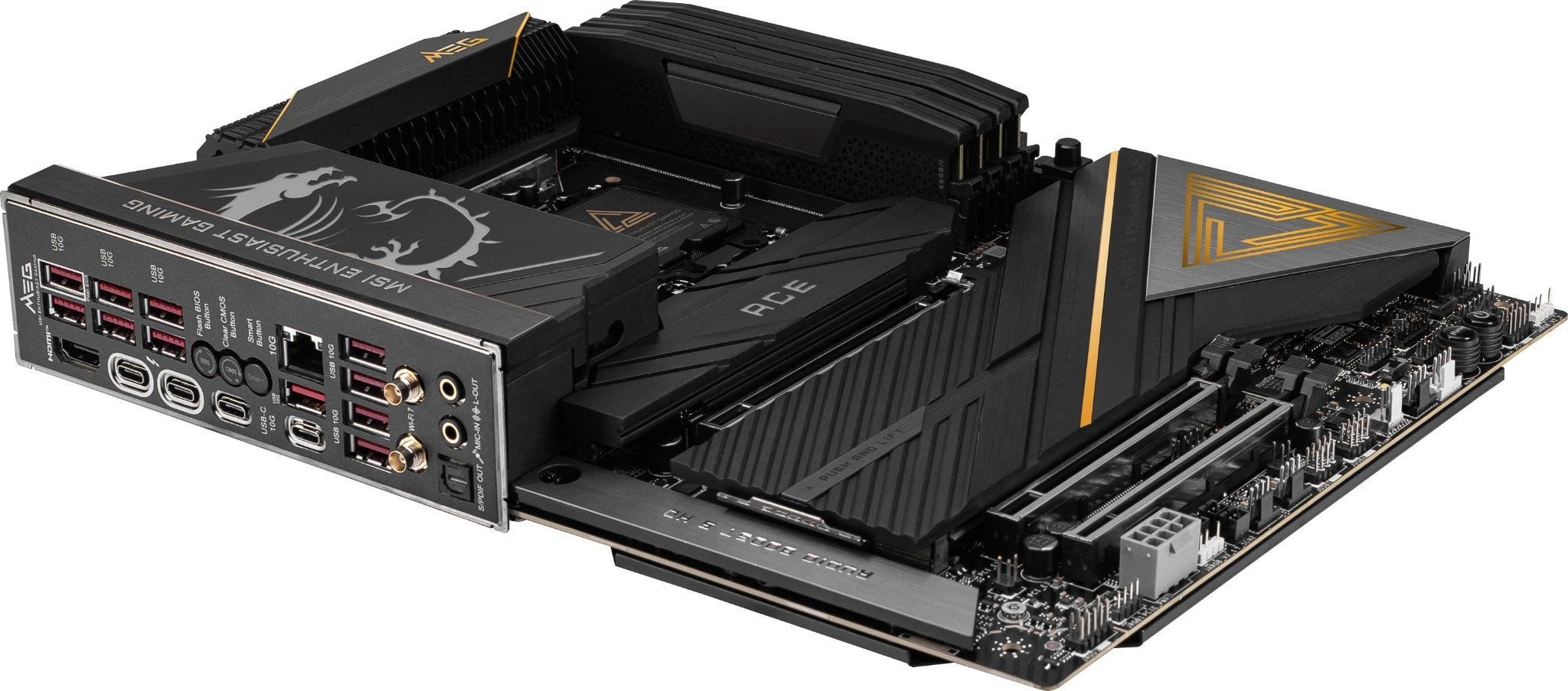

Mainboard MSI MEG Z890 Ace

MSI MEG Z890 ACE với socket Intel LGA 1851 có thể chứa bộ xử lý Intel Core Ultra Arrow Lake-S được tối ưu hóa cho AI. Với khả năng kết nối tiên tiến, chẳng hạn như Thunderbolt 4 , MEG Z890 ACE của MSI cũng cung cấp hai khe cắm PCI-Express 5.0 x16 và một khe cắm M.2 PCIe 5.0 x4 để chứa các thành phần nhanh nhất nhằm đáp ứng những game thủ khó tính nhất. Khi nói đến kết nối mạng, không có gì thiếu sót, vì có sẵn đầu nối LAN 10 Gbps ngoài khả năng kết nối không dây hàng đầu với Wi-Fi 7 và Bluetooth 5.4.

MSI MEG Z890 ACE

  • Hỗ trợ bộ xử lý Intel Core Ultra Arrow-Lake-S trên socket LGA 1851
  • Hỗ trợ bộ nhớ DDR5
  • 1 khe cắm M.2 PCIe 5.0 x4 + 4 khe cắm M.2 PCIe 4.0 4x + 4 cổng SATA 6 Gbps
  • 2 cổng PCI-Express 5.0 16x (16x/8x)
  • Audio Boost 5 HD cho chất lượng âm thanh vượt trội
  • 2 cổng Thunderbolt 4 (USB-C) 40 Gbps tương thích với 8K @ 60Hz và cung cấp công suất 15W.
  • Mạng LAN 10 GbE
  • Wi-Fi 7/Bluetooth 5.4
  •

Điểm nổi bật

  • Nguồn điện 24+1+2+1 DRPS 110A SPS
  • Thiết kế Frozr: ống dẫn nhiệt tiếp xúc trực tiếp để tản nhiệt tối ưu
  • Bộ tản nhiệt cho ổ SSD M.2 để có hiệu suất tối ưu.
  • Tháo lắp EZ PCIe: Nhấn nút để tháo/lắp card đồ họa mà không cần tốn nhiều công sức.
  • EZ M.2 Shield Frozr II : dễ dàng lắp đặt và tháo ổ SSD M.2 NVMe.

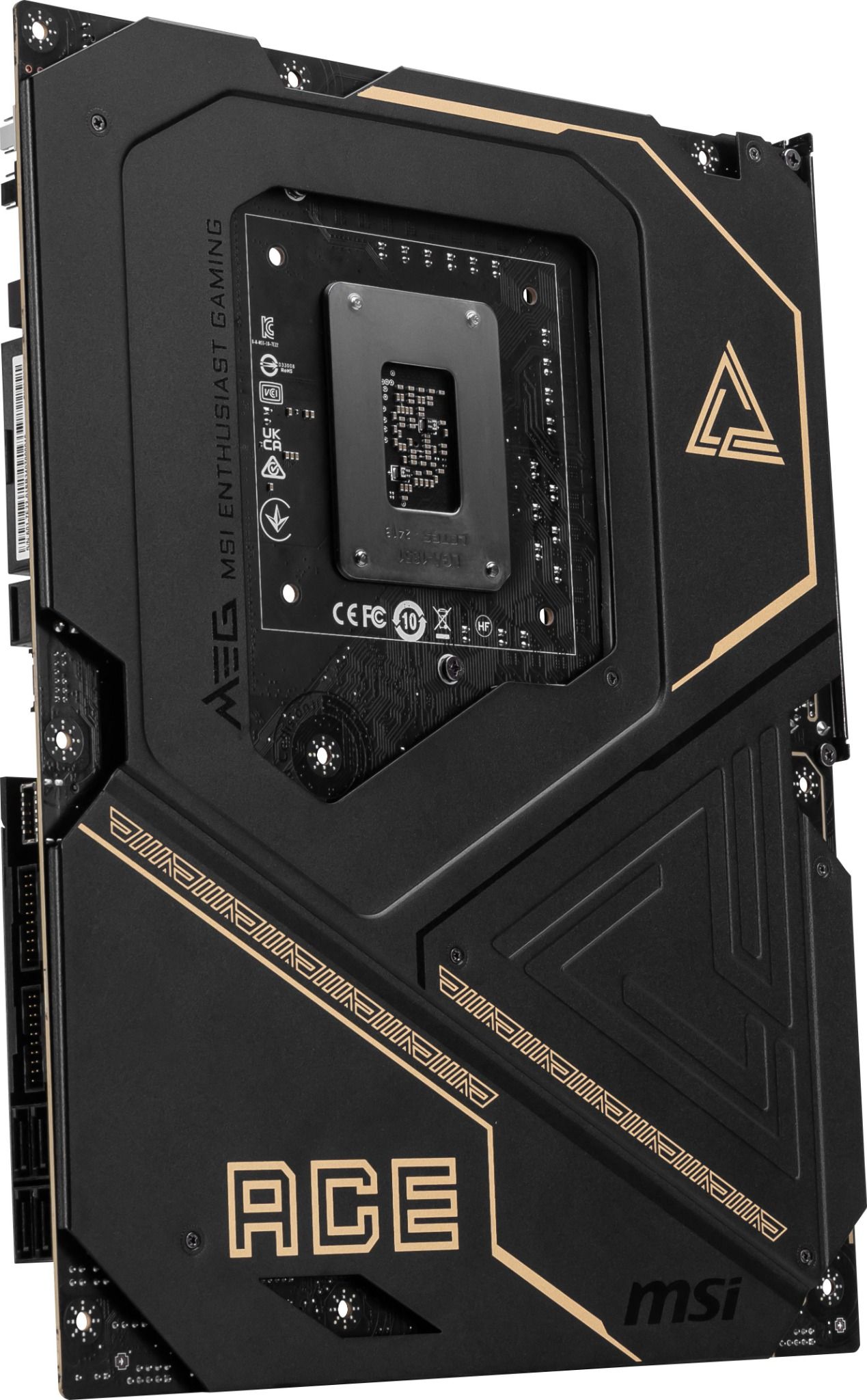

  • Tấm nền kim loại giúp tản nhiệt tốt hơn.
  •

Bộ xử lý Intel Core Ultra Arrow-Lake-S

Hãy sẵn sàng bước vào kỷ nguyên chơi game mới, hãy chọn một chiếc PC có AI được trang bị bộ xử lý Intel Core Ultra. Tận hưởng hiệu suất cao nhất cho việc phát trực tuyến và chơi game. Giao phó các tác vụ liên quan đến AI như giảm nhiễu nền, tối ưu hóa âm thanh và đóng khung tự động cho Bộ xử lý thần kinh (NPU) và bạn sẽ có điều kiện phát trực tuyến và chơi game lý tưởng.

ChipsetINTEL Z890
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

* The DIMM slots on this motherboard only have single-sided latches.
** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4

* PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.
** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.
AudioRealtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G

* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** Please refer to the manual for M.2 SSD heatsink restrictions.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
11x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN1x Marvell® AQC113CS 10Gbps LAN
Internal IO1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTHIntel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switch

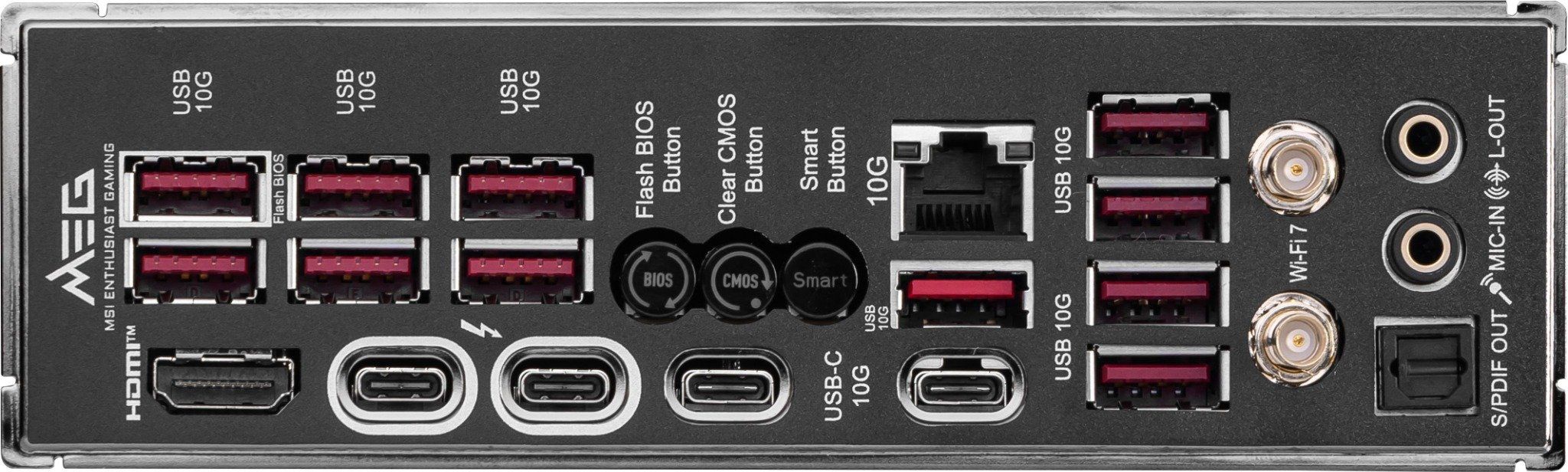

BACK PANEL PORTSUSB 10Gbps (Type-A)
Flash BIOS Button
Clear CMOS Button
Smart Button
10G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
HDMI™ 2.1 Port
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps (Type-C)
USB 10Gbps (Type-A)
Optical S/PDIF-Out
OPERATING SYSTEMSupport for Windows® 11 64-bit
BOX CONTENT
PCB InfoATX
243.84mmx304.8mm
