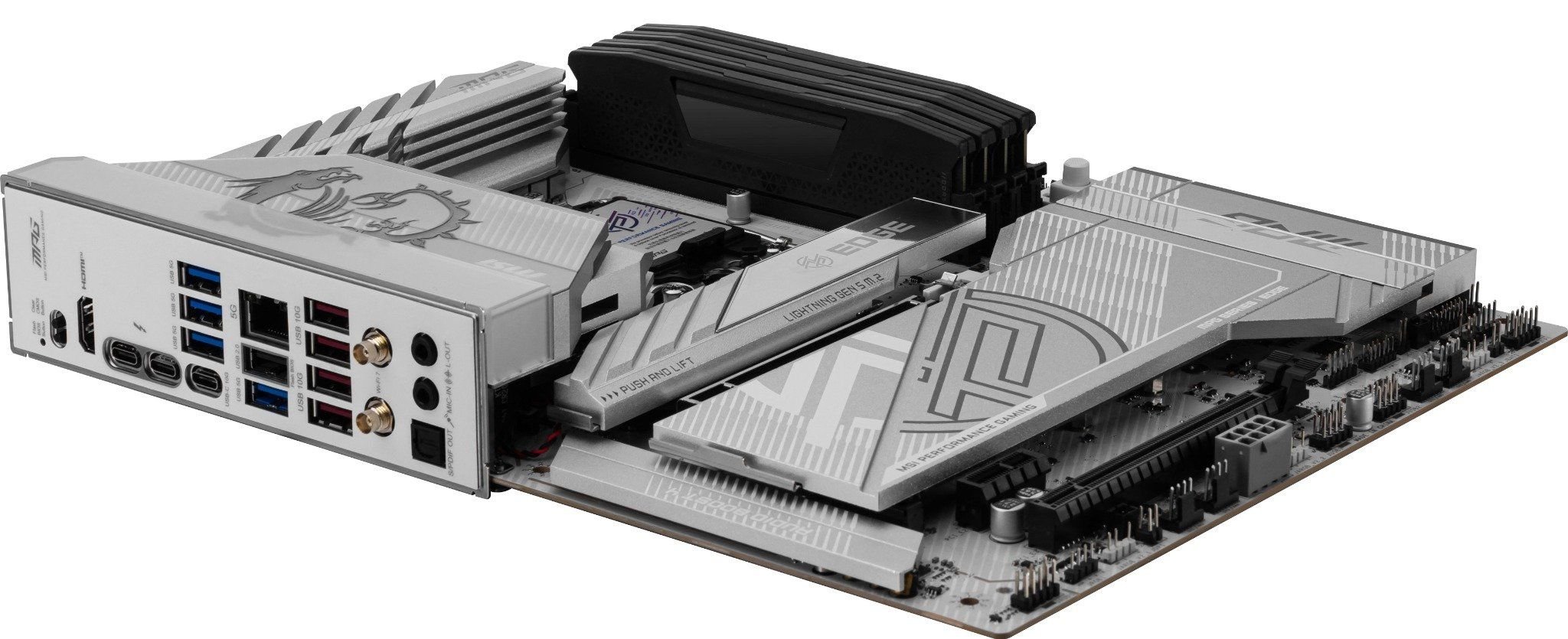

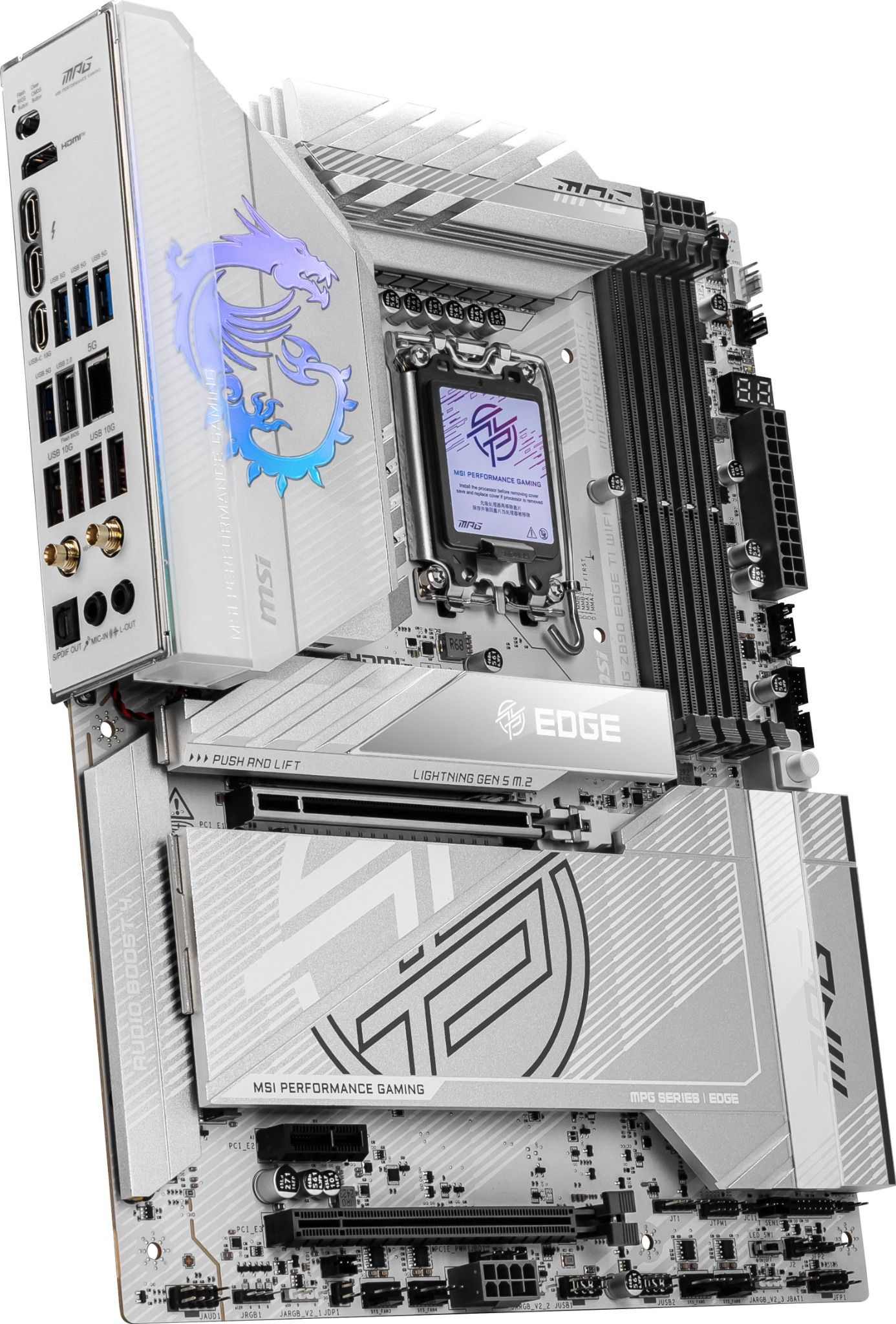

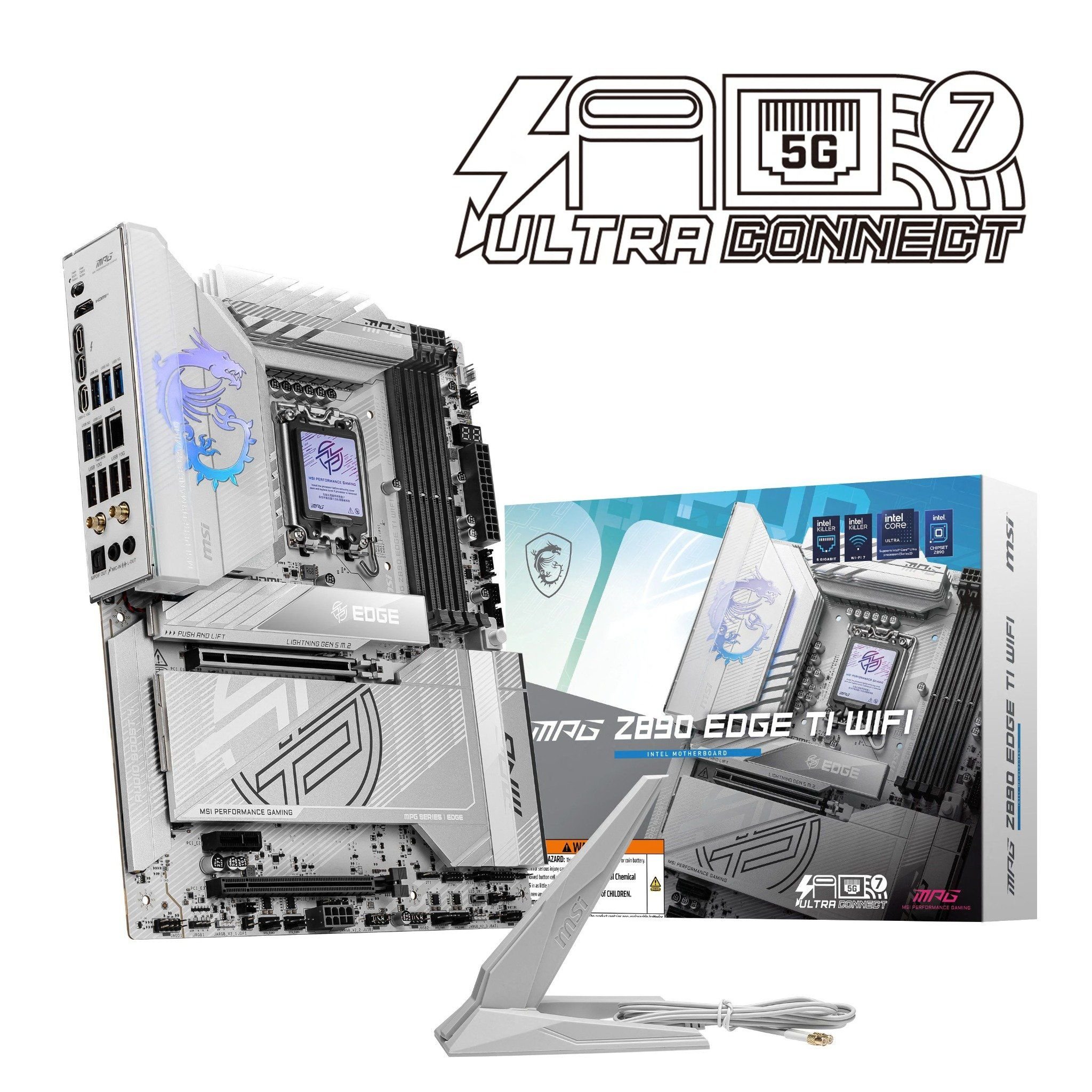

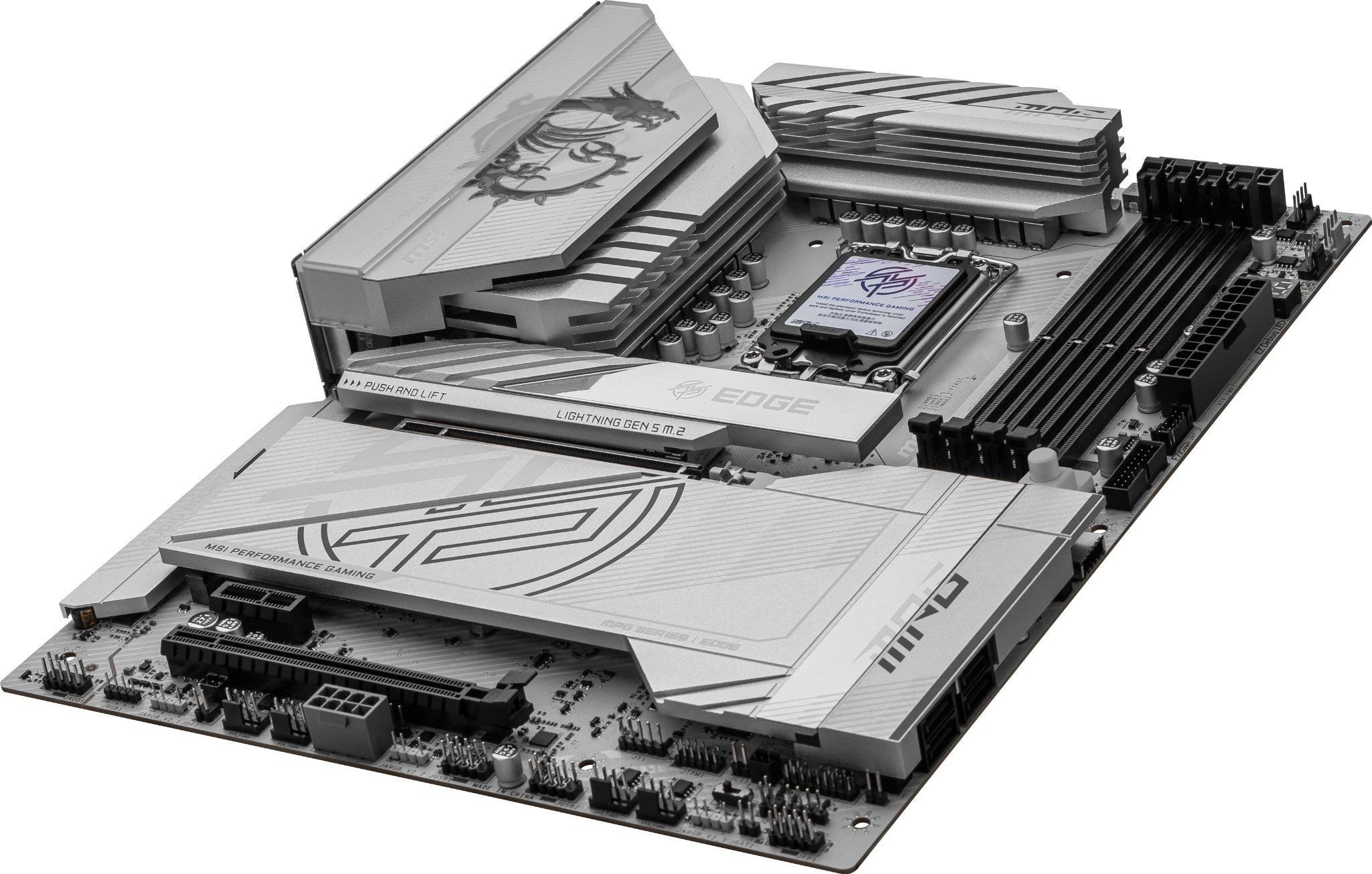

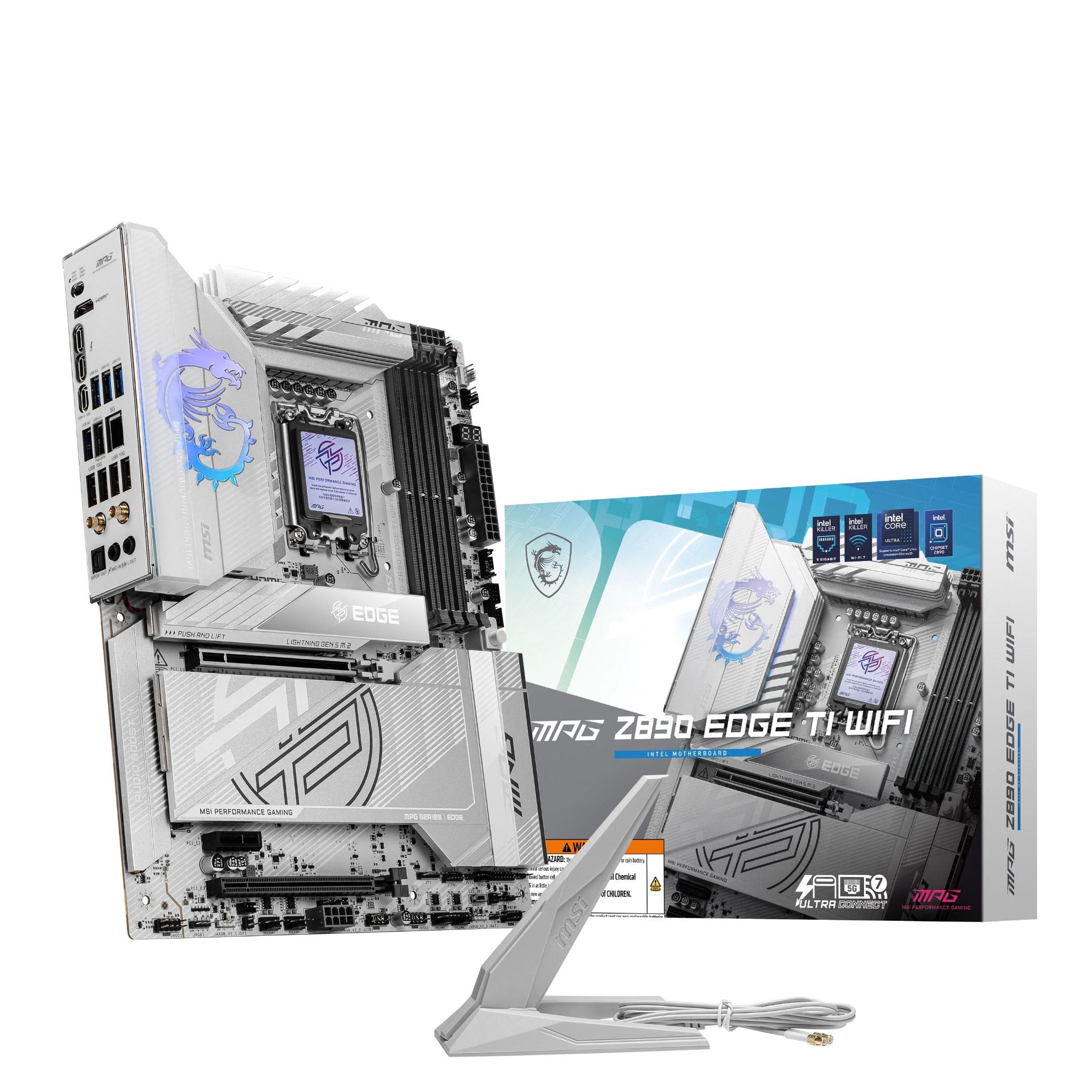

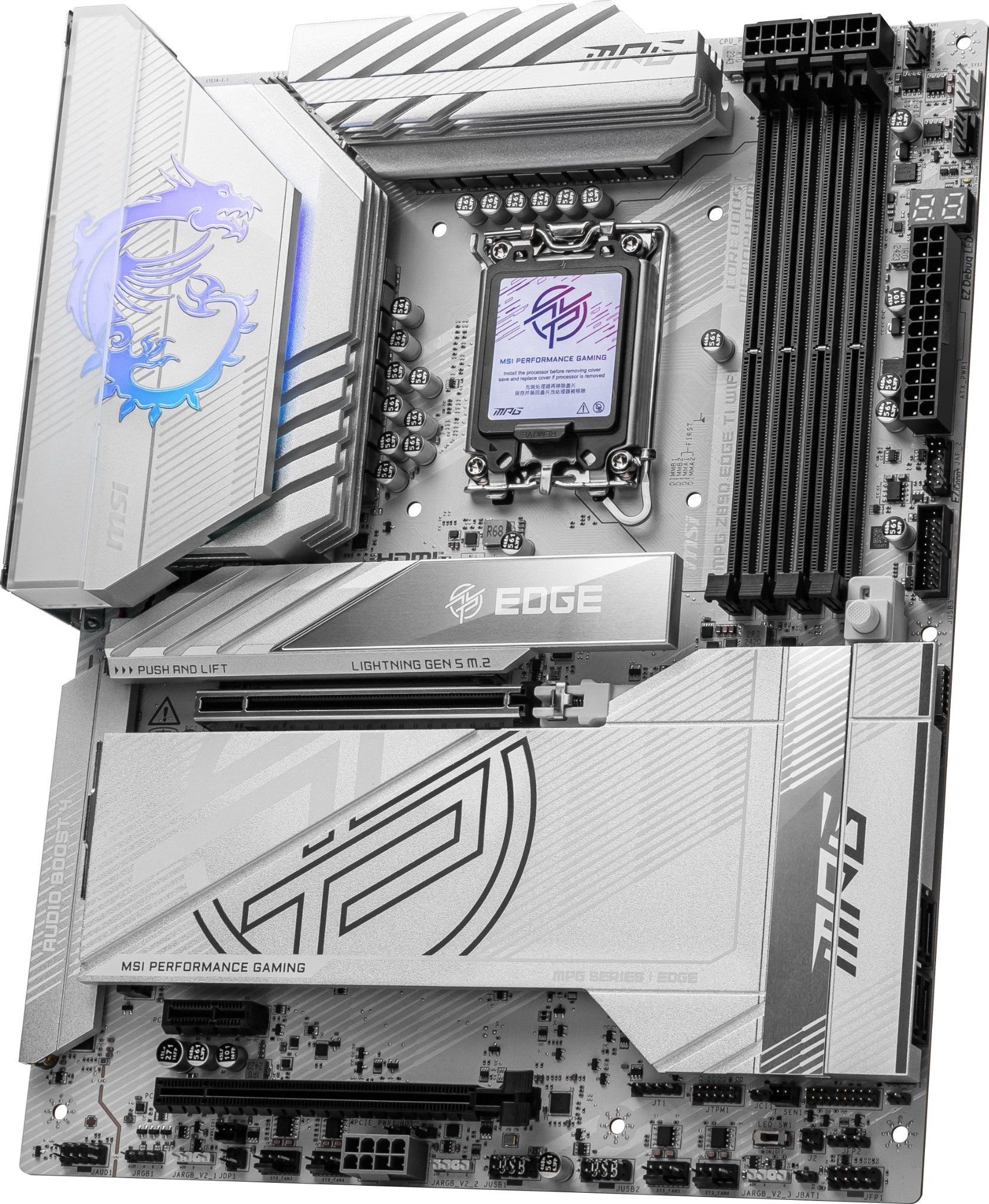

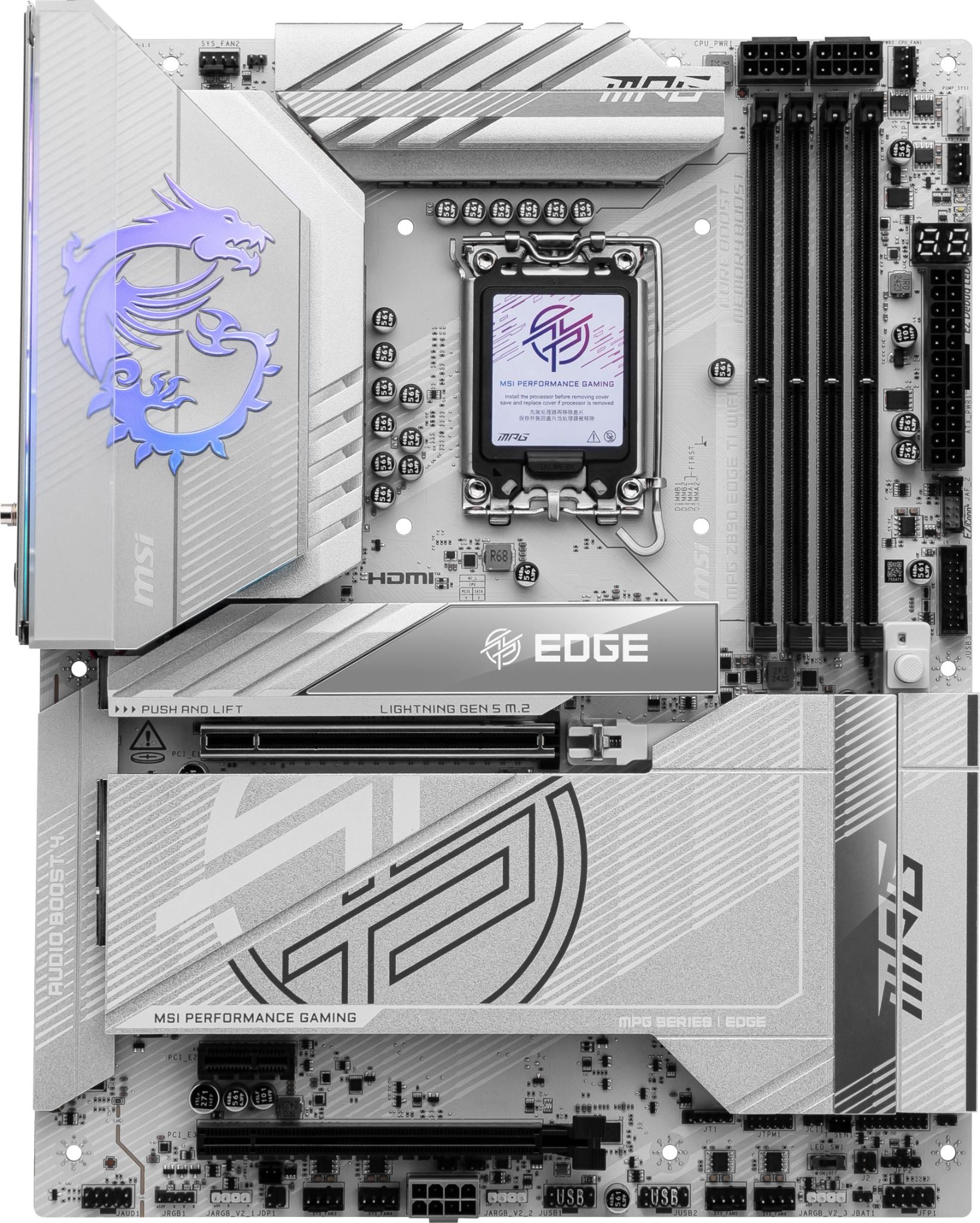

Mainboard MSI MPG Z890 Edge Ti Wifi

0 lượt xem |
Thương hiệu: MSI
|
Loại: Mainboard

Mua ngay với giá

11,190,000₫

Hoặc

Trả góp

624,589₫/tháng
Tiêu đề:
Chọn gói khuyến mãi
Ưu đãi thêm
  • Tặng 1 áo khoác MSI GAMING ( từ ngày 10/10-10/11/2024)

Xin lưu ý: Tình trạng tồn kho của sản phẩm có thể thay đổi. Quý khách vui lòng liên hệ với nhân viên để được hỗ trợ và cập nhật thông tin chi tiết một cách nhanh chóng

Cam kết bán hàng
  • Hàng chính hãng.Mới 100% Hàng chính hãng.Mới 100%
  • Hỗ trợ trả góp Hỗ trợ trả góp
  • Giao hàng ngay (nội thành HN & TP.HCM) Giao hàng ngay (nội thành HN & TP.HCM)
  • Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS. Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.
Ưu đãi thêm
  • Tặng 1 áo khoác MSI GAMING ( từ ngày 10/10-10/11/2024)
Mô tả sản phẩm

Bo mạch chủ MSI MPG Z890 Edge Ti Wifi

MSI MPG Z890 EDGE TI WIFI với socket Intel LGA 1851 có thể chứa bộ xử lý Intel Core Ultra Arrow Lake-S được tối ưu hóa cho AI. Với khả năng kết nối tiên tiến, chẳng hạn như Thunderbolt 4 , MPG Z890 EDGE TI WIFI do MSI cung cấp cũng cung cấp khe cắm PCI-Express 5.0 x16 và khe cắm PCIe 5.0 x4 M.2 để chứa các thành phần nhanh nhất nhằm thỏa mãn các game thủ khó tính. Khi nói đến mạng, không có gì thiếu sót, vì có sẵn đầu nối LAN 5 Gbps ngoài khả năng kết nối không dây hàng đầu với Wi-Fi 7 và Bluetooth 5.4.



MSI MPG Z890 EDGE TI WIFI

  • Hỗ trợ bộ xử lý Intel Core Ultra Arrow-Lake-S trên socket LGA 1851
  • Hỗ trợ bộ nhớ DDR5
  • 1 khe cắm M.2 PCIe 5.0 x4 + 4 khe cắm M.2 PCIe 4.0 4x + 4 cổng SATA 6 Gbps
  • Cổng PCI-Express 5.0 16x
  • Audio Boost 4 cho chất lượng âm thanh vượt trội
  • 2 cổng Thunderbolt 4 (USB-C) 40 Gbps tương thích với 8K @ 60Hz và cung cấp công suất 15W.
  • Mạng LAN 5 GbE
  • Wi-Fi 7/Bluetooth 5.4
  •

  • Điểm nổi bật

  • Thiết kế tản nhiệt cao cấp: Bộ tản nhiệt 7W/mK chất lượng cao dành cho MOSFET để chịu được khả năng ép xung tốt hơn.
  • Bộ tản nhiệt cho ổ SSD M.2 để đạt hiệu suất tốt nhất.
  • Tháo lắp EZ PCIe: Nhấn nút để tháo/lắp card đồ họa mà không cần tốn nhiều công sức.
  • EZ M.2 Shield Frozr II : dễ dàng lắp đặt và tháo ổ SSD M.2 NVMe.
  •

  • Bộ xử lý Intel Core Ultra Arrow-Lake-S

    Hãy sẵn sàng bước vào kỷ nguyên chơi game mới, hãy chọn một chiếc PC có AI được trang bị bộ xử lý Intel Core Ultra. Tận hưởng hiệu suất cao nhất cho việc phát trực tuyến và chơi game. Giao phó các tác vụ liên quan đến AI như giảm nhiễu nền, tối ưu hóa âm thanh và đóng khung tự động cho Bộ xử lý thần kinh (NPU) và bạn sẽ có điều kiện phát trực tuyến và chơi game lý tưởng.

ChipsetINTEL Z890
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AudioRealtek® ALC1220P Codec
7.1-Channel USB High Definition Audio
Supports S/PDIF output
Storage5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Onboard Thunderbolt2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB1x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN1x Intel® Killer™ E5000B 5G LAN
Internal IO1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTHIntel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE4x EZ Debug LED
1x EZ Digit Debug LED

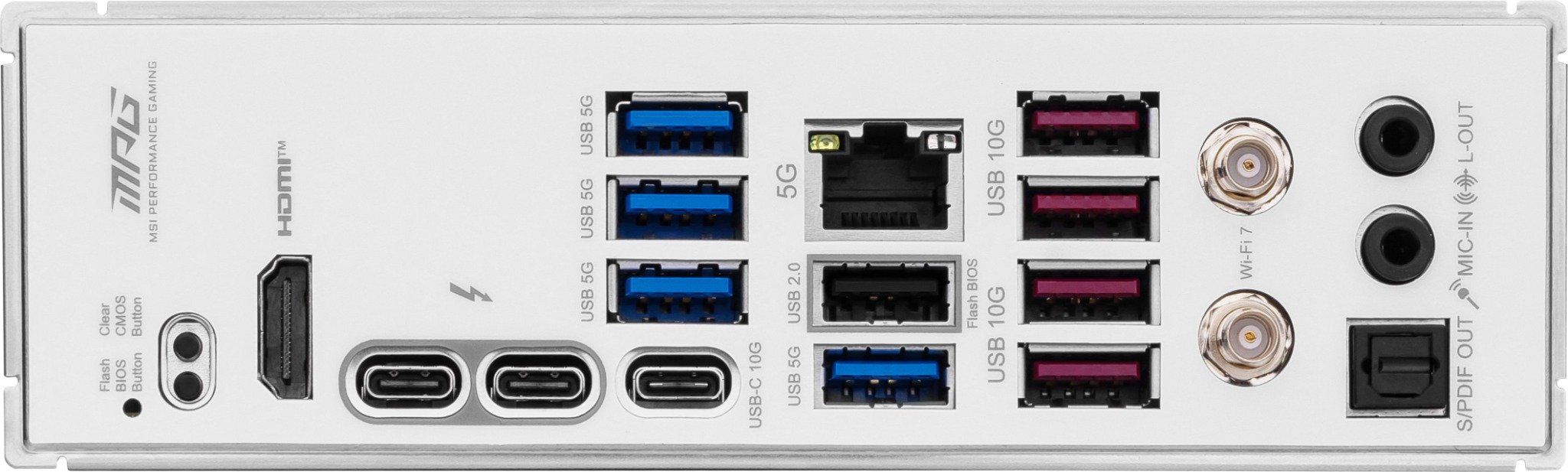

BACK PANEL PORTSUSB 5Gbps Type-A
5G LAN
USB 10Gbps Type-A
Wi-Fi / Bluetooth
Audio Connectors
Clear CMOS Button
Flash BIOS Button
HDMI™
Thunderbolt 4
USB 10Gbps Type-C
USB 2.0
Optical S/PDIF Out
OPERATING SYSTEMSupport for Windows® 11 64-bit
BOX CONTENT
PCB InfoATX
243.84mmx304.8mm
