Mô tả sản phẩm

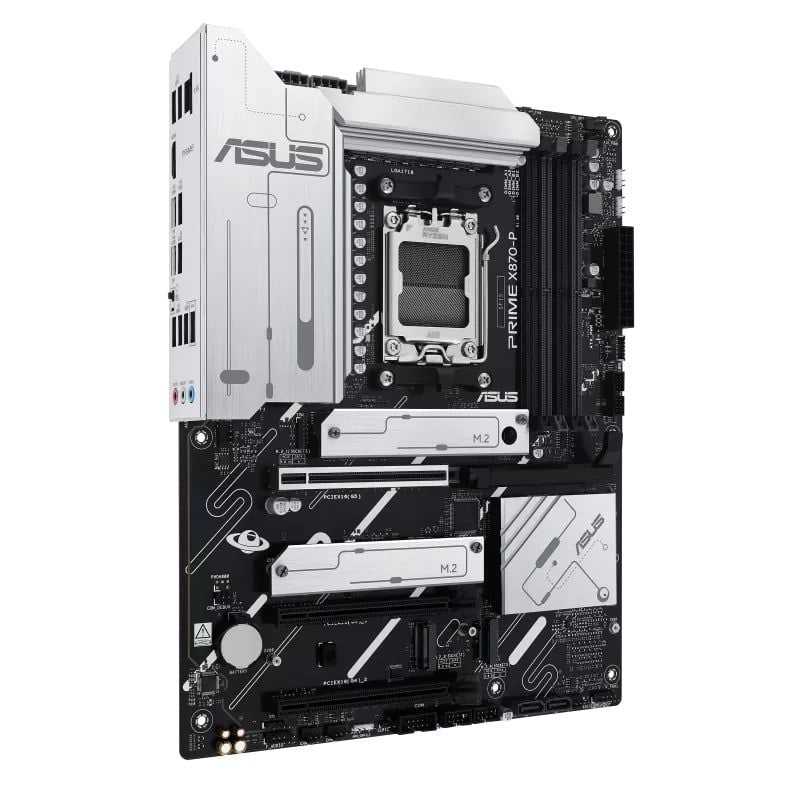

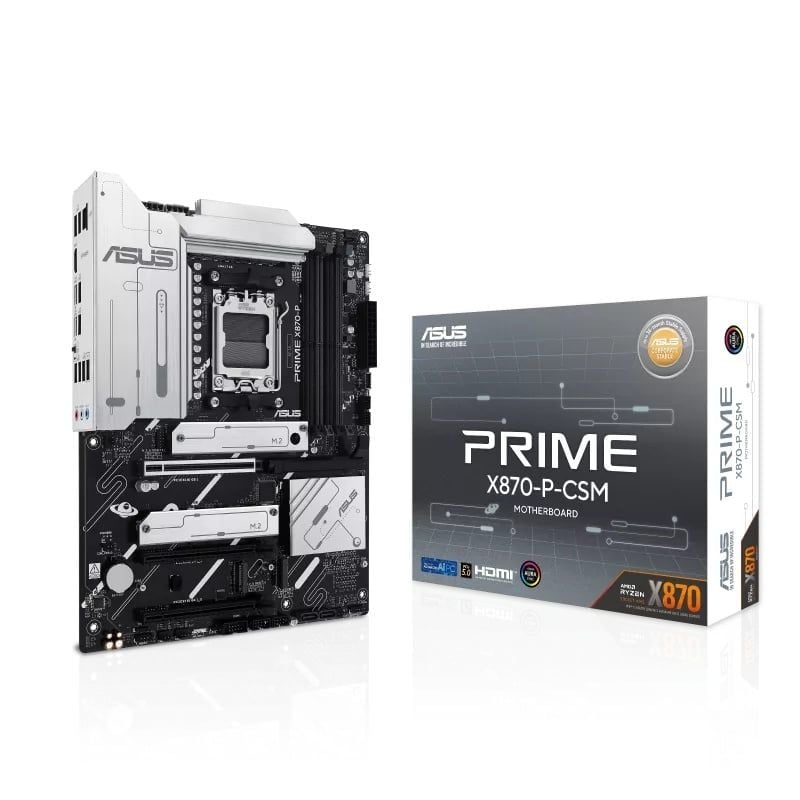

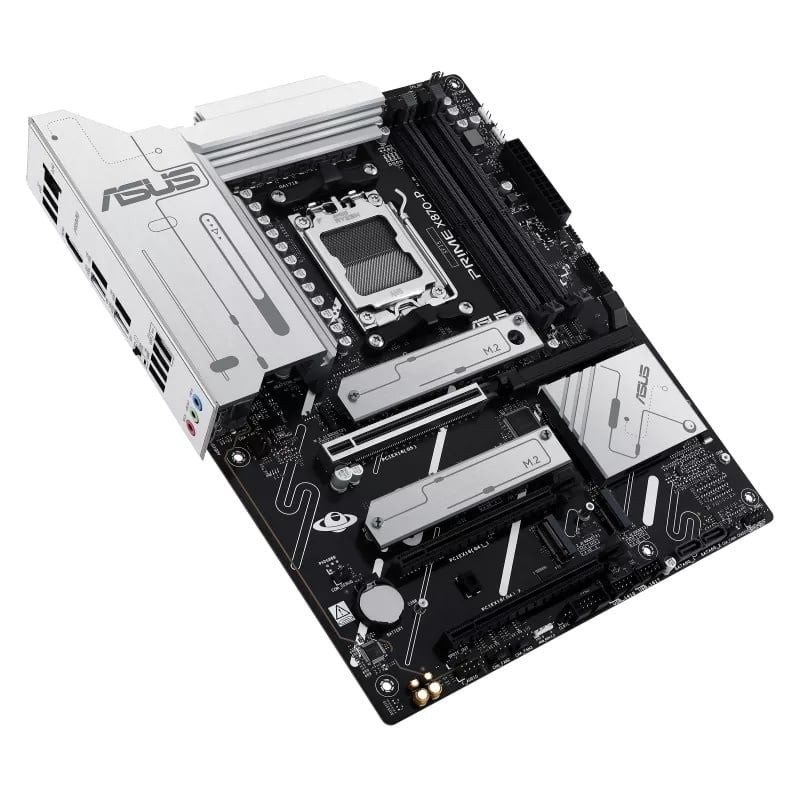

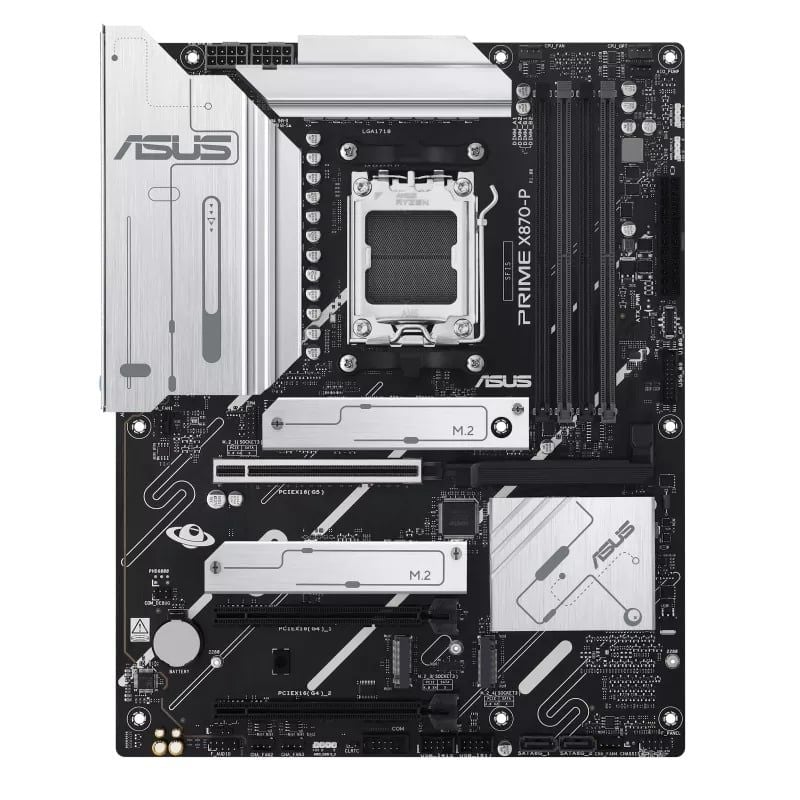

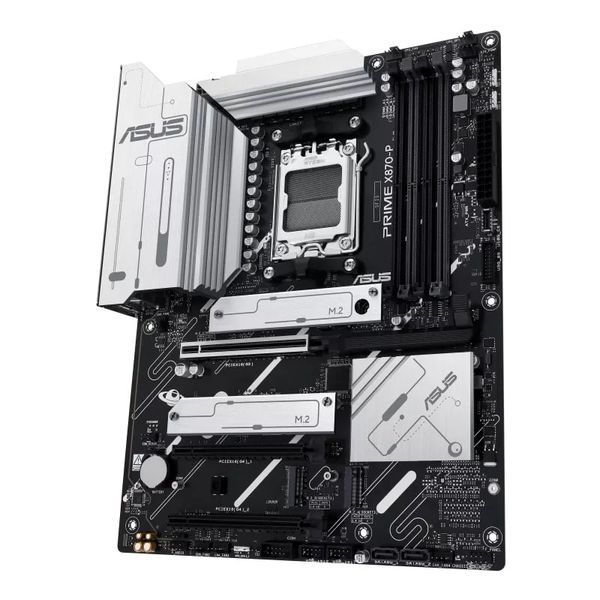

Mainboard ASUS PRIME X870-P-CSM
| Mục | Thông số |
| CPU | AMD Socket AM5 hỗ trợ Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| Memory | 4 x DIMM, tối đa 256GB DDR5; hỗ trợ đến 8000+ MT/s (OC); ECC & Non-ECC Unbuffered; Dual Channel; AMD EXPO™; ASUS AEMP; DDR5 hỗ trợ On-Die ECC |
| Graphics | 1 x HDMI 2.1 (4K@60Hz); 2 x USB4® 40Gbps Type-C hỗ trợ xuất hình; tối đa 4K@60Hz qua DisplayPort 1.4a |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4); Chipset: 2 x PCIe 4.0 x16 (x1); hỗ trợ PCIe Slot Q-Release; PCIe G4 chia băng thông với M.2_3 |
| Storage | 4 x M.2 + 2 x SATA 6Gb/s; M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) hoặc PCIe 4.0 x4 (Ryzen 8000); M.2_2: PCIe 4.0 x4; M.2_3: PCIe 4.0 x4; M.2_4: PCIe 3.0 x2; hỗ trợ AMD RAIDXpert2 (RAID 0/1/5/10 tùy CPU) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard |
| USB | Rear: 2 x USB4 40Gbps Type-C + 1 x USB 10Gbps + 3 x USB 5Gbps + 4 x USB 2.0; Front: 1 x USB-C 10Gbps + 2 x USB 5Gbps + 4 x USB 2.0; USB-C tối đa 5V/3A |
| Audio | Realtek 7.1 HD Audio; hỗ trợ 24-bit/192kHz; Audio Shielding; Premium Audio Capacitors; Dedicated Audio PCB |

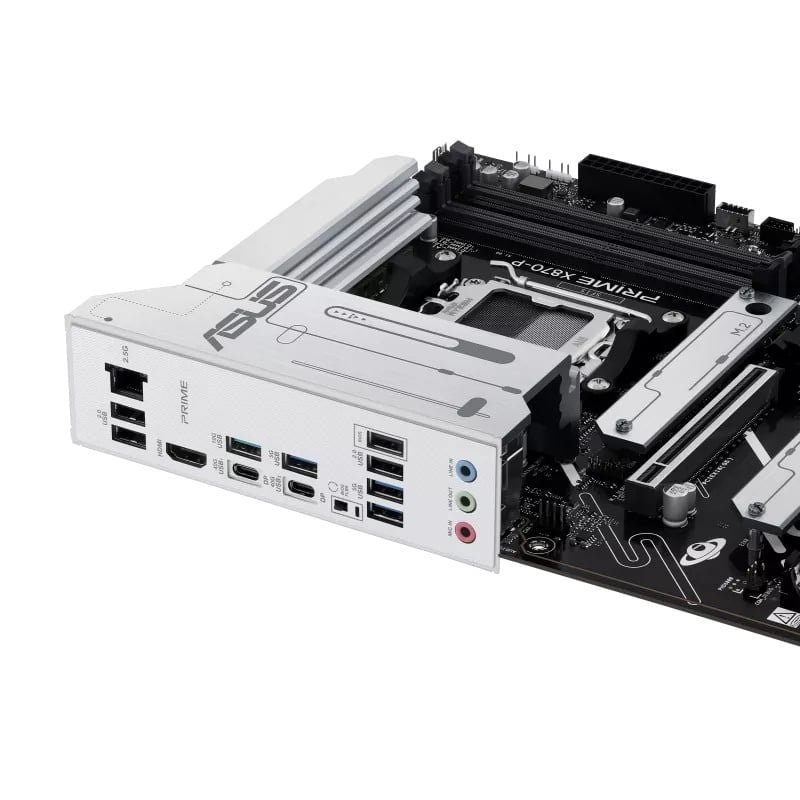

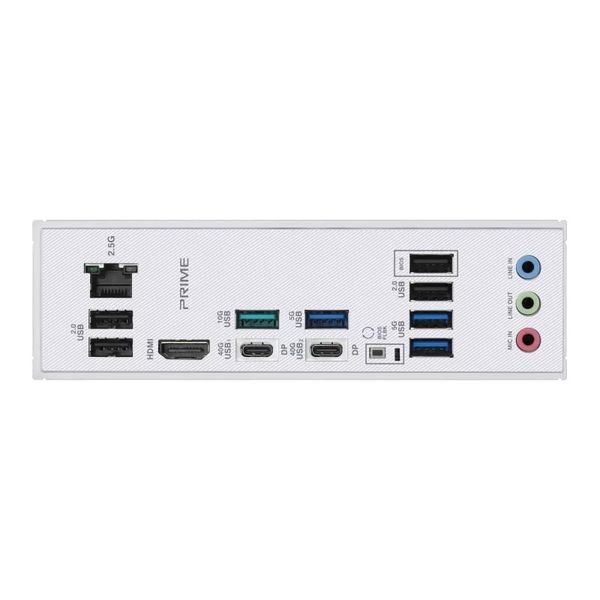

| Back Panel I/O | 2 x USB4 Type-C; 1 x USB 10Gbps; 3 x USB 5Gbps; 4 x USB 2.0; 1 x HDMI; 1 x LAN 2.5Gb; 3 x Audio Jack; BIOS FlashBack |
| Cooling & Power | 1 x CPU Fan; 1 x CPU OPT; 1 x AIO Pump; 4 x Chassis Fan; nguồn gồm 24-pin + 2 x 8-pin CPU |
| Internal Connectors | 4 x M.2; 2 x SATA; USB-C 10Gbps; USB 5Gbps; USB 2.0; 3 x ARGB Gen2; Clear CMOS; COM; Front Audio; S/PDIF; TPM; System Panel |
| Special Features | ASUS 5X Protection III; DIGI+ VRM; Overvoltage Protection; SafeSlot; Stainless Steel Back I/O |
| ASUS Q-Design | M.2 Q-Latch; PCIe Slot Q-Release; Q-Dashboard; Q-DIMM; Q-LED Core; Q-Slot |
| Thermal Design | Flexible M.2 Heatsink; VRM Heatsink |
| EZ DIY | BIOS FlashBack; BIOS FlashBack LED; ProCool; Pre-mounted I/O Shield; SafeSlot |
| Lighting | Aura Sync; Addressable Gen 2 Headers |
| Software | Armoury Crate; Aura Creator; Aura Sync; Fan Xpert 4; Power Saving; DriverHub; TurboV Core; ASUS CPU-Z; Norton 360 Trial; WinRAR Trial; UEFI BIOS; EZ Flash 3; CrashFree BIOS 3; MyHotkey |
| Remote Management | ASUS Control Center Express (ACCE) |
| BIOS | 256Mb Flash ROM; UEFI AMI BIOS |
| Manageability | WOL by PME; PXE |
| Accessories | 2 x SATA Cable; M.2 Rubber Package; M.2 Screw Package; ACC Express Activation Card; Quick Start Guide |
| Operating System | Windows 11; Windows 10 64-bit |
| Form Factor | ATX — 30.5 × 24.4 cm (12 × 9.6 inch) |
