| Hãng sản xuất | ASUS |
| Series | PRIME |
| Model | PRIME Z890M-PLUS WIFI (90MB1J80-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2), LGA1851* |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** |
| 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output**** |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| **Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| ***Supports 4K@60Hz as specified in HDMI 2.1. |
| ****Supports max. 4K@120Hz as specified in DisplayPort 1.4. |
| Expansion Slots | Intel Core Ultra Processors * |
| 1 x PCIe 5.0 x16 slot |
| Intel Z890 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| 2 x PCIe 4.0 x16 slots (support x1 mode) |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors * |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Intel Z890 Chipset |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| 6 x SATA 6Gb/s ports |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. |
| For Windows 10, only Wi-Fi 6 is supported. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) |
| 1x USB 10Gbps port (1 x Type-A) |
| 4 x USB 5Gbps ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) ** |
| Front USB (Total 7 ports) |
| 1 x USB 5Gbps connector (supports USB Type-C) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports** |
| * USB Type-C power delivery output: max. 5V/3A |
| ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| - Audio Shielding |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

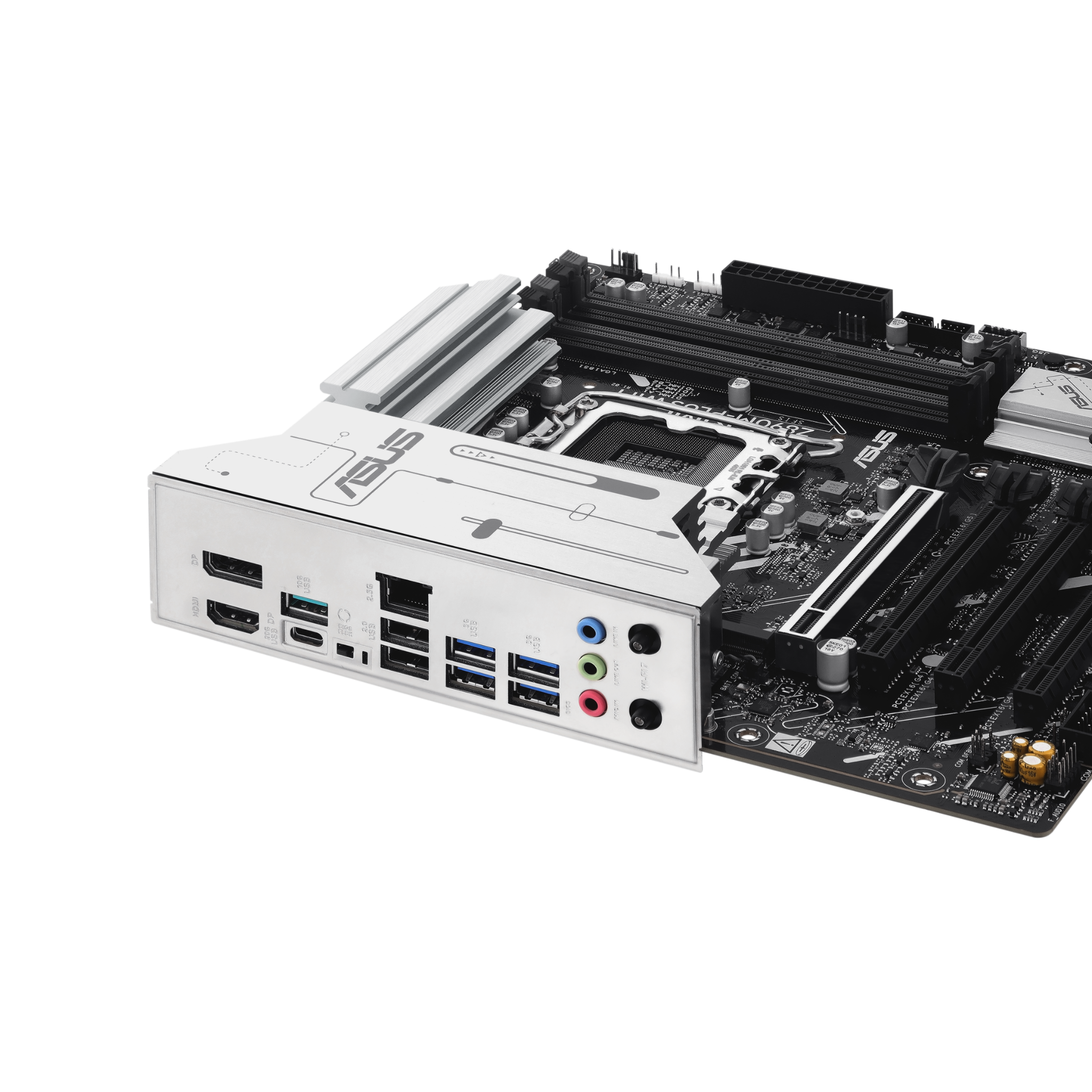

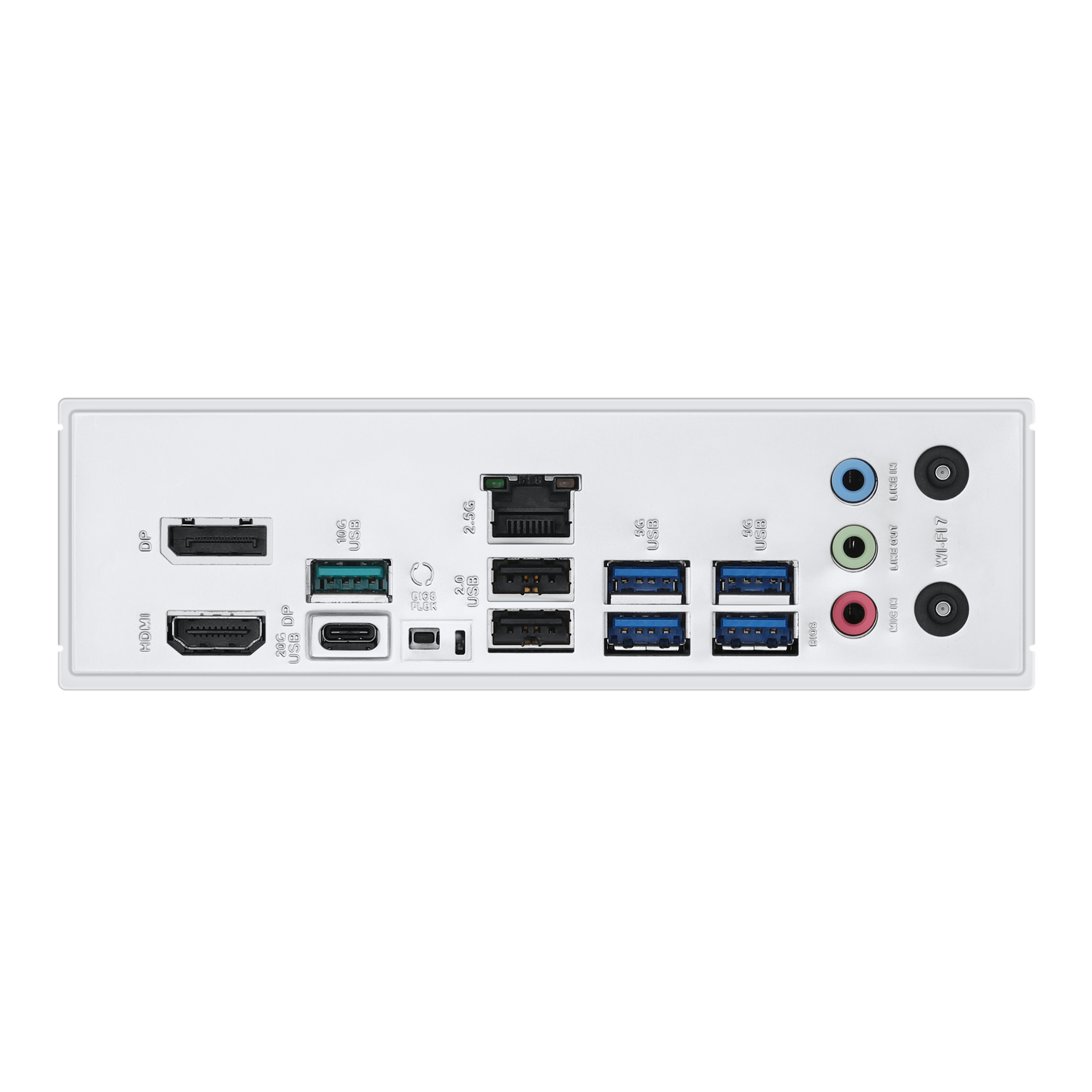

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) |
| 1x USB 10Gbps port (1 x Type-A) |
| 4 x USB 5Gbps ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x Wi-Fi module |
| 1 x Realtek 2.5Gb Ethernet |
| 3 x Audio jacks |
| 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V CPU Power connector |
| 1 x 4-pin +12V CPU Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 6 x SATA 6Gb/s ports |
| USB |
| 1 x USB 5Gbps connector (supports USB Type-C) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x Chassis Intrusion header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 10-1 pin Front System Panel header |
| 1 x Thunderbolt (USB4) header |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | mATX Form Factor |
| 24.4 cm x 24.4 cm |
