Mô tả sản phẩm

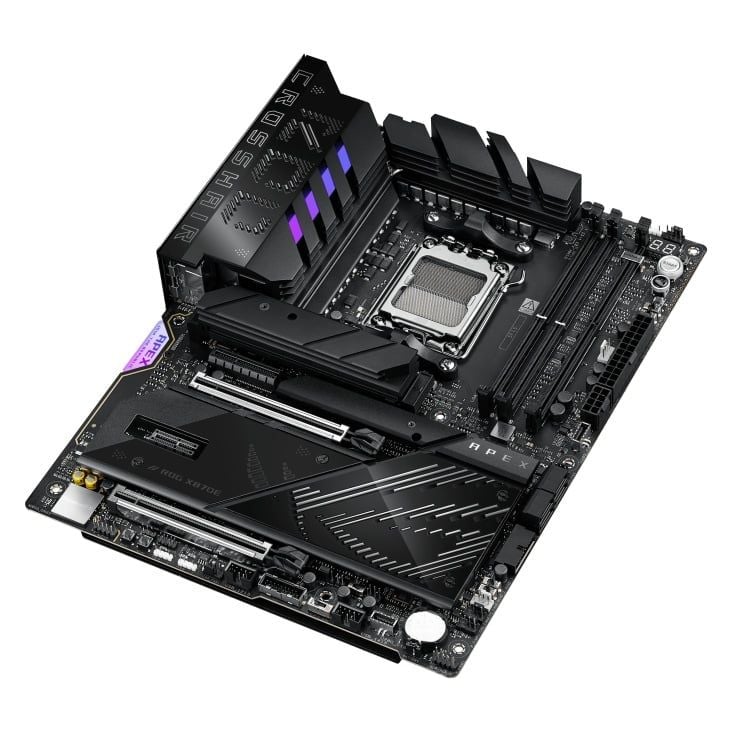

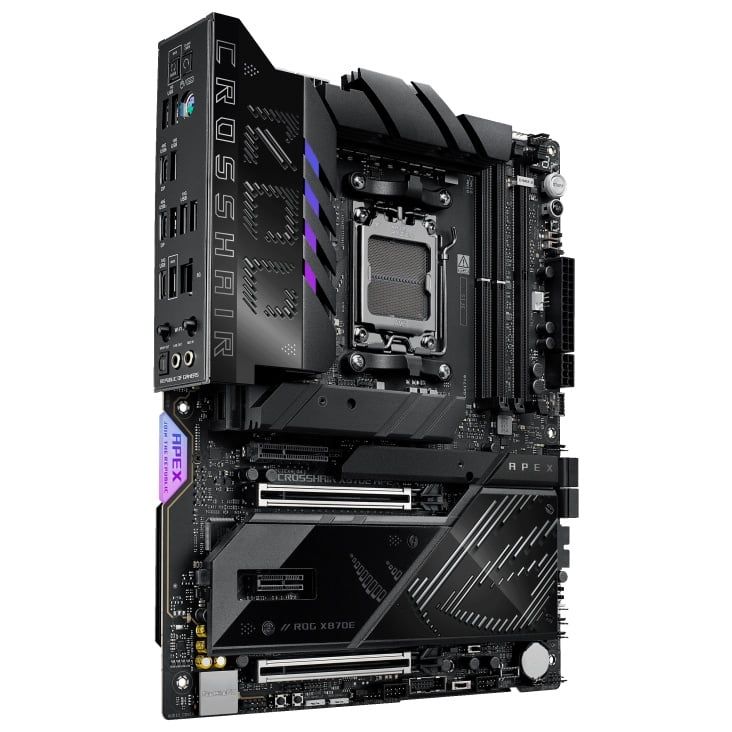

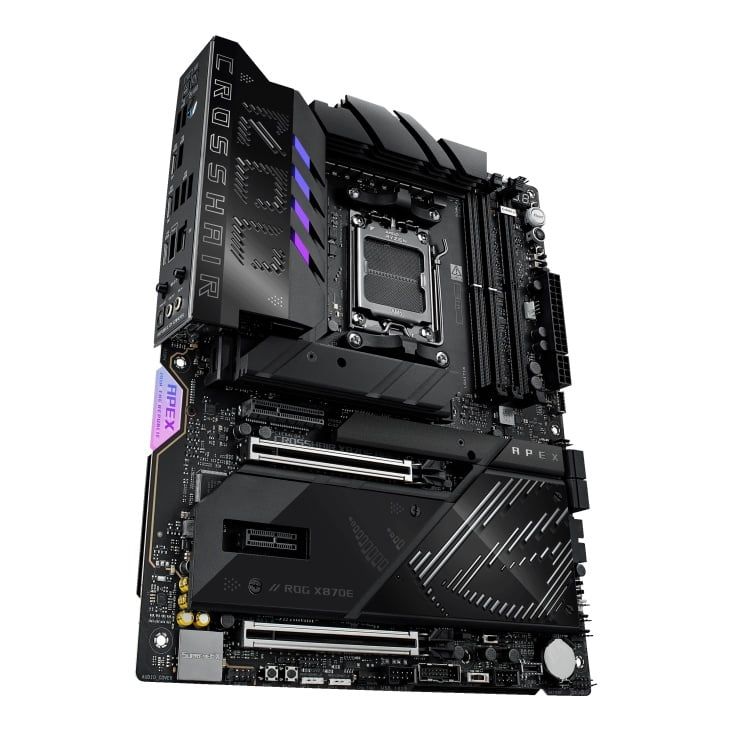

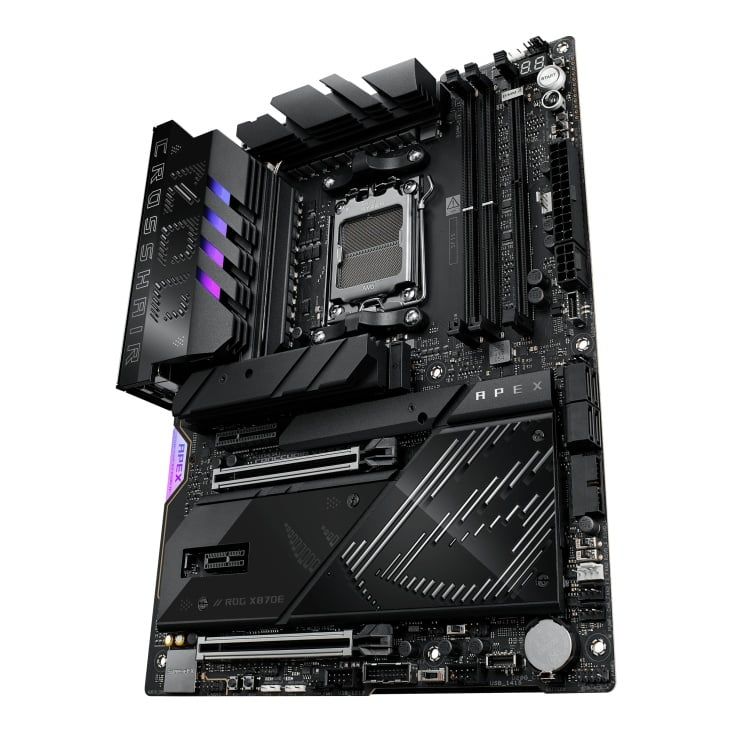

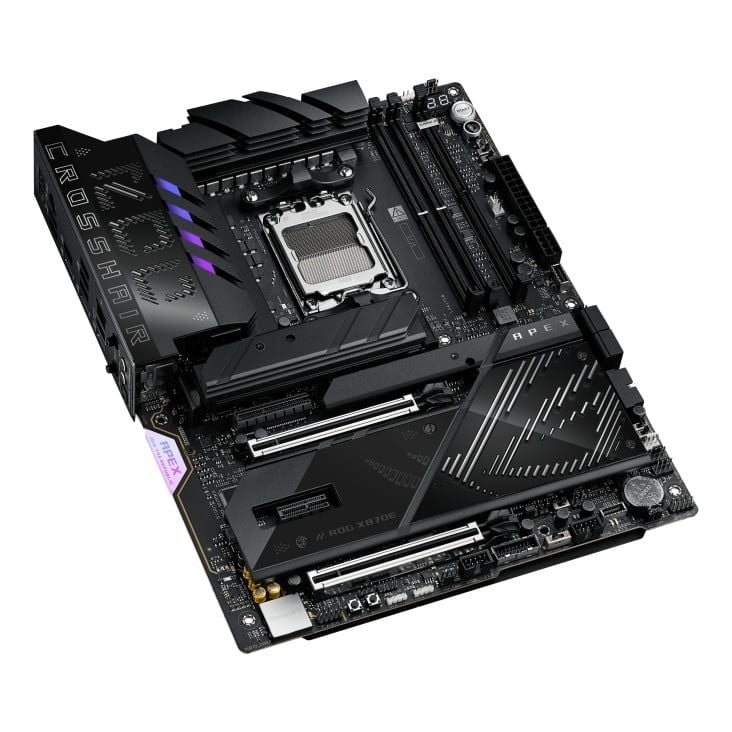

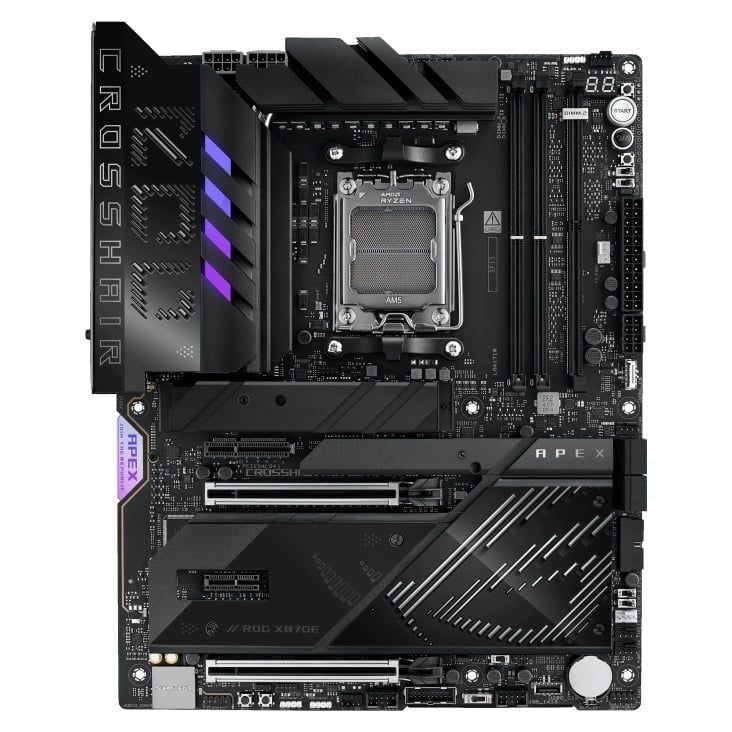

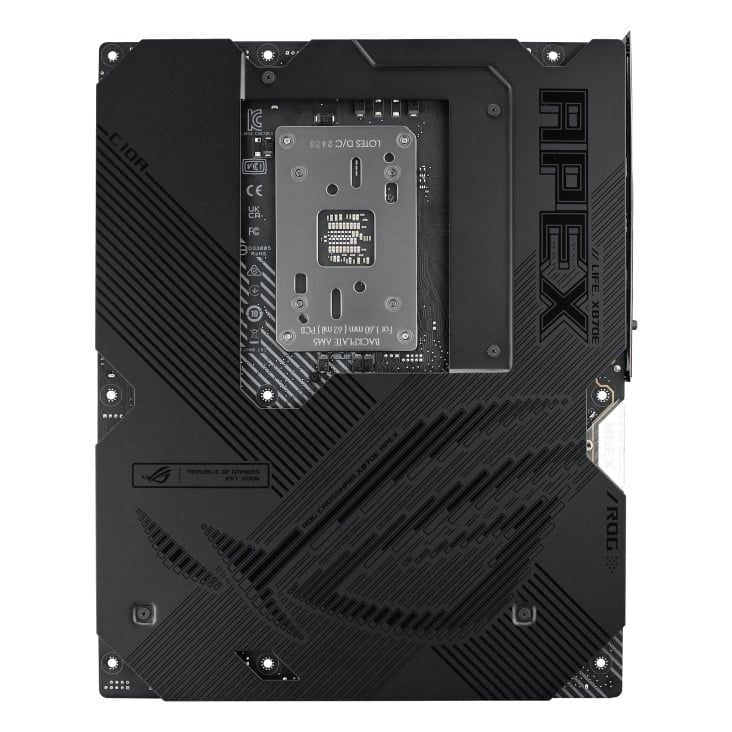

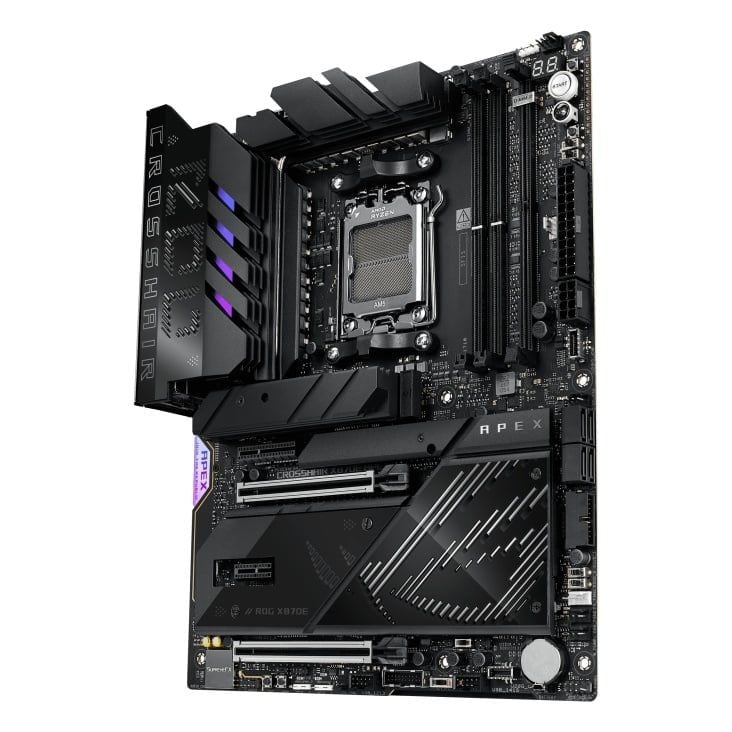

Mainboard ASUS ROG Crosshair X870E Apex
| Mục | Thông số |
| CPU | AMD Socket AM5 hỗ trợ AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | 2 x DIMM, tối đa 128GB DDR5; Ryzen 9000: 8200+ MT/s (OC); Ryzen 8000: 9600+ MT/s (OC); Ryzen 7000: 8000+ MT/s (OC); ECC & Non-ECC Unbuffered; Dual Channel; AMD EXPO™; ASUS AEMP |
| Graphics | 2 x USB4® (40Gbps) hỗ trợ xuất hình USB Type-C®; tối đa 4K@60Hz (DisplayPort 1.4a) |
| Expansion Slots | Ryzen 9000/7000: 2 x PCIe 5.0 x16 (x16 hoặc x8/x8 hoặc x8/x4/x4); Ryzen 8700/8600/8400: 2 x PCIe 4.0 x16 (x8 tổng); Ryzen 8500/8300: 2 x PCIe 4.0 x16 (x4 tổng); Chipset: 1 x PCIe 4.0 x4 + 1 x PCIe 3.0 x1 |
| Storage | Hỗ trợ 5 x M.2 + 4 x SATA 6Gb/s; M.2_1 PCIe 5.0 x4; M.2_2 PCIe 5.0 x4; M.2_3 PCIe 5.0 x4; DIMM.2_1 PCIe 4.0 x4; DIMM.2_2 PCIe 4.0 x4 |
| RAID | AMD RAIDXpert2; Ryzen 9000: RAID 0/1/5/10; Ryzen 8000: RAID 0/1; Ryzen 7000: RAID 0/1/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet; ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2; hỗ trợ 2.4/5/6GHz; băng thông 320MHz; Bluetooth® 5.4 |
| USB | Rear: 2 x USB4 Type-C + 6 x USB 10Gbps + 2 x USB 5Gbps; Front: 2 x USB 20Gbps Type-C + 2 x USB 5Gbps headers + 2 x USB 2.0 headers; hỗ trợ PD/QC4+ tối đa 60W |
| Audio | ROG SupremeFX ALC4080; 7.1 Surround; Savitech SV3H712 AMP; 120dB SNR playback; 110dB SNR recording; 32-bit/384kHz; Optical S/PDIF; jack mạ vàng |
| Back Panel I/O | 2 x USB4 Type-C; 6 x USB 10Gbps; 2 x USB 5Gbps; Wi-Fi module; Realtek 5Gb LAN; PS/2; 2 audio jack; Optical S/PDIF; BIOS FlashBack; Clear CMOS |
| Cooling & Power | 1 x CPU Fan; 1 x CPU OPT; 1 x AIO Pump; 2 x Chassis Fan; 2 x Full Speed Fan; 1 x W_PUMP+; 1 x Extra Flow Fan; nguồn gồm 24-pin + 2 x 8-pin CPU + 1 x 8-pin PCIe |
| Internal Connectors | 2 x USB 20Gbps Type-C; 2 x USB 5Gbps headers; 2 x USB 2.0 headers; Front Audio; Thermal Sensor; System Panel |
| Special Features | Extreme OC Kit; LN2 Mode; ProbeIt; ReTry; Safe Boot; Start Button; Slow Mode; FlexKey |
| ASUS Q-Design | M.2 Q-Latch; M.2 Q-Release; M.2 Q-Slide; Q-Release Slim; Q-Antenna; Q-Code; Q-Connector; Q-Dashboard; Q-DIMM; Q-LED |
| Thermal Design | M.2 heatsink; M.2 heatsink backplate; VRM heatsink; Metal backplate |
| EZ DIY | BIOS FlashBack; Clear CMOS; CPU Socket Lever Protector; ProCool II; Pre-mounted I/O Shield; SafeSlot; SafeDIMM |
| Aura Sync | Addressable Gen2 headers |
| Software | ROG CPU-Z; Dolby Atmos; Armoury Crate; AIDA64 Extreme; Aura Creator; Aura Sync; Fan Xpert 4; GameFirst; HWiNFO; ASUS AI Advisor; DriverHub; GlideX; TurboV Core |
| BIOS | 2 x 256Mb Flash ROM; UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | ROG DIMM.2 with heatsink; M.2 accessories; Memory Fan Kit; WiFi Q-Antenna; Q-connector; ROG stickers; Bottle Opener; USB driver; Quick Start Guide |
| Operating System | Windows 11 (22H2 trở lên) |
| Form Factor | ATX – 30.5 × 24.4 cm |
