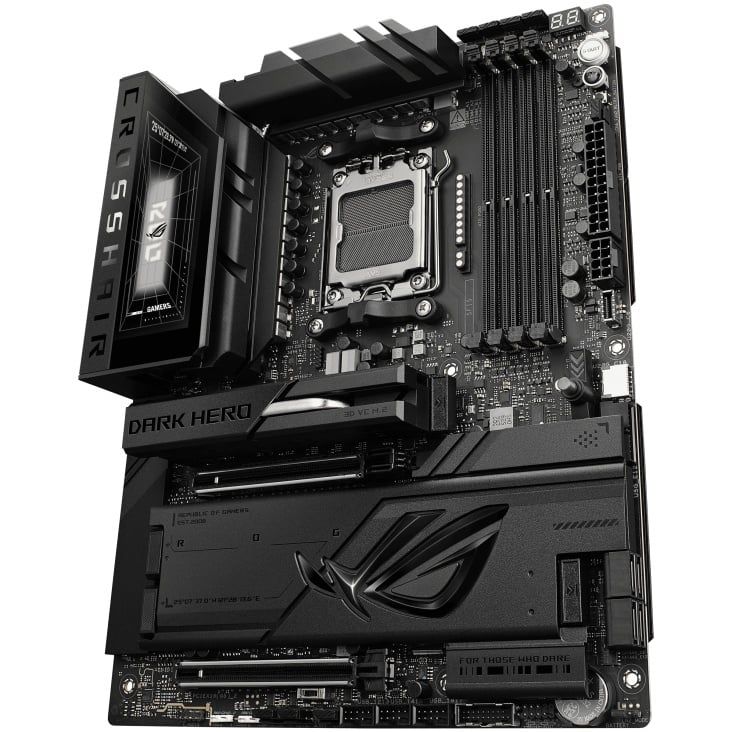

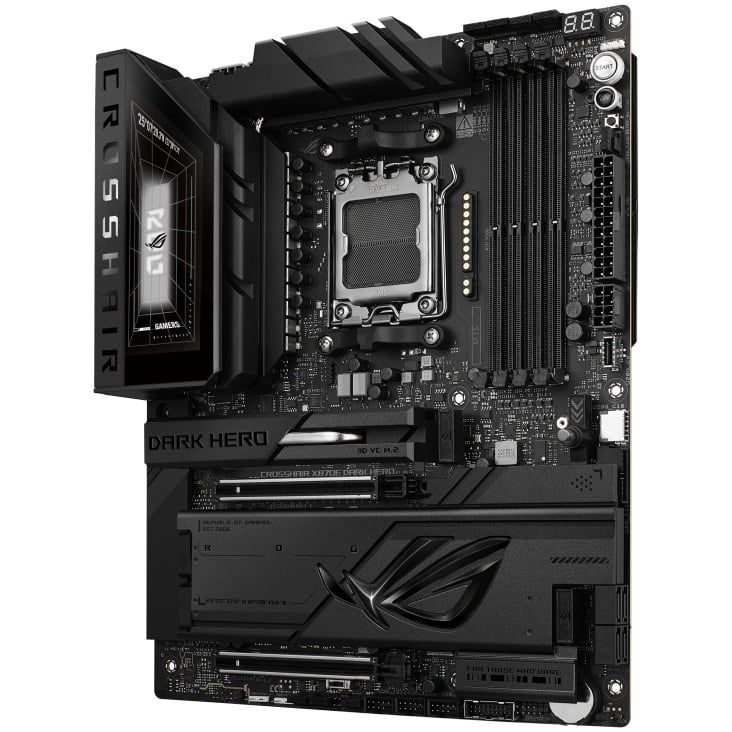

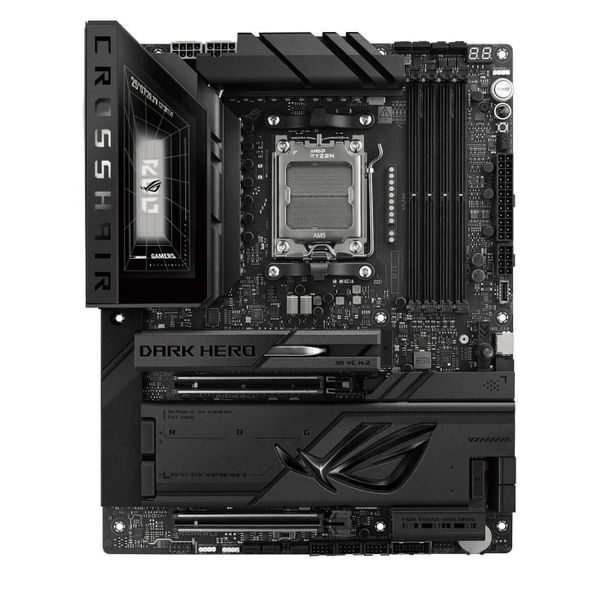

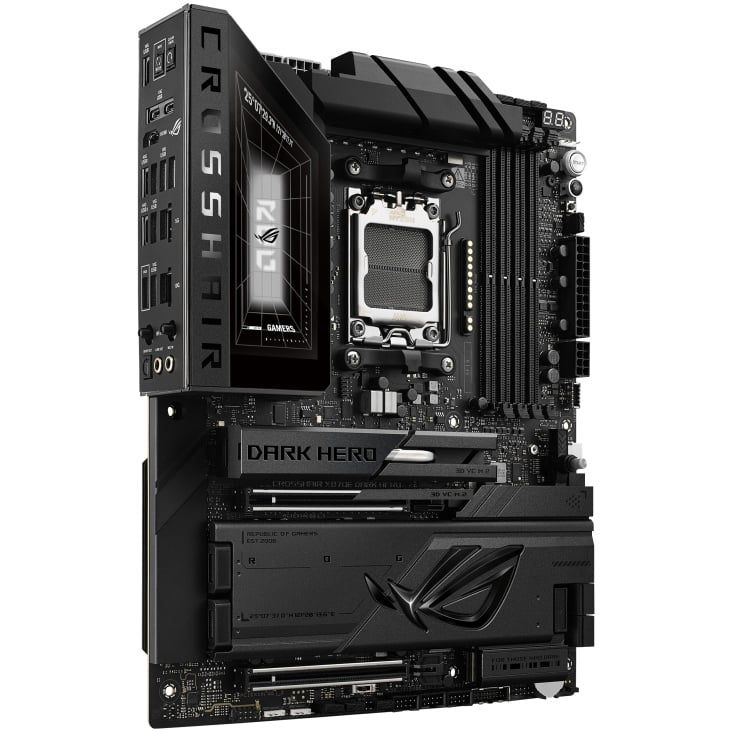

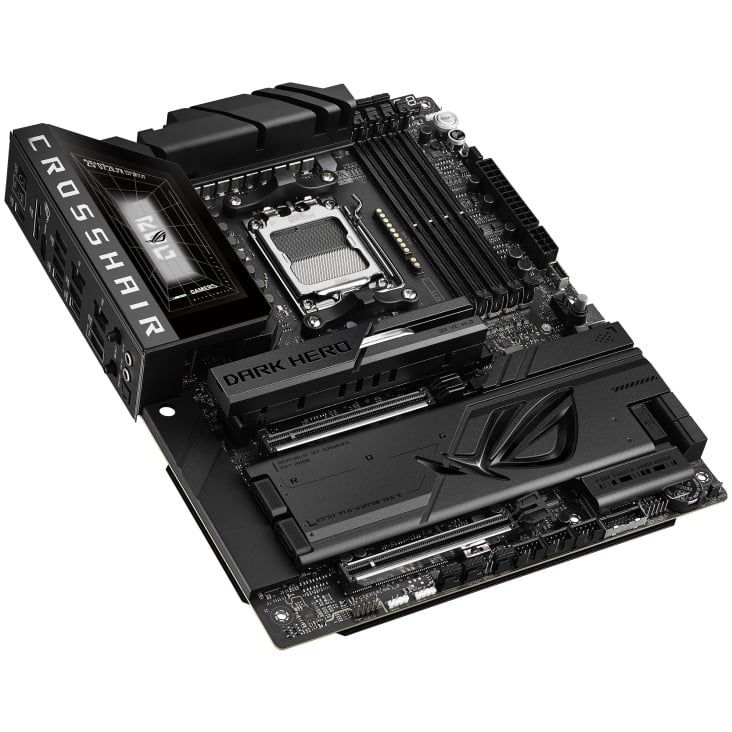

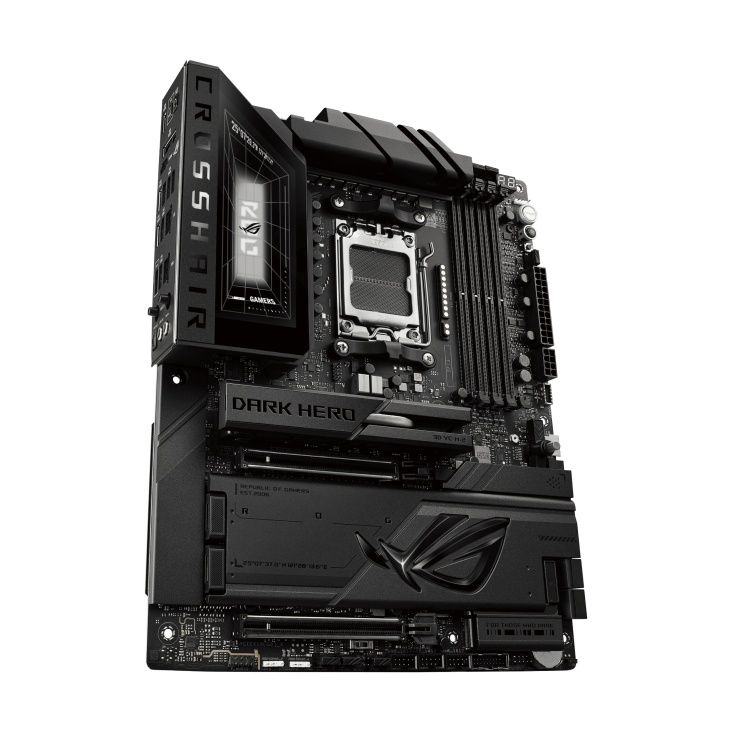

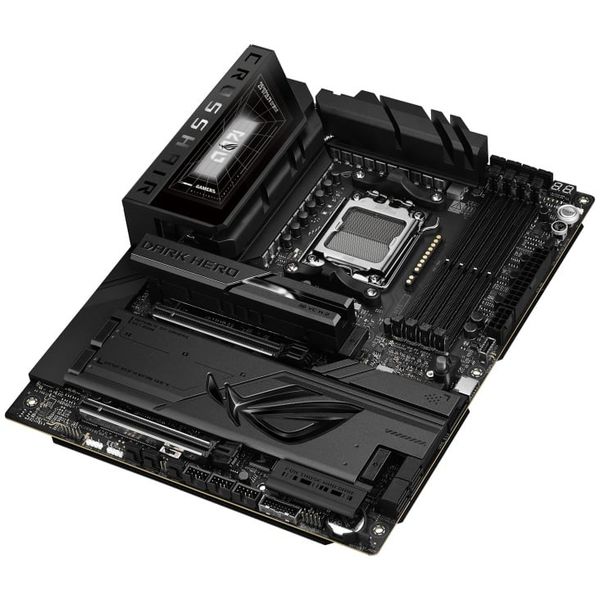

Chi tiết thông số kỹ thuật Mainboard ASUS ROG Crosshair X870E Dark Hero
| Mục | Thông số |
| CPU | AMD Socket AM5 hỗ trợ Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory |
4 x DIMM, tối đa 256GB DDR5; Ryzen 9000: 8600+/8200+ MT/s (OC); Ryzen 8000: 9600+/9200+ MT/s (OC); Ryzen 7000: 8000+ MT/s (OC); ECC & Non-ECC Unbuffered; Dual Channel; EXPO™; DIMM Fit; DIMM Fit Pro; NitroPath DRAM; ASUS AEMP; On-Die ECC
|
| Graphics |
1 x HDMI 2.1 (4K@60Hz); 2 x USB4® 40Gbps Type-C hỗ trợ xuất hình tối đa 4K@60Hz (DisplayPort 1.4a)
|
| Expansion Slots |
Ryzen 9000/7000: 2 x PCIe 5.0 x16 (x16 hoặc x8+x8); Ryzen 8700/8600/8400: 2 x PCIe 4.0 x16 (x8 + PCIe 3.0 x4); Ryzen 8500/8300: 2 x PCIe 4.0 x16 (x4 + PCIe 3.0 x4); hỗ trợ thay đổi băng thông trong BIOS
|
| Storage |
5 x M.2 + 4 x SATA 6Gb/s; Ryzen 9000/7000: M.2 PCIe 5.0; Ryzen 8700/8600/8400: M.2 PCIe 4.0; Chipset: M.2_3 PCIe 4.0 x4 + M.2_4 PCIe 4.0 x4 + M.2_5 PCIe 4.0 x2; hỗ trợ RAID 0/1/5/10; M.2_2 chia băng thông với USB4
|
| RAID | AMD RAIDXpert2; RAID 0/1/5/10 (tùy CPU); SATA từ ASM1162 không hỗ trợ RAID |
| Ethernet | 1 x Realtek 10Gb Ethernet; 1 x Realtek 5Gb Ethernet; ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 7 (MediaTek MT7927) 2x2; hỗ trợ 2.4/5/6GHz; băng thông 320MHz; Bluetooth 5.4 hỗ trợ LE Audio
|
| USB |
Rear: 2 x USB4 40Gbps Type-C + 9 x USB 10Gbps; Front: 2 x USB-C 20Gbps (1 cổng hỗ trợ PD/QC4+ tối đa 60W) + 4 x USB 5Gbps + 6 x USB 2.0
|
| Audio |
ROG SupremeFX ALC4082; ESS ES9219 QUAD DAC; 7.1 Surround; 120dB playback / 110dB recording; 32-bit/384kHz; SupremeFX Shielding; jack mạ vàng; Optical S/PDIF
|
| Back Panel I/O |
2 x USB4 Type-C; 9 x USB 10Gbps; HDMI; Wi-Fi Module; LAN 10Gb + 5Gb; 2 audio jack; Optical S/PDIF; BIOS FlashBack; Clear CMOS
|
| Cooling & Power |
1 x CPU Fan; 1 x CPU OPT; 1 x AIO Pump; 4 x Chassis Fan; 1 x W_PUMP+; AIO Q-Connector; nguồn gồm 24-pin + 2 x 8-pin CPU + 1 x 8-pin PCIe
|
| Internal Connectors |
5 x M.2; 4 x SATA; 2 x USB-C 20Gbps; 2 x USB 5Gbps; 3 x USB 2.0; 3 x ARGB Gen2; Audio Header; Thermal Sensor; System Panel; LN2 Mode
|
| Special Features |
Asynchronous Clock; Extreme OC Kit; FlexKey; LN2 Mode; ReTry; Start Button; Extreme Engine Digi+; 10K Black Metallic Capacitors; MicroFine Alloy Choke
|
| ASUS Q-Design |
M.2 Q-Latch; M.2 Q-Release; M.2 Q-Slide; PCIe Slot Q-Release; Q-Antenna; Q-Code; Q-Connector; Q-Dashboard; Q-LED; Q-Slot
|
| Thermal Design |
DDR5 Fan Holder; ROG Assistant Fan 60mm; 3D VC M.2 Heatsink; M.2 Backplate; VRM Heatsink; Metal Backplate
|
| EZ DIY |
Backplate; BIOS FlashBack; Clear CMOS; ProCool II; Pre-mounted I/O Shield; SafeSlot; SafeDIMM
|
| Lighting | Aura Sync; Addressable Gen 2 Headers |
| Front USB Charging | USB-C 20Gbps hỗ trợ PD3.0 / PPS / QC4+; tối đa 60W; USB Wattage Watcher |
| Software |
ROG CPU-Z; Dolby Atmos; Polymo Lighting II; Armoury Crate; Aura Creator; Fan Xpert 4; GameFirst; WiFi Q-Antenna; MLO Wizard; DriverHub; MB Manager; HWiNFO; AI Advisor; AIDA64; GlideX; Turbo Vcore; Adobe CC Trial; WinRAR Trial
|
| BIOS |
64MB (512Mb) Flash ROM; UEFI AMI BIOS; AI Overclocking; AI Cache Boost; EZ Flash 3; CrashFree BIOS 3; MyHotkey
|
| Manageability | WOL by PME |
| Accessories |
4 x SATA Cable; DDR5 Fan Holder; ROG Assistant Fan; Thermal Pad; WiFi Q-Antenna; Q-Connector; M.2 Q-Slide; ROG Sticker; VIP Card; Bottle Opener; Quick Start Guide
|
| Operating System | Windows 11 |
| Form Factor | ATX — 30.5 × 24.4 cm (12 × 9.6 inch) |
