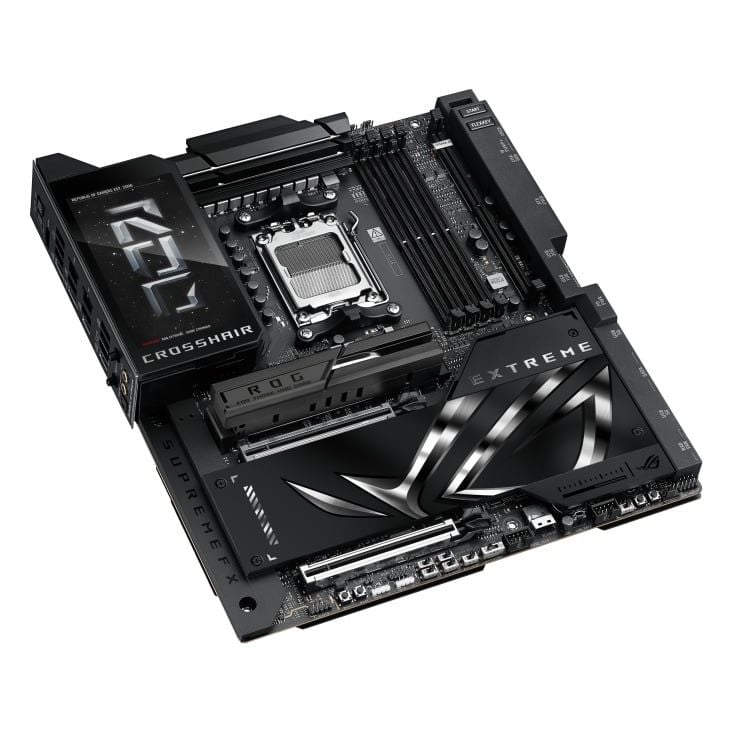

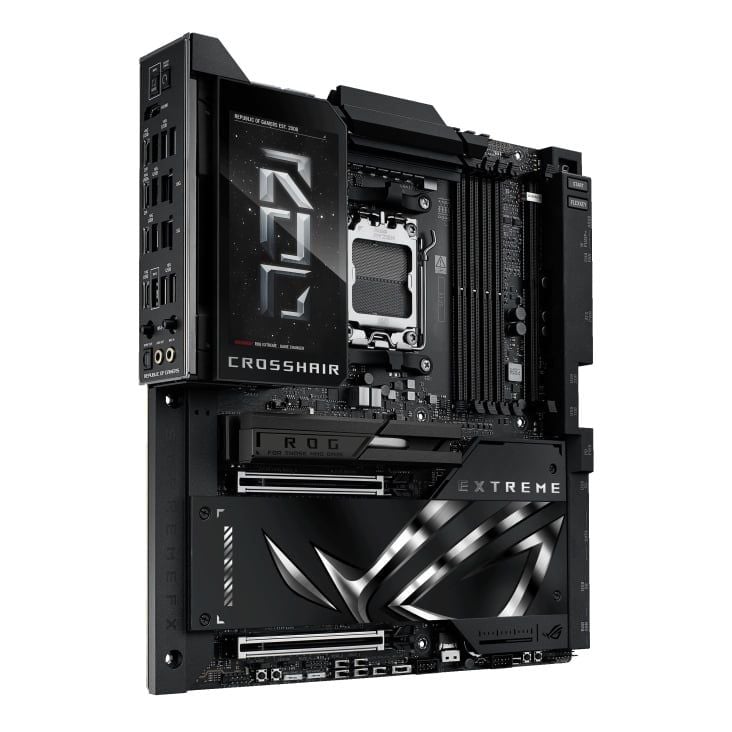

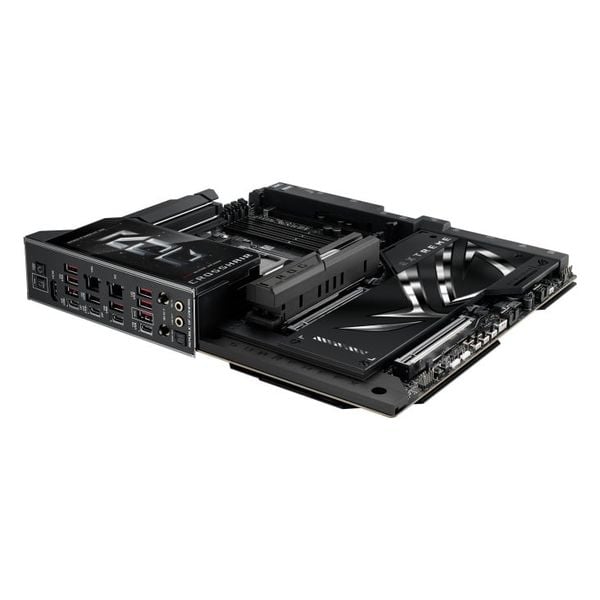

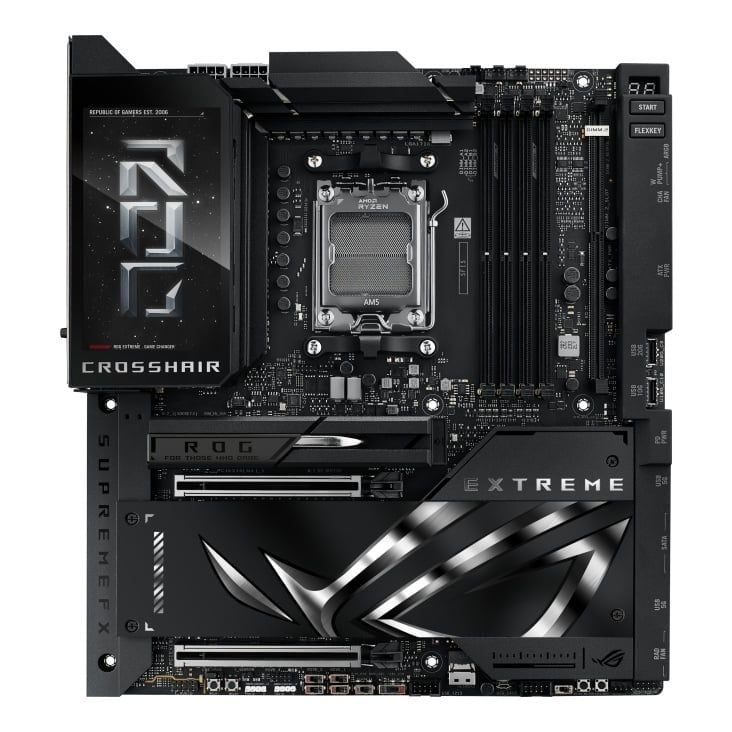

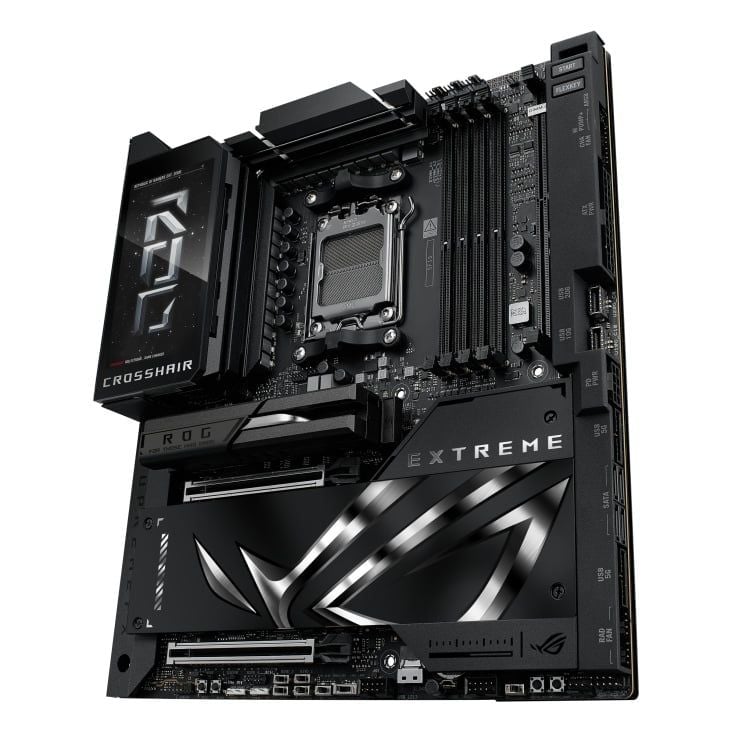

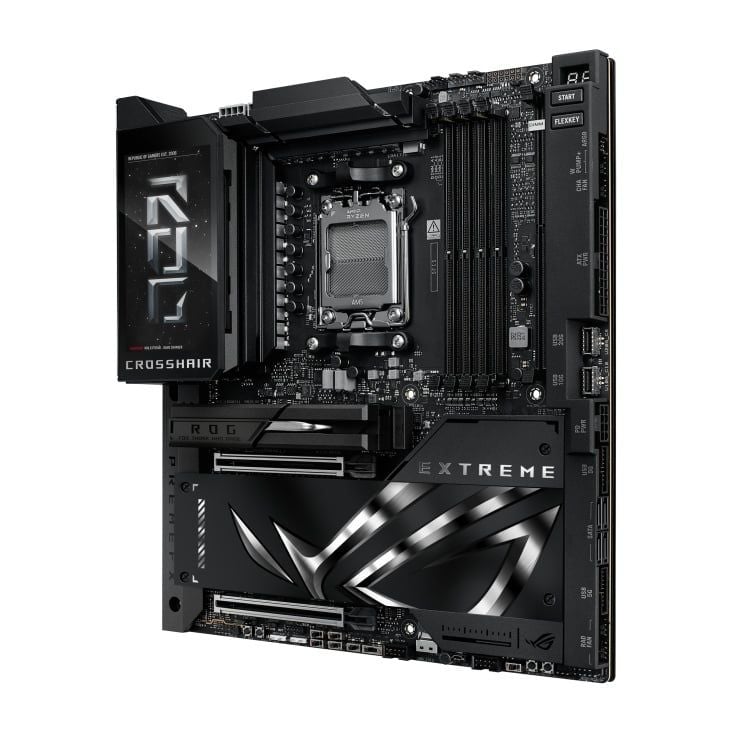

Chi tiết thông số kỹ thuật Mainboard ASUS ROG Crosshair X870E Extreme
| Mục | Thông số |
| CPU | AMD Socket AM5 hỗ trợ Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory |
4 x DIMM, tối đa 256GB DDR5; Ryzen 9000: 8200+ MT/s (OC); Ryzen 8000: 9000+ MT/s (OC); Ryzen 7000: 8000+ MT/s (OC); ECC & Non-ECC Unbuffered; Dual Channel; AMD EXPO™; ASUS AEMP; NitroPath DRAM Technology
|
| Graphics |
1 x HDMI 2.1 (4K@60Hz); 2 x USB4® 40Gbps Type-C xuất hình; tối đa 4K@60Hz qua DisplayPort 1.4a
|
| Expansion Slots |
Ryzen 9000/7000: 2 x PCIe 5.0 x16 (x16 / x8+x8 / x8+x4+x4); Ryzen 8700/8600/8400: 2 x PCIe 4.0 x16 (x8 tổng); Ryzen 8500/8300: 2 x PCIe 4.0 x16 (x4 tổng); hỗ trợ Q-Release Slim
|
| Storage |
Tối đa 5 x M.2 + 1 x SlimSAS + 4 x SATA 6Gb/s; Ryzen 9000/7000: M.2 PCIe 5.0; Ryzen 8000: M.2 PCIe 4.0; DIMM.2 hỗ trợ thêm 2 M.2 PCIe 4.0; SlimSAS PCIe 4.0 x4
|
| RAID |
AMD RAIDXpert2; Ryzen 9000: RAID 0/1/5/10; Ryzen 8000: RAID 0/1; Ryzen 7000: RAID 0/1/10
|
| Ethernet | 1 x Realtek 5Gb Ethernet; 1 x Marvell AQtion 10Gb Ethernet; ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 7 (802.11be) 2x2; hỗ trợ 2.4/5/6GHz; băng thông 320MHz; tốc độ đến 6.5Gbps; Bluetooth 5.4
|
| USB |
Rear: 2 x USB4 40Gbps Type-C + 10 x USB 10Gbps; Front: 1 x USB-C 20Gbps (PD/QC4+ tối đa 60W) + 1 x USB-C 10Gbps + 4 x USB 5Gbps + 4 x USB 2.0
|
| Audio |
ROG SupremeFX ALC4082; 7.1 Surround; ESS ES9219 QUAD DAC; 120dB playback / 110dB recording; 32-bit/384kHz; S/PDIF; LED audio jack; Premium Audio Capacitors
|
| Back Panel I/O |
2 x USB4 Type-C; 10 x USB 10Gbps; 1 x HDMI; Wi-Fi Module; LAN 5Gb + 10Gb; 2 audio jacks; Optical S/PDIF; BIOS FlashBack; Clear CMOS
|
| Cooling & Power |
1 x CPU Fan; 1 x CPU OPT; 2 x Chassis Fan; 2 x Radiator Fan; 2 x W_PUMP+; 1 x VRM Fan; nguồn gồm 24-pin + 2 x 8-pin CPU + 1 x 8-pin PCIe
|
| Internal Connectors |
3 x M.2; 1 x DIMM.2 (2 M.2); 1 x SlimSAS; 4 x SATA; USB-C 20Gbps; USB-C 10Gbps; USB 5Gbps; USB 2.0; Audio header; Thermal Sensor; System Panel
|
| Special Features |
Extreme OC Kit; Extreme Engine Digi+; FlexKey; LN2 Mode; ProbeIt; ReTry; Safe Boot; Start Button; Slow Mode
|
| ASUS Q-Design |
M.2 Q-Latch; Q-Release; Q-Slide; Q-Release Slim; Q-Antenna; Q-Code; Q-Connector; Q-Dashboard; Q-LED; Q-Slot; Q-DIMM.2
|
| Thermal Design |
Fan Bracket; M.2 heatsink; M.2 backplate; VRM heatsink; Metal backplate; 3D VC M.2 Heatsink
|
| EZ DIY |
Backplate; BIOS FlashBack; Clear CMOS; ProCool II; Pre-mounted I/O Shield; SafeSlot; SafeDIMM
|
| Display & Lighting | Aura Sync; Dual BIOS; màn hình LCD màu 5 inch |
| Front USB Charging | USB-C 20Gbps hỗ trợ QC4+/PD3.0; tối đa 60W; USB Wattage Watcher |
| Software |
ROG CPU-Z; Dolby Atmos; Armoury Crate; AIDA64; Aura Creator; Fan Xpert 4; GameFirst; HWiNFO; Power Saving; ASUS AI Advisor; DriverHub; GlideX; Turbo Vcore; Adobe CC Trial
|
| BIOS | 2 x 256Mb Flash ROM; UEFI AMI BIOS; AI Overclocking; EZ Flash 3; CrashFree BIOS 3 |
| Manageability | WOL by PME |
| Accessories |
Cáp ARGB; cáp quạt; SATA; Thermistor; ROG Q-DIMM.2 Heatsink; DDR5 Fan Holder; Fan Kit; WiFi Q-Antenna; Q-Connector; Tool Kit; USB Driver; Quick Start Guide
|
| Operating System | Windows 11 |
| Form Factor | E-ATX — 30.5 × 27.7 cm (12 × 10.9 inch) |
