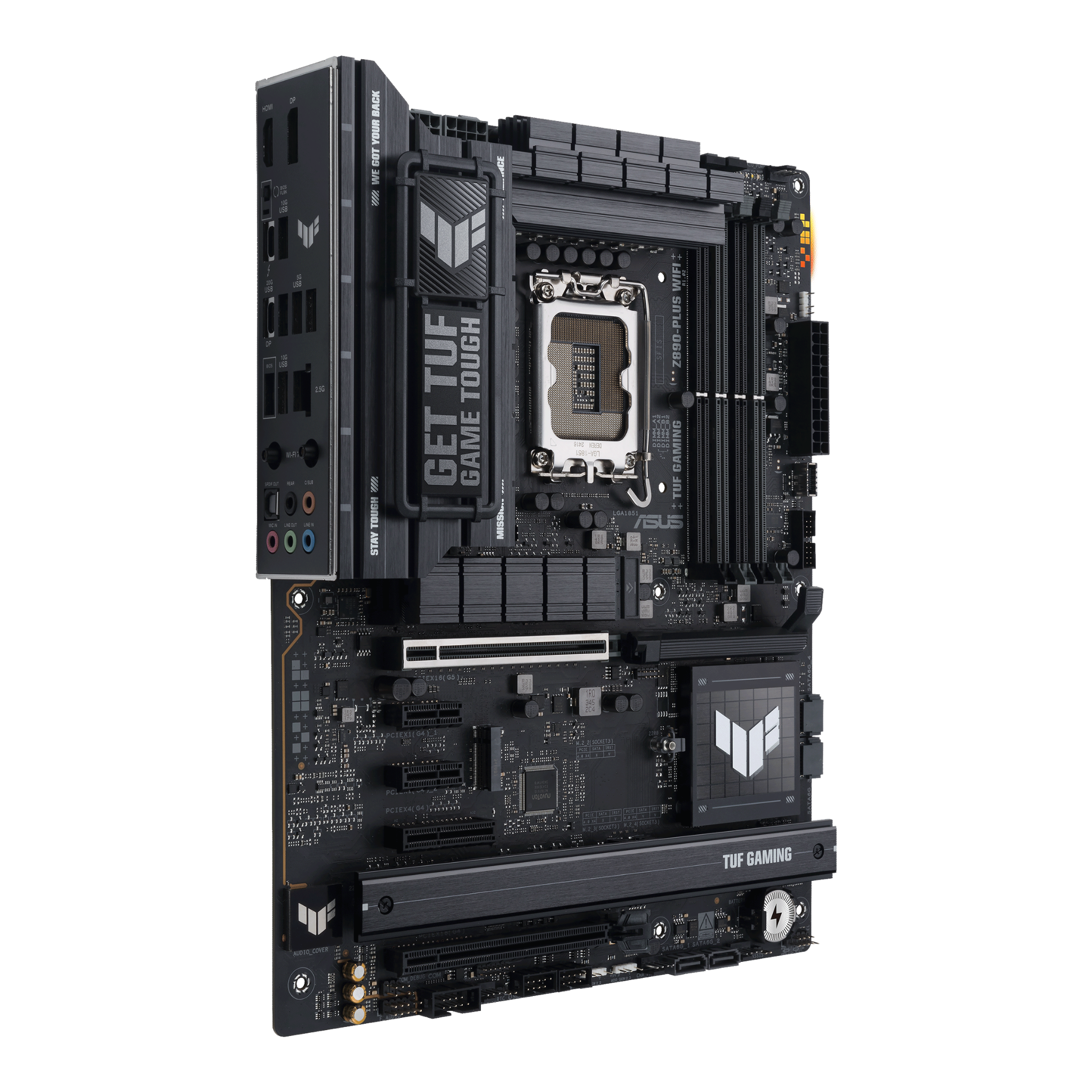

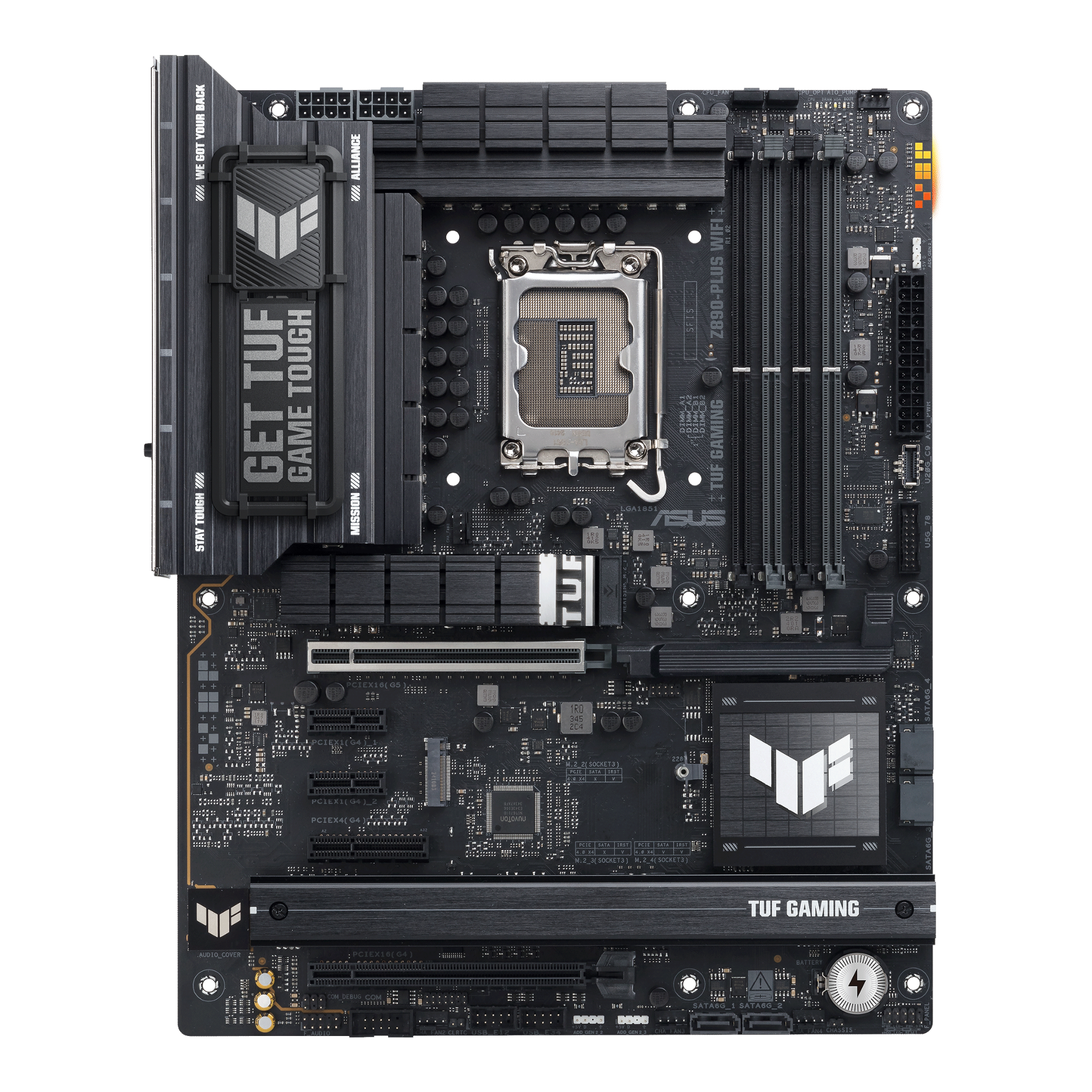

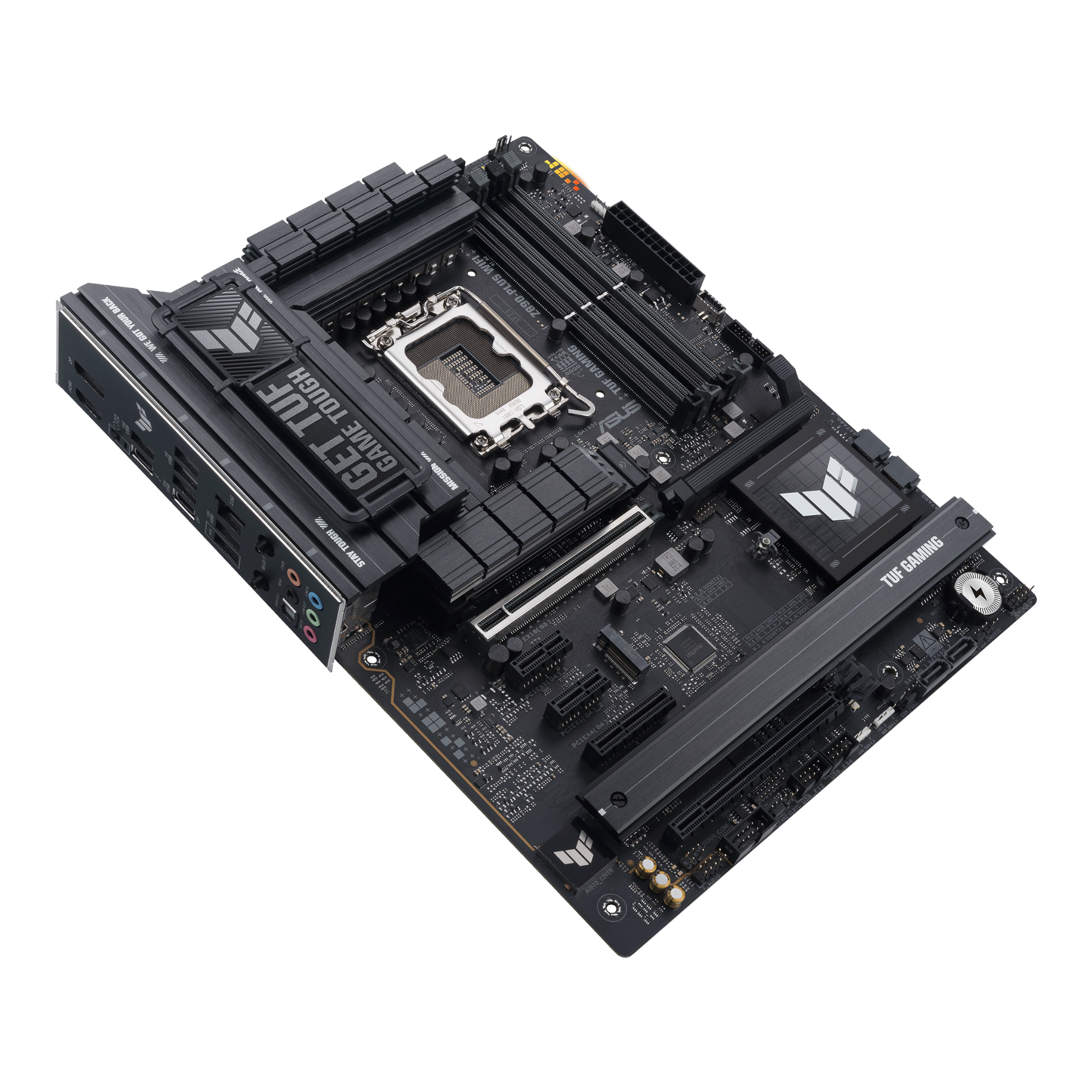

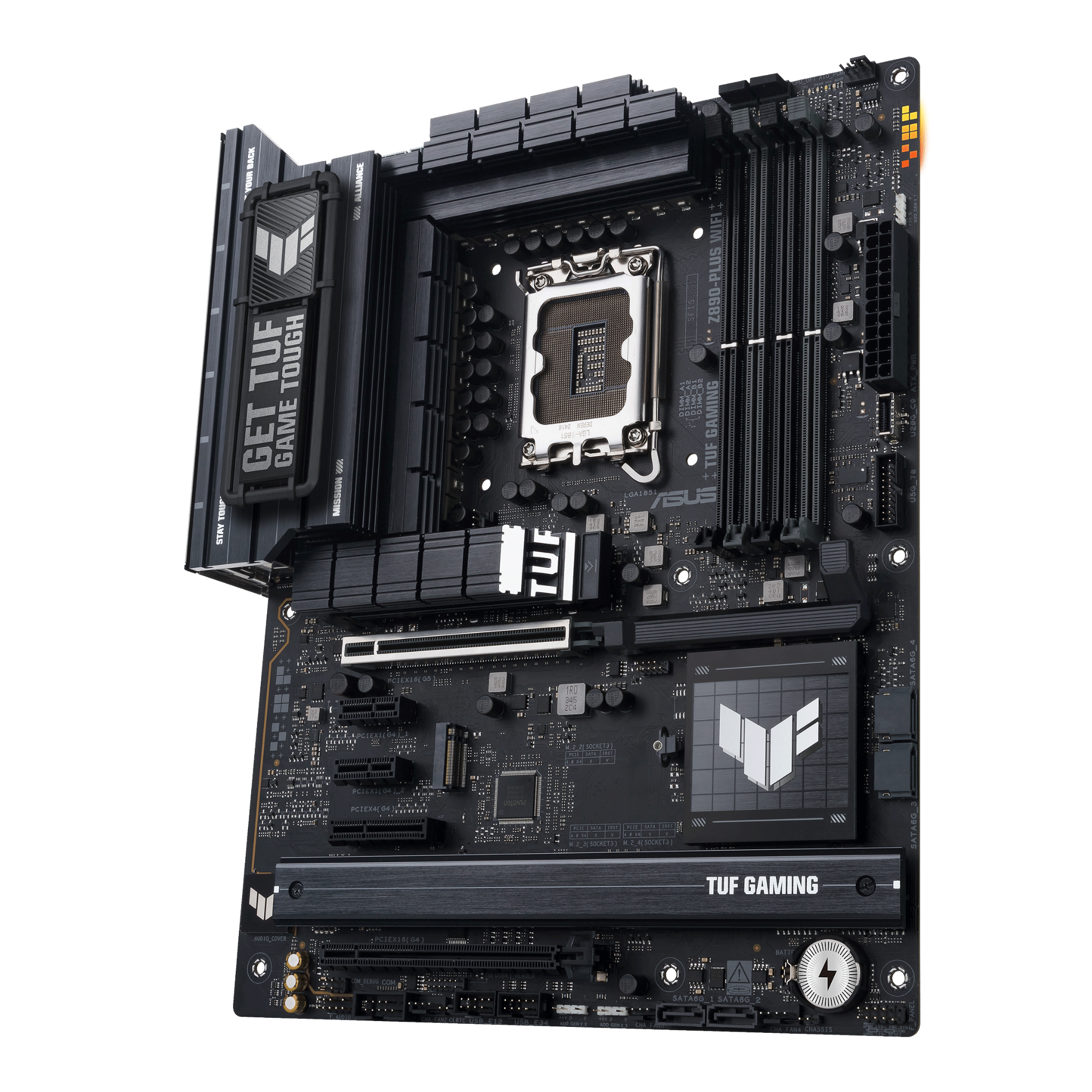

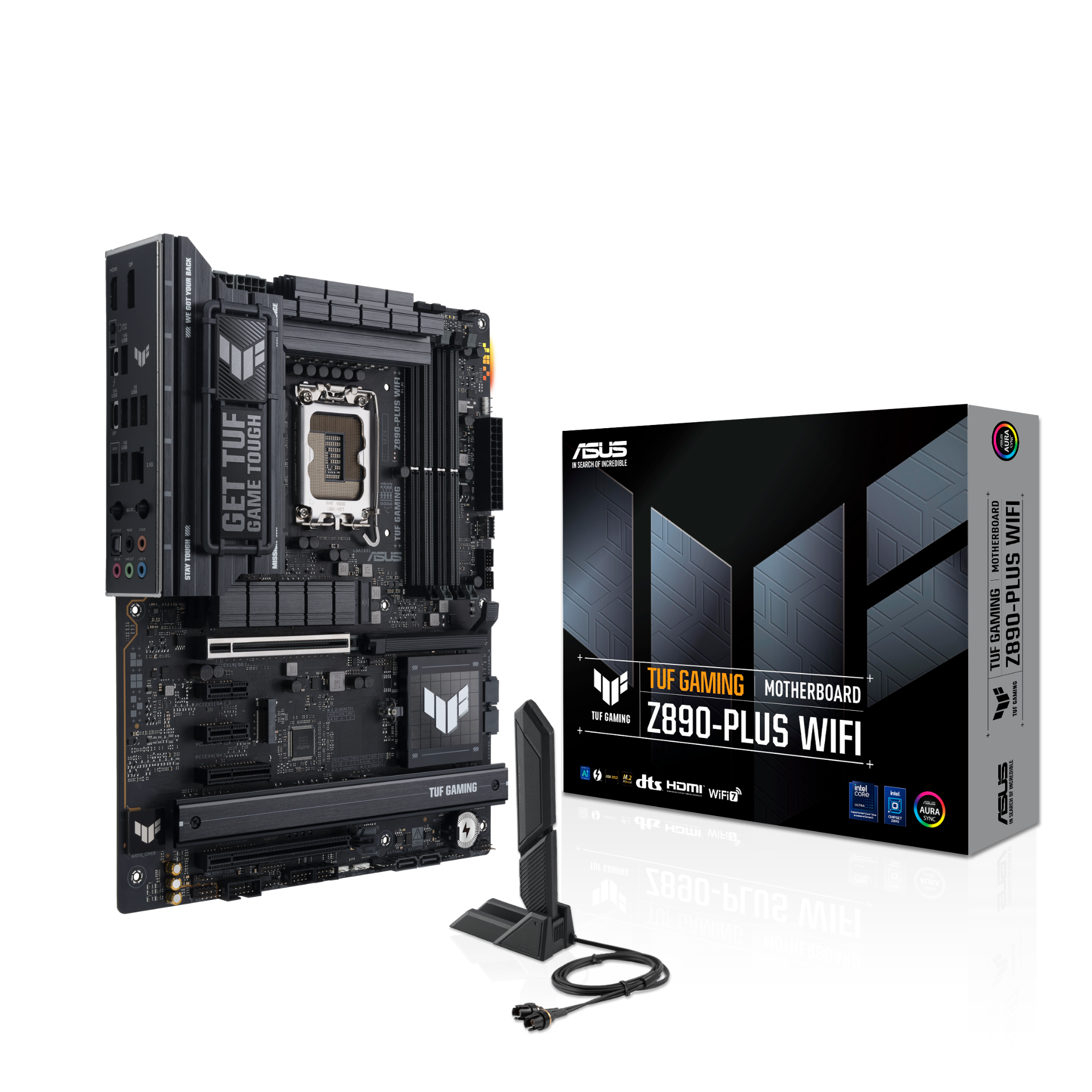

Mainboard Asus TUF GAMING Z890-PLUS WIFI

0 lượt xem |
Thương hiệu: Asus
|
Loại: Mainboard
12,570,000₫
Tiêu đề:
Chọn gói khuyến mãi
Ưu đãi thêm

Nhận ngay nguồn ROG THOR 1000P2 GAMING trị giá 9,800,000đ khi order sớm bộ máy có sử dụng Bo mạch chủ ROG MAXIMUS Z890 EXTREME + tản AIO ROG RYUJIN III 360 ARGB EXTREME + Card đồ họa ROG STRIX RTX4090 O24G GAMING/ ROG STRIX 4080S O16G GAMING

Thời gian chương trình: 10/10/2024 – 24/10/2024

Cam kết bán hàng
  • Hàng chính hãng.Mới 100% Hàng chính hãng.Mới 100%
  • Hỗ trợ trả góp Hỗ trợ trả góp
  • Giao hàng ngay (nội thành HN & TP.HCM) Giao hàng ngay (nội thành HN & TP.HCM)
  • Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS. Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.
Ưu đãi thêm

Nhận ngay nguồn ROG THOR 1000P2 GAMING trị giá 9,800,000đ khi order sớm bộ máy có sử dụng Bo mạch chủ ROG MAXIMUS Z890 EXTREME + tản AIO ROG RYUJIN III 360 ARGB EXTREME + Card đồ họa ROG STRIX RTX4090 O24G GAMING/ ROG STRIX 4080S O16G GAMING

Thời gian chương trình: 10/10/2024 – 24/10/2024

Mô tả sản phẩm

TUF GAMING Z890-PLUS WIFI

Thông số kỹ thuật

Hãng sản xuấtASUS
SeriesTUF GAMING
ModelTUF GAMING Z890-PLUS WIFI (90MB1IQ0-M0EAY0)
CPUSupport Intel Core Ultra Processors(series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z890 Chipset
Memory4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Graphics1 x DisplayPort**
1 x HDMI port***
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs****
1 x USB 20Gbps port supports USB Type-C display output*****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
****** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion SlotsIntel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
StorageTotal Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless & BluetoothWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USBRear USB (Total 8 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
AudioRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

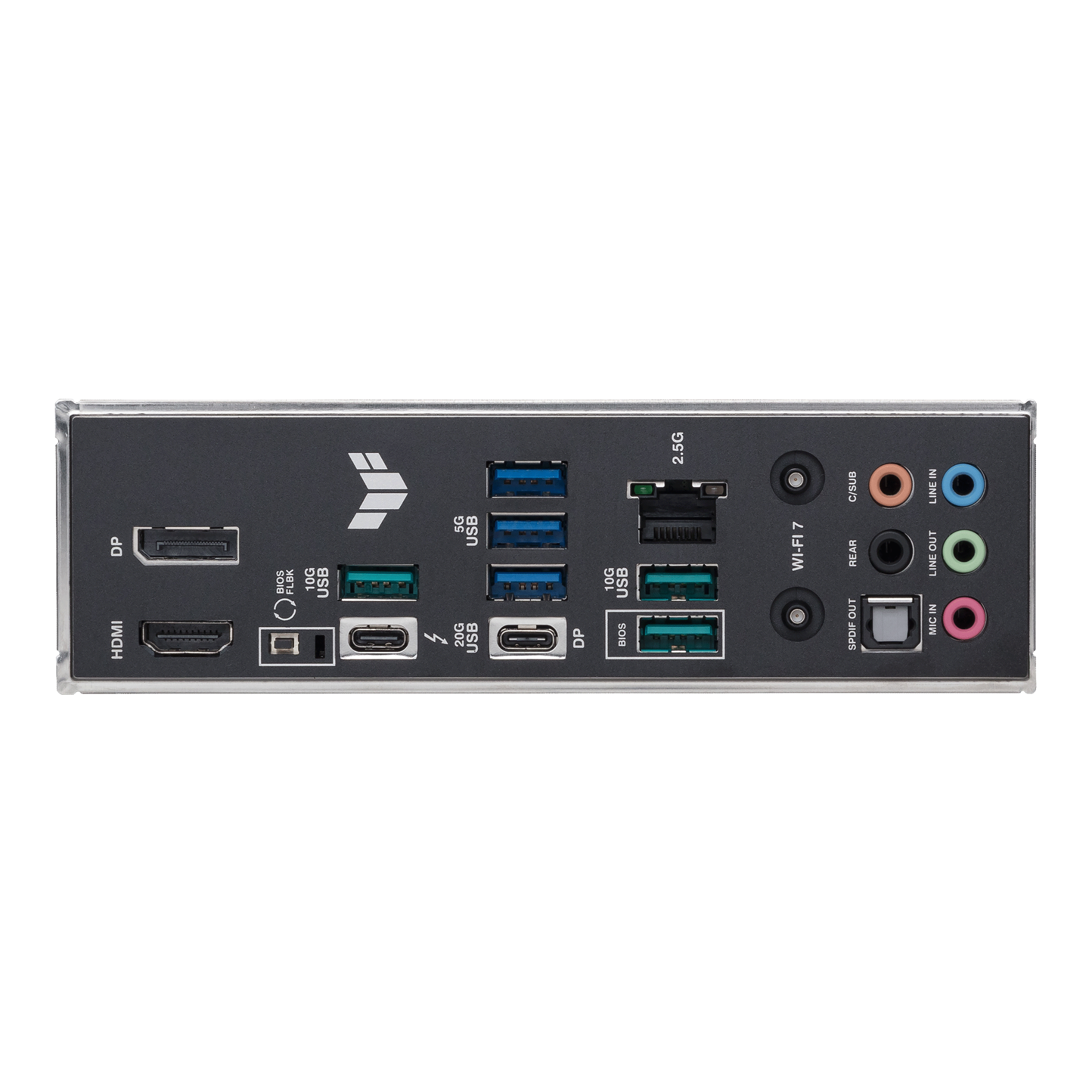

Back Panel I/O Ports1 x Thunderbolt 4 USB Type-C port
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Internal I/O ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Operating SystemWindows 11 (22H2 & later)
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Thông số kỹ thuật
