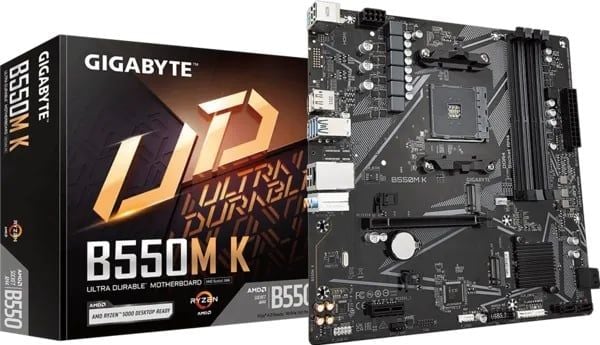

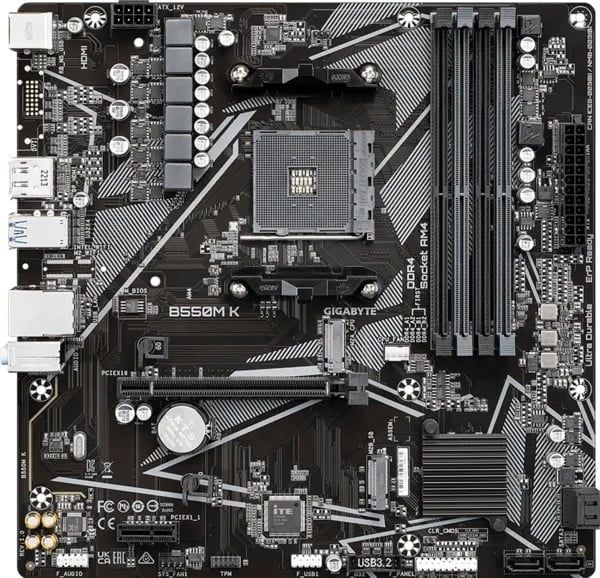

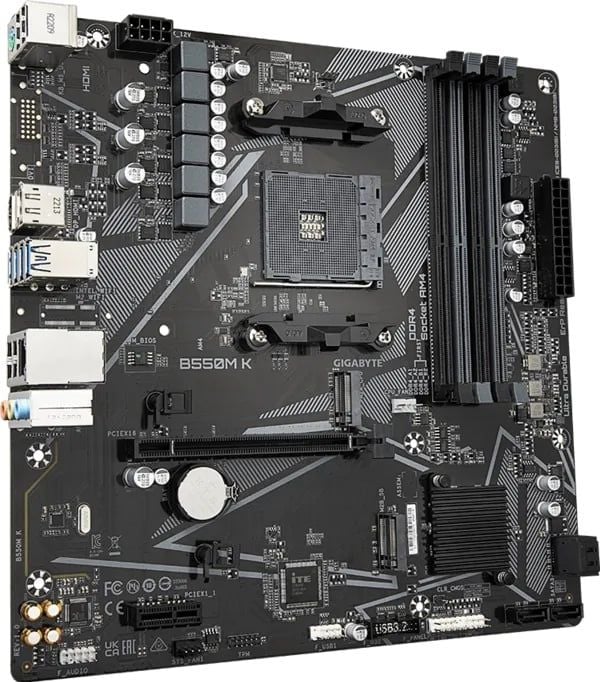

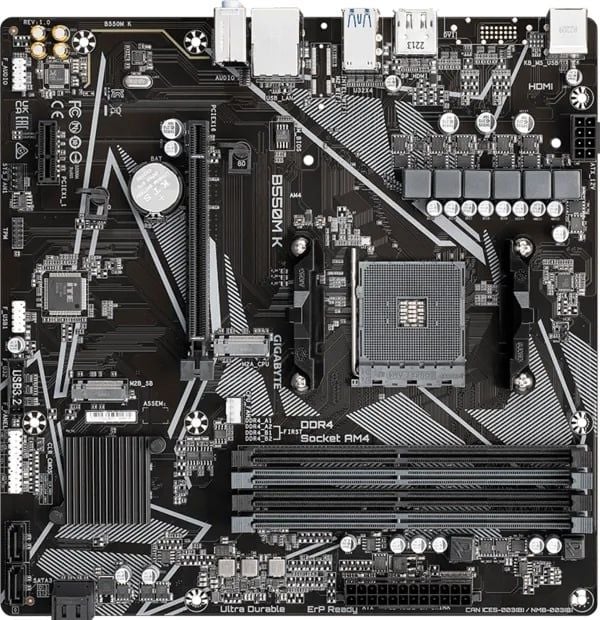

Chi tiết thông số kỹ thuật Mainboard Gigabyte B550M K DDR4
| Thông số | Chi tiết |
| CPU | AMD Socket AM4 |
| CPU support |
AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series
|
| Chipset | AMD B550 |
| Memory slots | 4 x DDR4 DIMM sockets |
| Maximum memory | Up to 128 GB (32 GB single DIMM capacity) |
| Memory support |
DDR4 4733(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C)/3400(O.C.)/3200/2933/2667/2400/2133 MHz
|
| Memory architecture | Dual channel |
| ECC memory support | ECC Un-buffered DIMM 1Rx8/2Rx8 |
| ECC mode note | ECC support varies by CPU |
| Non-ECC memory support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP support | Supported |
| Graphics processor | Integrated AMD Radeon™ Graphics |
| DisplayPort output | 1 x DisplayPort, max resolution 5120x2880@60 Hz |
| DisplayPort version | DisplayPort 1.4 |
| HDMI output | 1 x HDMI port, max resolution 4096x2160@60 Hz |
| HDMI version | HDMI 2.1 |
| HDR support | Supported |
| HDCP support | HDCP 2.3 |
| Maximum shared memory | 16 GB |
| Audio codec | Realtek® Audio CODEC |
| Audio type | High Definition Audio |
| Audio channels | 2/4/5.1/7.1-channel |
| LAN chip | Realtek® GbE LAN |
| LAN speed | 1 Gbps/100 Mbps/10 Mbps |
| PCIe x16 slot | 1 x PCI Express x16 |
| PCIe x16 mode (Ryzen 5000/3000) | PCIe 4.0 x16 |
| PCIe x16 mode (Ryzen G-Series) | PCIe 3.0 x16 |
| PCIe x1 slot | 1 x PCI Express x1 |
| PCIe x1 mode | PCIe 3.0 x1 |
| CPU M.2 slot | 1 x M.2 Socket 3 (M2A_CPU), type 2280 |
| M.2 support (Ryzen 5000/3000) | SATA and PCIe 4.0 x4/x2 SSDs |
| M.2 support (Ryzen G-Series) | SATA and PCIe 3.0 x4/x2 SSDs |
| Chipset M.2 slot | 1 x M.2 Socket 3 (M2B_SB), type 2280 |
| Chipset M.2 mode | PCIe 3.0 x2 SSDs |
| SATA ports | 4 x SATA 6Gb/s |
| SATA RAID support | RAID 0, 1, 10 |
| Rear USB 3.2 Gen 1 | 4 ports |
| Internal USB 3.2 Gen 1 | 2 ports |
| USB 2.0/1.1 ports | 6 ports |
| ATX power connector | 1 x 24-pin |
| CPU power connector | 1 x 8-pin ATX 12V |
| CPU fan header | 1 |
| System fan header | 1 |
| Internal M.2 connectors | 2 x M.2 Socket 3 |
| Front panel header | 1 |
| Front audio header | 1 |
| USB 3.2 Gen 1 header | 1 |
| USB 2.0 header | 1 |
| TPM header | 1 |
| Clear CMOS jumper | 1 |

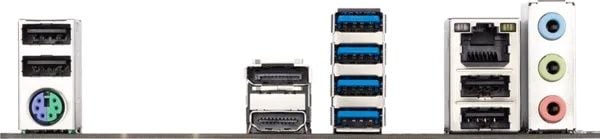

| PS/2 port | 1 x keyboard/mouse port |
| Rear DisplayPort | 1 |
| Rear HDMI | 1 |
| Rear USB 3.2 Gen 1 | 4 |
| Rear USB 2.0/1.1 | 4 |
| RJ-45 LAN port | 1 |
| Audio jacks | 3 |
| I/O controller | iTE® I/O Controller Chip |
| Voltage detection | Supported |
| Temperature detection | Supported |
| Fan speed detection | Supported |
| Fan fail warning | Supported |
| Fan speed control | Supported |
| BIOS flash | 1 x 128 Mbit flash |
| BIOS type | Licensed AMI UEFI BIOS |
| BIOS standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| APP Center | Supported |
| @BIOS | Supported |
| EasyTune | Supported |
| Smart Backup | Supported |
| System Information Viewer | Supported |
| Q-Flash | Supported |
| Antivirus software | Norton® Internet Security (OEM version) |
| LAN software | LAN bandwidth management software |
| OS support | Windows 11 64-bit |
| OS support | Windows 10 64-bit |
| Form factor | Micro ATX |
| Dimensions | 24.4cm x 24.4cm |
