| Loại sản phẩm | Mainboard |
| Thương hiệu | Gigabyte |

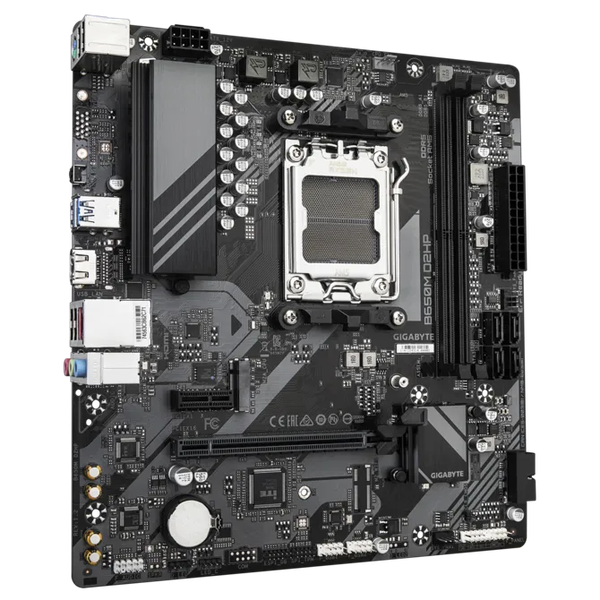

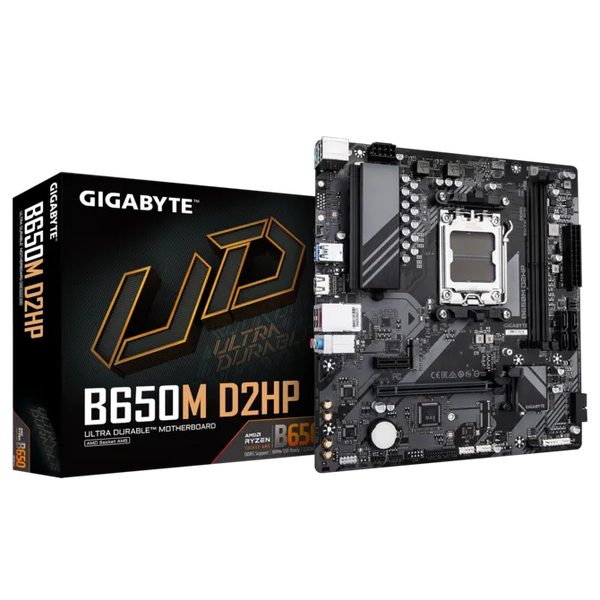

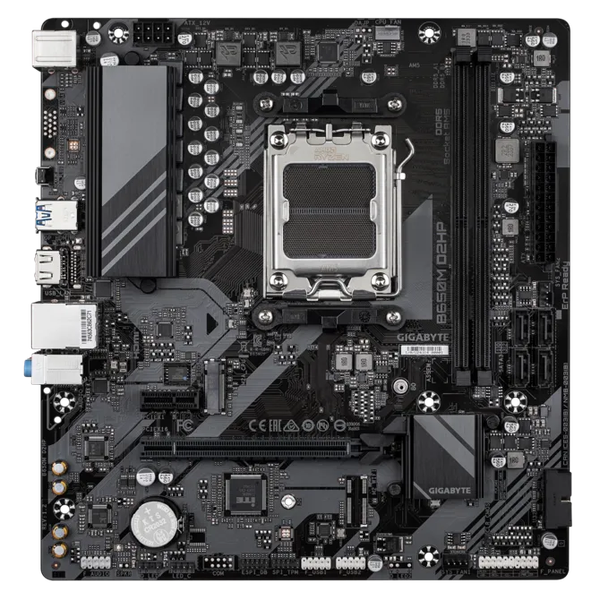

| Model | B650M D2HP |
| Hỗ trợ Socket | AMD Socket AM5, support for: |
| AMD Ryzen™ 9000 Series Processors/ | |
| AMD Ryzen™ 8000 Series Processors/ | |
| AMD Ryzen™ 7000 Series Processors | |
| Chipset | AMD B650 |
| Hỗ trợ bộ nhớ | 2 x DIMM slots, Max. 128GB, DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Khe mở rộng | 1 x PCI Express x16 slot, integrated in the CPU: |
| - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode | |
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Chipset: | |
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Srorage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3,M key,type 2580/2280 SSDs: |
| - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Chipset: | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Mạng Ethernet | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bluetooth, không dây | - |
| USB | CPU: |
| - 2 x USB 3.2 Gen 1 ports on the back panel | |
| - 1 x USB 2.0/1.1 port on the back panel | |
| Chipset: | |
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| - 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Âm thanh | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |

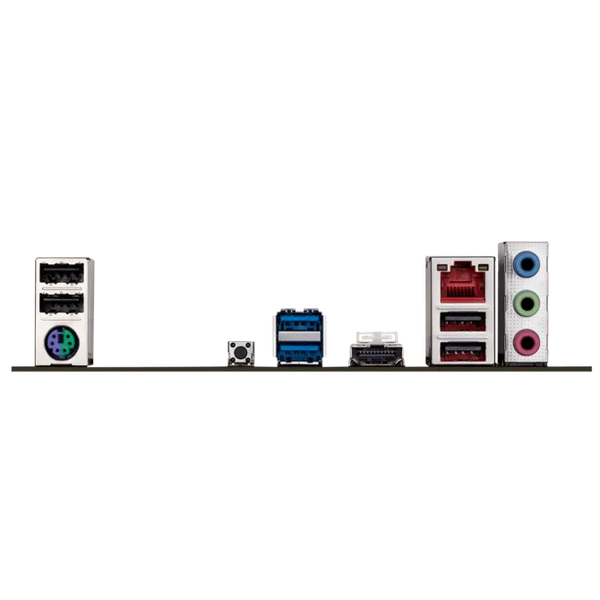

| Cổng I/O mặt sau | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x Q-Flash Plus button | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Đầu nối I/O bên trong | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Clear CMOS jumper | |
| 1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Hệ điều hành | Windows® 11 , Windows® 10 64-bit |
| Yếu tố hình thức | Micro ATX Form Factor; 24.0cm x 22.5cm |
