Mô tả sản phẩm

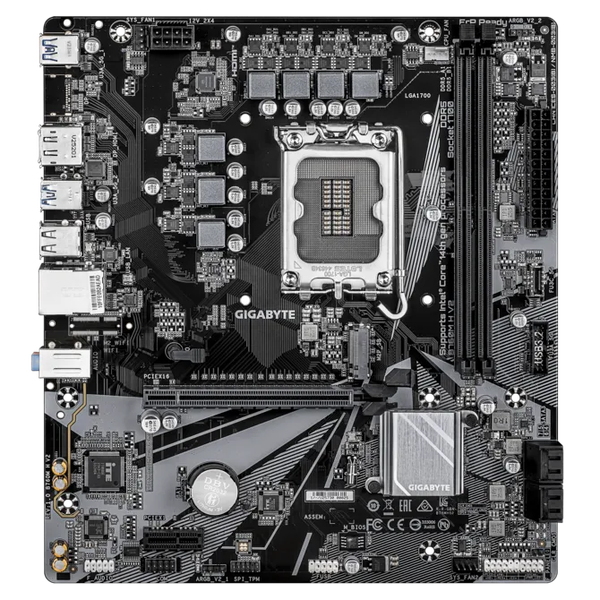

Mainboard Gigabyte B760M H V2 DDR5
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Gigabyte |
| CPU hỗ trợ | Intel |
| Chipset | B760 |
| RAM hỗ trợ | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Khe cắm mở rộng | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Ổ cứng hỗ trợ | Chipset: |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |

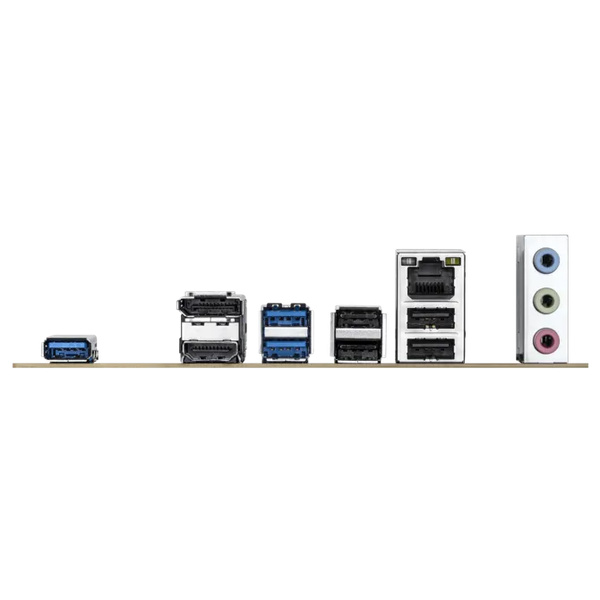

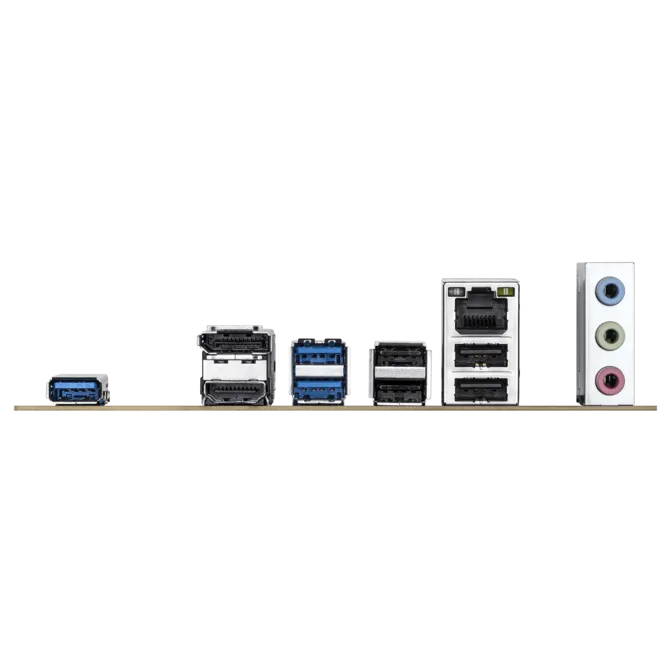

| Cổng kết nối (Back Panel) | 1 x DisplayPort (Note) |
| 1 x HDMI port (Note) | |
| 3 x USB 3.2 Gen 1 port | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| LAN / Wireless | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 22.0cm |
