| Thông số | Chi tiết |
| CPU | AMD Socket AM5 |
| CPU support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory support | DDR5 8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C)/6200(O.C)/6000(O.C)/5800(O.C)/5600(O.C)/5200/4800/4400 MT/s |
| Memory slots | 4 x DDR5 DIMM sockets |
| Maximum memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory architecture | Dual channel |
| Non-ECC memory support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| AMD EXPO support | Supported |
| XMP support | Supported |
| Graphics processor | Integrated AMD Radeon™ Graphics |
| HDMI output | 1 x HDMI port, max resolution 4096x2160@60 Hz |
| HDMI version | HDMI 2.1 |
| HDCP support | HDCP 2.3 |
| HDR support | Supported |
| Audio codec | Realtek® ALC1220 CODEC |
| DSD audio support | Back panel line out jack supports DSD audio |
| Audio type | High Definition Audio |
| Audio channels | 2/4/5.1/7.1-channel |
| S/PDIF support | Supported |
| LAN chip | Realtek® 5GbE LAN |
| LAN speed | 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
| Wireless module | Realtek® Wi-Fi 7 RTL8922AE |
| Wi-Fi standards | 802.11 a/b/g/n/ac/ax |
| Wi-Fi bands | 2.4/5/6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi bandwidth | 11be 160MHz |
| PCIe x16 slot | 1 x PCI Express x16 (PCIEX16) |
| PCIe mode (Ryzen 9000/7000) | PCIe 5.0 x16 |
| PCIe mode (Ryzen 8000 Phoenix 1) | PCIe 4.0 x8 |
| PCIe mode (Ryzen 8000 Phoenix 2) | PCIe 4.0 x4 |
| Secondary PCIe slot | 1 x PCI Express x16, PCIe 4.0 x4 |
| PCIEX4 bandwidth note | Shares bandwidth with M2D_SB |
| M.2 slot (M2A_CPU) | Socket 3, type 25110/22110/2580/2280 |
| M2A support (Ryzen 9000/7000) | PCIe 5.0 x4/x2 SSDs |
| M2A support (Ryzen 8000) | PCIe 4.0 x4/x2 SSDs |
| M.2 slot (M2B_CPU) | Socket 3, type 22110/2280 |
| M2B support (Ryzen 9000/7000) | PCIe 5.0 x4/x2 SSDs |
| M2B support (Ryzen 8000 Phoenix 1) | PCIe 4.0 x4/x2 SSDs |
| M2B limitation | Unavailable with Ryzen™ 8000 Phoenix 2 processors |
| Chipset M.2 slots | 2 x M.2 connectors (M2C_SB, M2D_SB) |
| Chipset M.2 mode | PCIe 4.0 x4/x2 SSDs |
| SATA ports | 2 x SATA 6Gb/s |
| NVMe RAID support | RAID 0, 1, 5, 10 |
| RAID 5 support note | RAID 5 only available on Ryzen™ 9000 Series |
| SATA RAID support | RAID 0, 1 |
| Rear USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 2 |
| Rear USB 3.2 Gen 2 Type-A | 2 ports (red) |
| Rear USB 3.2 Gen 1 | 4 ports |
| Rear USB 2.0/1.1 | 4 ports |
| Internal USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 2x2 |
| Internal USB 3.2 Gen 1 | 2 ports |
| Internal USB 2.0/1.1 | 4 ports |
| ATX power connector | 1 x 24-pin |
| CPU power connector | 1 x 8-pin ATX 12V |
| Additional CPU power | 1 x 4-pin ATX 12V |
| CPU fan header | 1 |
| CPU pump/fan header | 1 |
| System fan headers | 4 |
| System pump/fan headers | 2 |
| Addressable RGB headers | 3 x ARGB Gen2 |
| RGB LED header | 1 |
| Internal M.2 connectors | 4 x M.2 Socket 3 |
| Front panel header | 1 |
| Front audio header | 1 |
| USB Type-C header | 1 x USB 3.2 Gen 2x2 |
| USB 3.2 Gen 1 header | 1 |
| USB 2.0 headers | 2 |
| Noise detection header | 1 |
| TPM header | 1 |
| Q-Flash Plus button | 1 |
| Power button | 1 |
| Reset button | 1 |
| Reset jumper | 1 |
| Temperature sensor headers | 2 |
| Clear CMOS jumper | 1 |

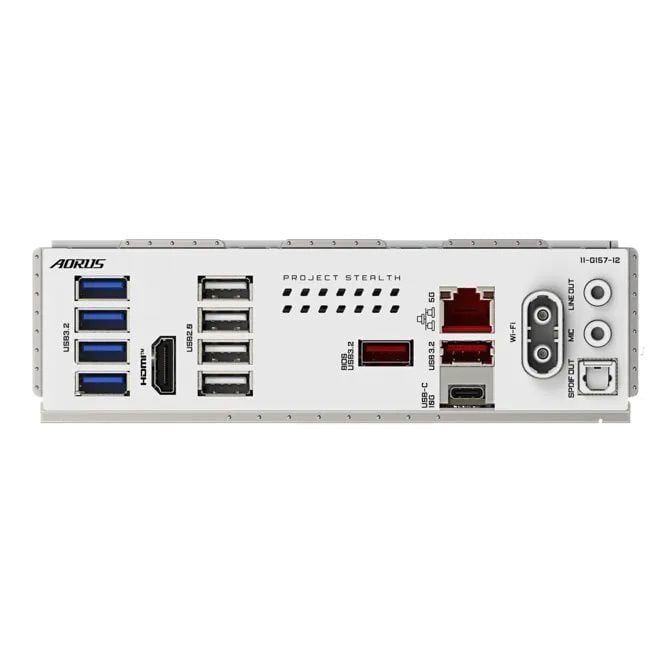

| Rear HDMI | 1 |
| Rear antenna connectors | 2 x 2T2R |
| Rear USB Type-C | 1 |
| Rear USB 3.2 Gen 2 Type-A | 2 |
| Rear USB 3.2 Gen 1 | 4 |
| Rear USB 2.0/1.1 | 4 |
| RJ-45 LAN port | 1 |
| Optical S/PDIF Out | 1 |
| Audio jacks | 2 |
| I/O controller | iTE® I/O Controller Chip |
| Voltage detection | Supported |
| Temperature detection | Supported |
| Fan speed detection | Supported |
| Water cooling flow detection | Supported |
| Fan fail warning | Supported |
| Fan speed control | Supported |
| BIOS flash | 1 x 512 Mbit flash |
| BIOS type | Licensed AMI UEFI BIOS |
| BIOS standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| GCC support | GIGABYTE Control Center supported |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Smart Backup | Supported |
| Antivirus software | Norton® Internet Security (OEM version) |
| OS support | Windows 11 64-bit |
| Form factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
