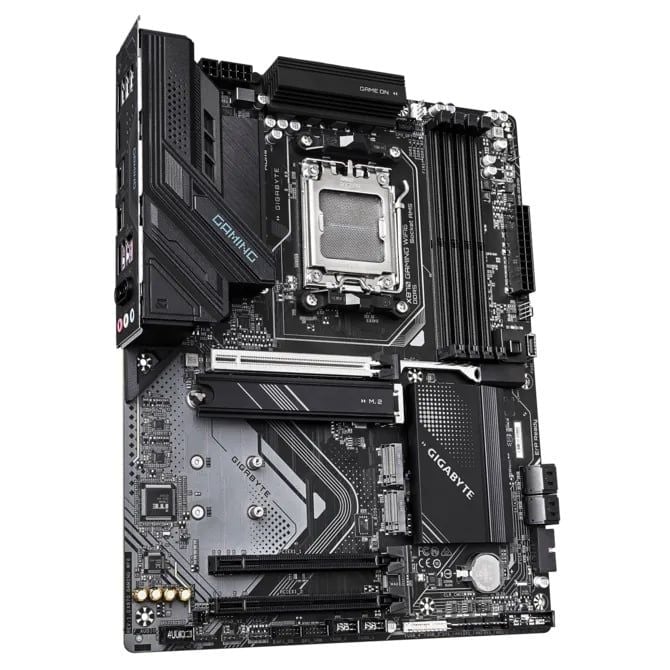

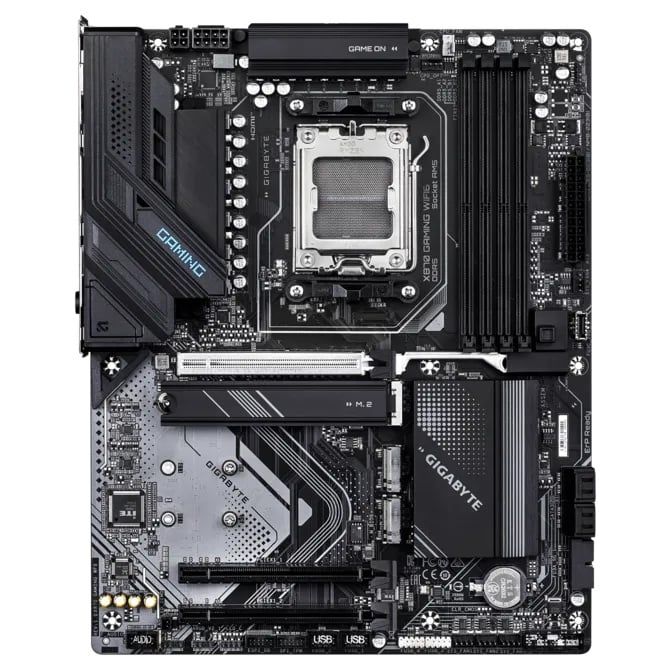

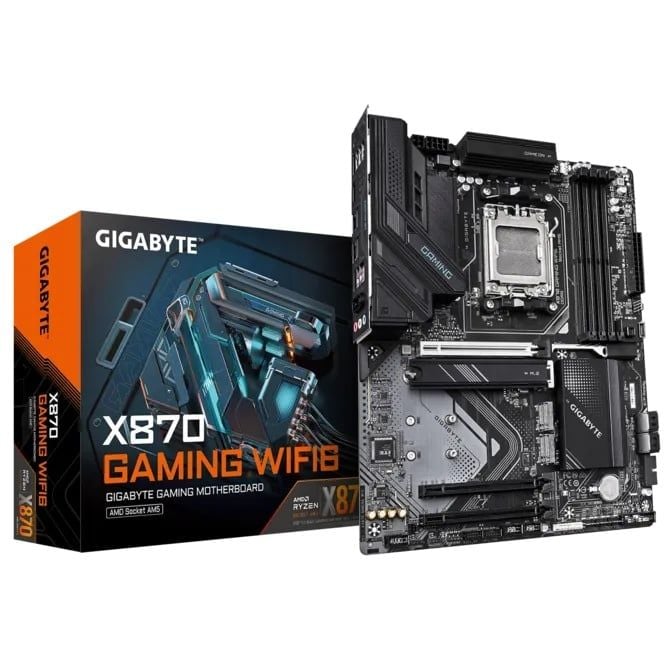

Chi tiết thông số kỹ thuật Mainboard Gigabyte X870 GAMING WiFi 6
| Thông số | Chi tiết |
| CPU |
AMD Socket AM5, support for AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series Processors
|
| CPU | Go to GIGABYTE's website for the latest CPU support list |
| Chipset | AMD X870 |
| Memory |
Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
|
| Memory |
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
|
| Memory | Dual channel memory architecture |
| Memory |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
| Memory | Support for AMD EXPO™ and XMP memory modules |
| Memory |
CPU and memory configuration may affect supported memory types and speed
|
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller
|
| Onboard Graphics |
2 x USB4® USB Type-C® ports supporting DisplayPort output up to 3840x2160@240Hz
|
| Onboard Graphics | Support for DisplayPort 1.4 and HDR |
| Onboard Graphics | 1 x HDMI port supporting maximum resolution 4096x2160@60Hz |
| Onboard Graphics | Support for HDMI 2.1, HDCP 2.3, HDR |
| Onboard Graphics | Support native HDMI 2.1 TMDS compatible ports |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel audio |
| Audio | Audio jack functionality configurable through audio software |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE |
| Wireless | Support WiFi a/b/g/n/ac/ax on 2.4GHz and 5GHz bands |
| Wireless | Bluetooth 5.3 |
| Wireless | Support for 11ax 80MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot integrated in CPU |
| Expansion Slots | Ryzen™ 9000/7000 supports PCIe 5.0 x16 |
| Expansion Slots | Ryzen™ 8000 Phoenix 1 supports PCIe 4.0 x8 |
| Expansion Slots | Ryzen™ 8000 Phoenix 2 supports PCIe 4.0 x4 |
| Expansion Slots | PCIEX16 only supports graphics card or NVMe SSD |
| Expansion Slots | 2 x PCI Express x16 slots supporting PCIe 3.0 x1 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU) supporting PCIe 5.0 x4/x2 SSDs |
| Storage Interface | 1 x M.2 connector (M2C_SB) supporting PCIe 4.0 x2 SSDs |
| Storage Interface | 1 x M.2 connector (M2B_SB) supporting PCIe 4.0 x4/x2 SSDs |
| Storage Interface | M2B_SB shares bandwidth with M2C_SB |
| Storage Interface | 4 x SATA 6Gb/s connectors |
| Storage Interface | RAID 0/1/5/10 support for NVMe SSD |
| Storage Interface | RAID 5 only available on Ryzen™ 9000 Series |
| Storage Interface | RAID 0/1/10 support for SATA storage devices |
| USB | 2 x USB4® USB Type-C® ports on back panel |
| USB | 1 x USB 3.2 Gen 2 Type-A port (red) |
| USB | 1 x USB 3.2 Gen 1 port on back panel |
| USB | 8 x USB 2.0/1.1 ports |
| USB | 1 x USB Type-C® header with USB 3.2 Gen 2x2 support |
| USB | 4 x USB 3.2 Gen 1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| Internal I/O Connectors | 1 x 8-pin ATX 12V power connector |
| Internal I/O Connectors | 1 x 4-pin ATX 12V power connector |
| Internal I/O Connectors | 1 x CPU fan header |
| Internal I/O Connectors | 1 x CPU fan/water cooling pump header |
| Internal I/O Connectors | 4 x system fan headers |
| Internal I/O Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Internal I/O Connectors | 1 x RGB LED strip header |
| Internal I/O Connectors | 4 x SATA 6Gb/s connectors |
| Internal I/O Connectors | 3 x M.2 Socket 3 connectors |
| Internal I/O Connectors | 1 x front panel header |
| Internal I/O Connectors | 1 x front panel audio header |
| Internal I/O Connectors | 4 x USB 2.0/1.1 headers |
| Internal I/O Connectors | 1 x Trusted Platform Module header |
| Internal I/O Connectors | 1 x reset jumper |
| Internal I/O Connectors | 1 x Clear CMOS jumper |

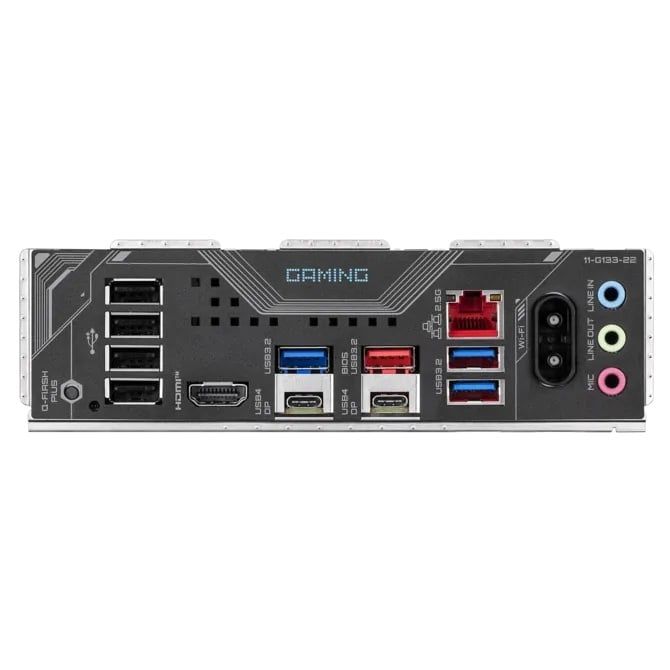

| Back Panel Connectors | 1 x Q-Flash Plus button |
| Back Panel Connectors | 2 x SMA antenna connectors |
| Back Panel Connectors | 1 x HDMI port |
| Back Panel Connectors | 2 x USB4® USB Type-C® ports |
| Back Panel Connectors | 1 x USB 3.2 Gen 2 Type-A port |
| Back Panel Connectors | 3 x USB 3.2 Gen 1 ports |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| Back Panel Connectors | 1 x RJ-45 port |
| Back Panel Connectors | 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| H/W Monitoring | Temperature detection |
| H/W Monitoring | Fan speed detection |
| H/W Monitoring | Water cooling flow rate detection |
| H/W Monitoring | Fan fail warning |
| H/W Monitoring | Fan speed control |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Licensed AMI UEFI BIOS |
| BIOS | Support PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Unique Features | Support for Q-Flash |
| Unique Features | Support for Q-Flash Plus |
| Unique Features | Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Bundled Software | LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
