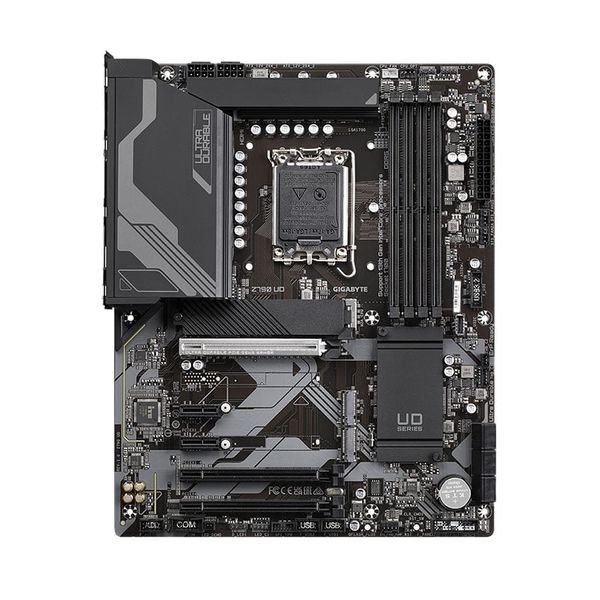

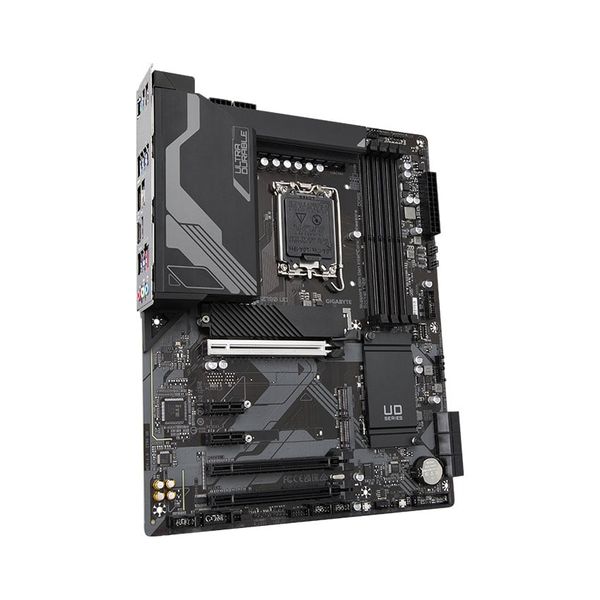

Chi tiết thông số kỹ thuật Mainboard Gigabyte Z790 UD
| Thông số | Chi tiết |
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
|
| L3 cache | Varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory support |
DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/4800/4000
|
| Memory slots | 4 x DDR5 DIMM sockets |
| Maximum memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory architecture | Dual channel |
| ECC memory support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC memory support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP support | Supported |
| Graphics processor | Integrated Intel® HD Graphics |
| HDMI output | 1 x HDMI port, max resolution 4096x2160@60 Hz |
| HDMI version | HDMI 2.1 |
| HDCP support | HDCP 2.3 |
| DisplayPort output | 1 x DisplayPort, max resolution 4096x2304@60 Hz |
| DisplayPort version | DisplayPort 1.2 |
| Audio codec | Realtek® Audio CODEC |
| Audio type | High Definition Audio |
| Audio channels | 2/4/5.1/7.1-channel |
| S/PDIF support | Supported |
| LAN chip | Realtek® 2.5GbE LAN |
| LAN speed | 2.5 Gbps/1 Gbps/100 Mbps |
| PCIe 5.0 x16 slot | 1 x PCI Express x16, PCIe 5.0, running at x16 |
| PCIe 4.0 x16 slot | 1 x PCI Express x16, PCIe 4.0, running at x4 |
| PCIe 3.0 x16 slot | 1 x PCI Express x16, PCIe 3.0, running at x1 |
| PCIe x1 slots | 2 x PCI Express x1, PCIe 3.0 |
| CrossFire support | AMD CrossFire™ supported |
| CPU M.2 slot | 1 x M.2 Socket 3, type 22110/2280, PCIe 4.0 x4/x2 |
| Chipset M.2 slots | 2 x M.2 Socket 3, type 2280, PCIe 4.0 x4/x2 |
| SATA ports | 6 x SATA 6Gb/s |
| NVMe RAID support | RAID 0, 1, 5, 10 |
| SATA RAID support | RAID 0, 1, 5, 10 |
| Rear USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 2x2 |
| Internal USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 1 |
| Rear USB 3.2 Gen 2 Type-A | 1 port (red) |
| USB 3.2 Gen 1 ports | 6 ports |
| USB 2.0/1.1 ports | 8 ports |
| ATX power connector | 1 x 24-pin |
| CPU power connectors | 2 x 8-pin ATX 12V |
| CPU fan header | 1 |
| Water cooling CPU fan header | 1 |
| System fan headers | 3 |
| Pump/system fan header | 1 |
| Addressable LED headers | 2 |
| RGB LED headers | 2 |
| Internal M.2 connectors | 3 x M.2 Socket 3 |
| Front panel header | 1 |
| Front audio header | 1 |
| S/PDIF Out header | 1 |
| USB Type-C header | 1 |
| USB 3.2 Gen 1 header | 1 |
| USB 2.0 headers | 2 |
| Serial port header | 1 |
| Thunderbolt add-in connectors | 2 |
| TPM header | 1 |
| Reset button | 1 |
| Q-Flash Plus button | 1 |
| Reset jumper | 1 |
| Clear CMOS jumper | 1 |

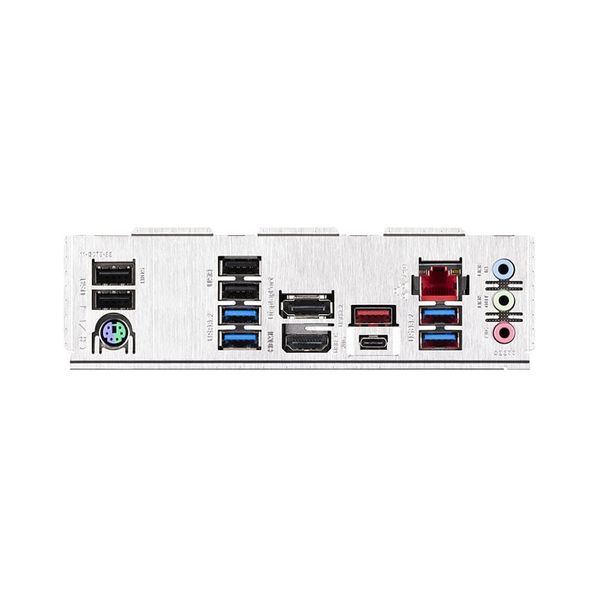

| Rear USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 2x2 |
| Rear USB 3.2 Gen 2 Type-A | 1 |
| Rear USB 3.2 Gen 1 | 4 |
| Rear USB 2.0/1.1 | 4 |
| Rear HDMI | 1 x HDMI 2.0 |
| Rear DisplayPort | 1 |
| RJ-45 LAN port | 1 |
| Audio jacks | 3 |
| I/O controller | iTE® I/O Controller Chip |
| Voltage detection | Supported |
| Temperature detection | Supported |
| Fan speed detection | Supported |
| Water cooling flow detection | Supported |
| Fan fail warning | Supported |
| Fan speed control | Supported |
| BIOS flash | 1 x 256 Mbit flash |
| BIOS type | Licensed AMI UEFI BIOS |
| BIOS standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| GCC support | GIGABYTE Control Center supported |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Smart Backup | Supported |
| Antivirus software | Norton® Internet Security (OEM version) |
| LAN software | LAN bandwidth management software |
| OS support | Windows 11 64-bit |
| OS support | Windows 10 64-bit |
| Form factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
