Mô tả sản phẩm

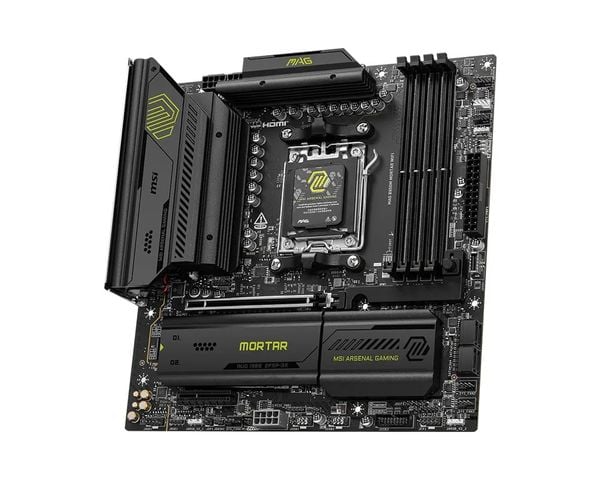

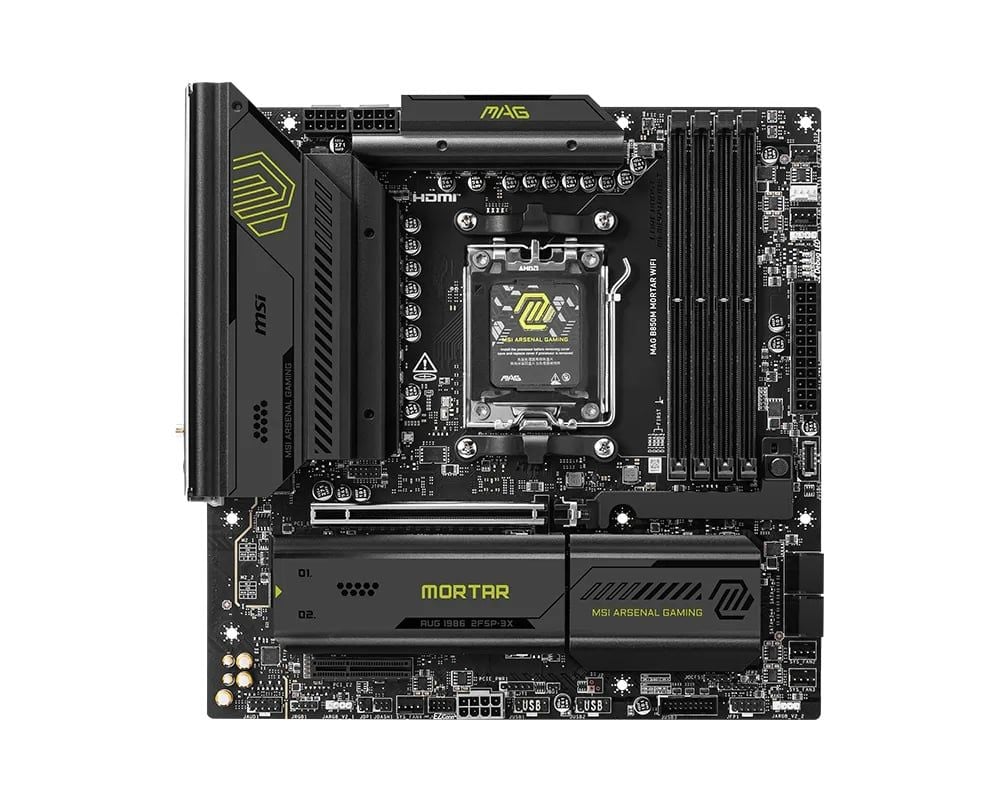

Mainboard MSI MAG B850M MORTAR Wifi
| Thông số | Chi tiết |
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors, Socket AM5 |
| Memory | 4× DDR5 UDIMM, tối đa 256GB |
| Memory Speed | DDR5 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| Memory Features | Dual Channel, AMD EXPO™, Non-ECC UDIMM, CUDIMM (Clock Driver Bypass) |
| Memory OC (Ryzen 9000) | 1DPC 1R: 8200+ MT/s • 1DPC 2R: 6400+ MT/s • 2DPC 1R: 6400+ MT/s • 2DPC 2R: 6400+ MT/s |
| Onboard Graphics | 1× HDMI 2.1 FRL, tối đa 8K@60Hz (với CPU có iGPU) |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) |
| PCIe Support | PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (8700/8600/8400), PCIe 4.0 x4 (8500/8300) |
| Audio | Realtek ALC4080, 7.1 USB Audio, 32-bit/384kHz, Optical S/PDIF |
| Storage | 3× M.2, 4× SATA 6Gb/s |
| M.2_1 | PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) |
| M.2_2 | PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (8700/8600/8400), PCIe 4.0 x2 (8500/8300) |
| M.2_3 | PCIe 4.0 x2 (Chipset) |
| RAID | SATA: RAID 0/1/10 • NVMe: RAID 0/1/5 (RAID 5 chỉ Ryzen 9000) |
| Multi-GPU | AMD Multi-GPU Support |
| USB | Rear: 4× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 1× USB 10Gbps Type-C, 1× USB 20Gbps Type-C • Front: 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C, 4× USB 2.0 |
| LAN | Realtek 8126-VB 5GbE |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 320MHz, 5.8Gbps), Bluetooth 5.4 |
| Internal I/O | 24-pin ATX, 2× CPU Power, 8-pin PCIe Power, CPU Fan, Pump Fan, 4× SYS Fan, EZ Conn, TPM, RGB/ARGB, Front USB 10Gbps Type-C |
| LED Features | 4× EZ Debug LED, 1× EZ Memory Detection LED |

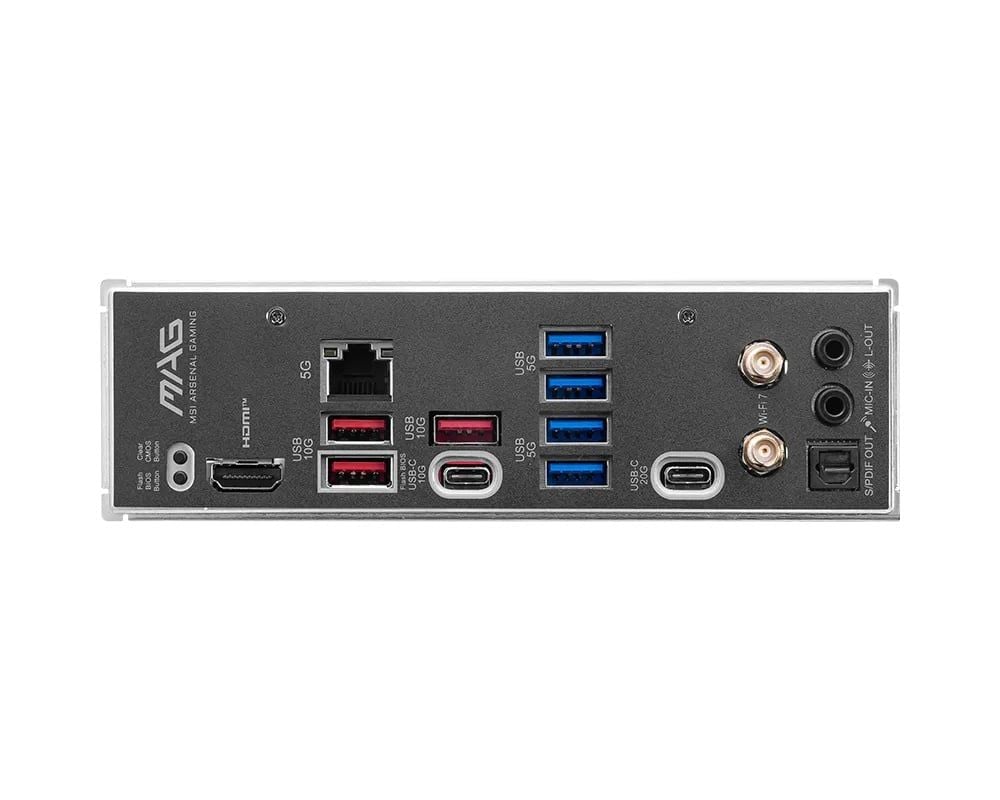

| Back Panel I/O | Clear CMOS, Flash BIOS, HDMI, 5GbE LAN, Wi-Fi Antenna, Optical S/PDIF, USB 20Gbps Type-C, USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, Audio |
| Operating System | Windows 11 64-bit |
| Form Factor | mATX (243.84 × 243.84 mm) |
Thông số kỹ thuật
