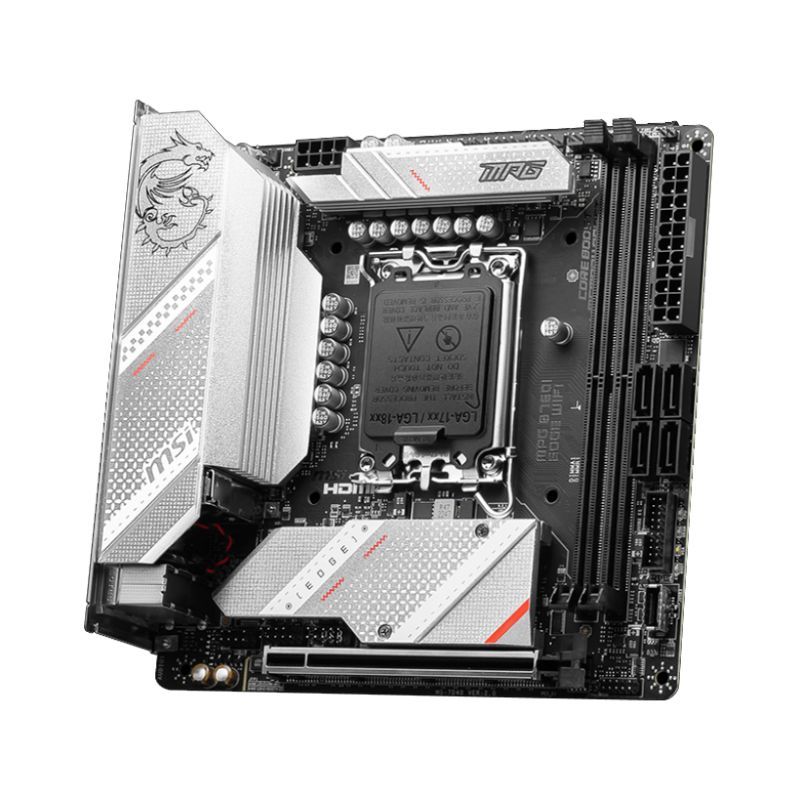

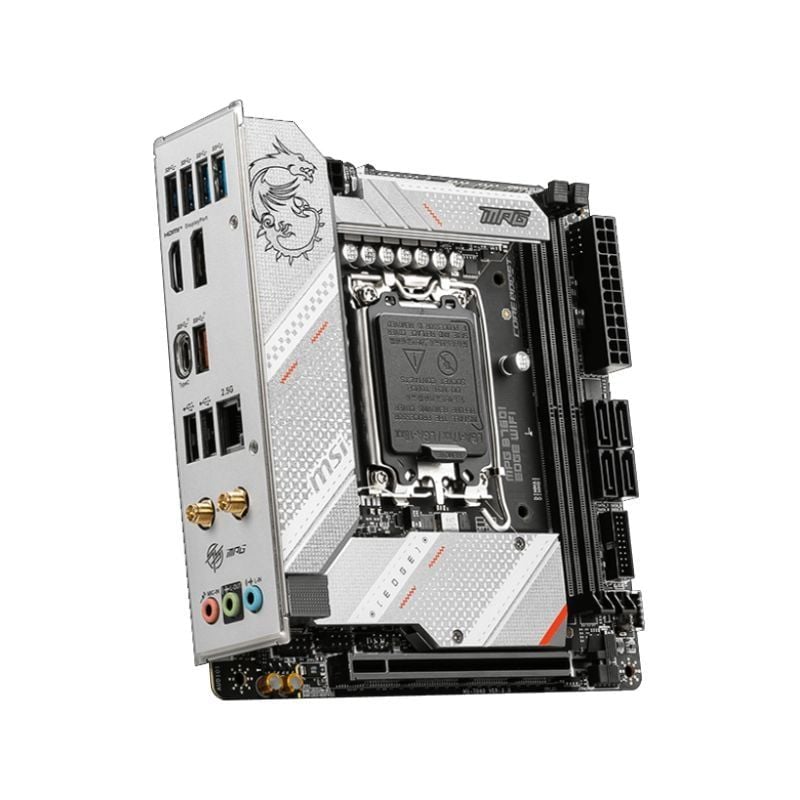

Mainboard MSI MPG B760i Edge Wifi DDR5 – Socket Intel LGA 1700

2x DDR5, Maximum Memory Capacity 96GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile (XMP)

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

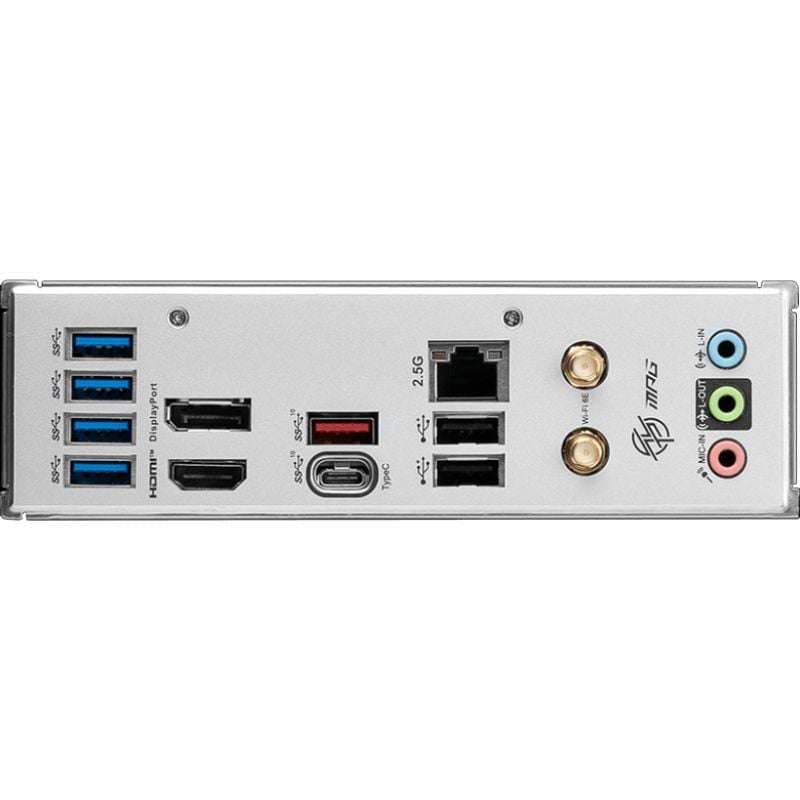

1. USB 3.2 Gen 1 5Gbps
2. Display Port
3. USB 3.2 Gen 2 10Gbps
4. 2.5G LAN
5. Audio Connectors
6. HDMI™
7. USB 3.2 Gen 2 10Gbps (Type-C)
8. USB 2.0
9. Wi-Fi / Bluetooth
