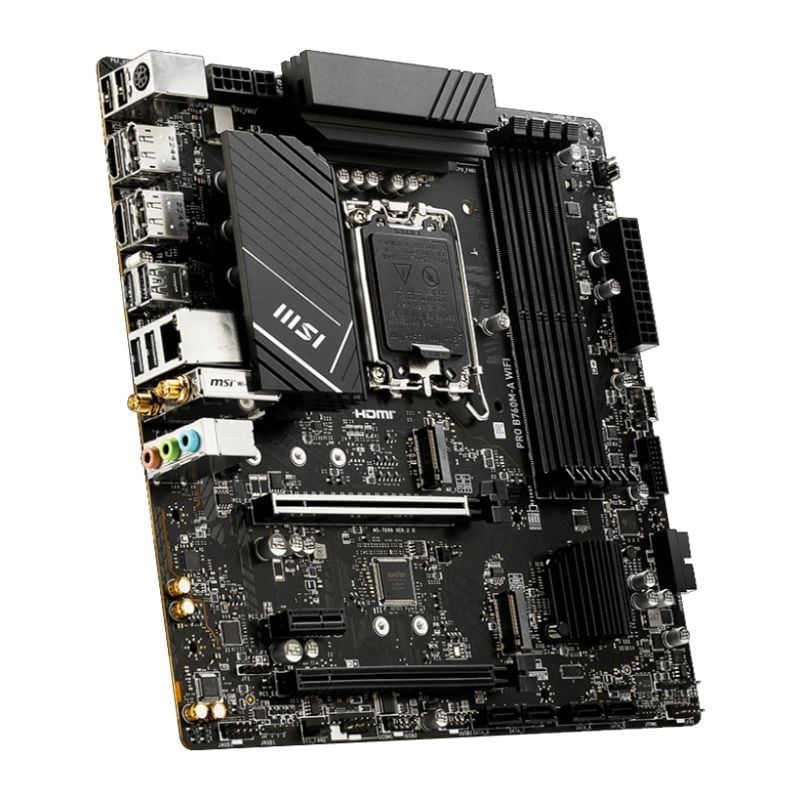

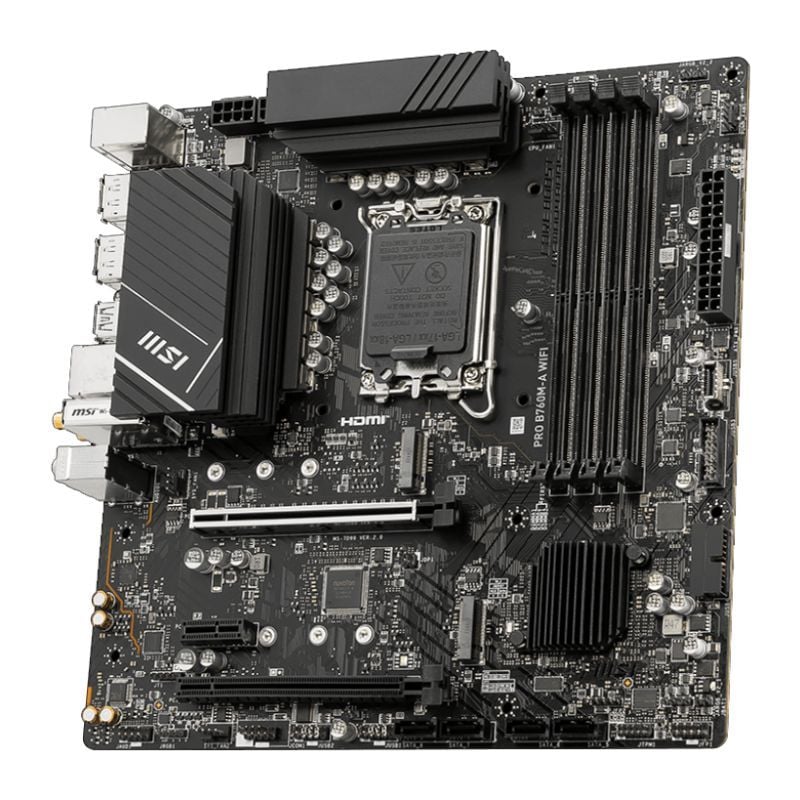

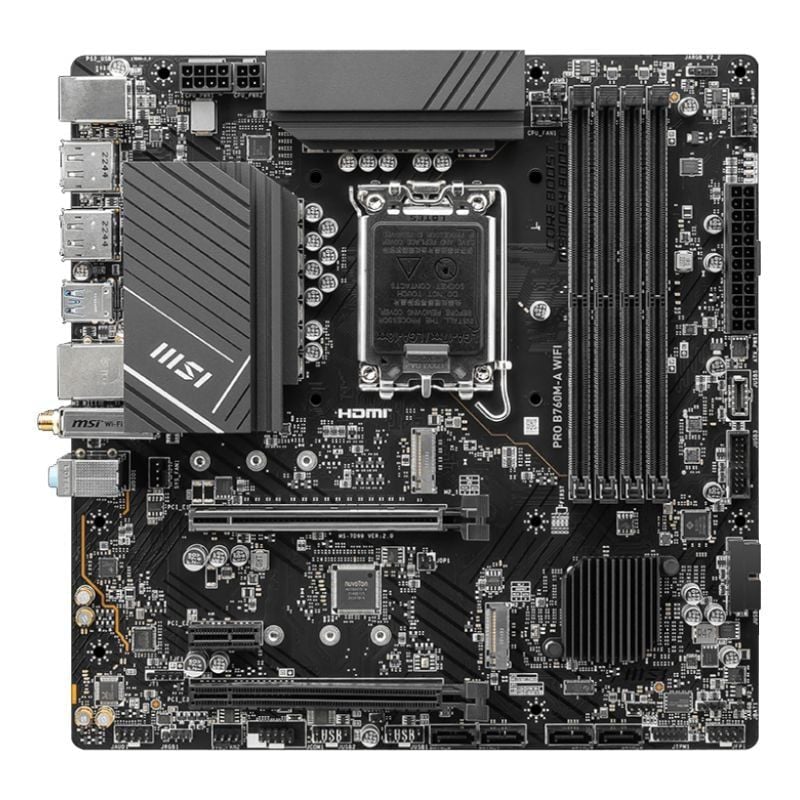

Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700
CHIPSET Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
INTEL B760 |
---|---|
CPU SUPPORT Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
MEMORY Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
ONBOARD GRAPHICS Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
RAID Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
LAN Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
Realtek® RTL8125BG 2.5G LAN |
WIRELESS / BLUETOOTH Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO Mainboard MSI PRO B760M-A Wifi DDR4 – Socket Intel LGA 1700 |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
LED FEATURE | 4x EZ Debug LED |

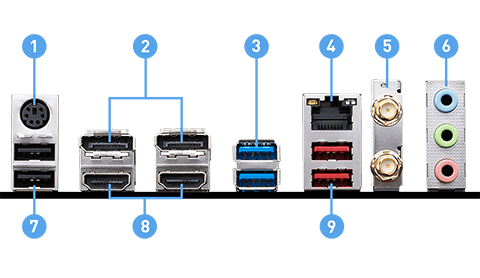

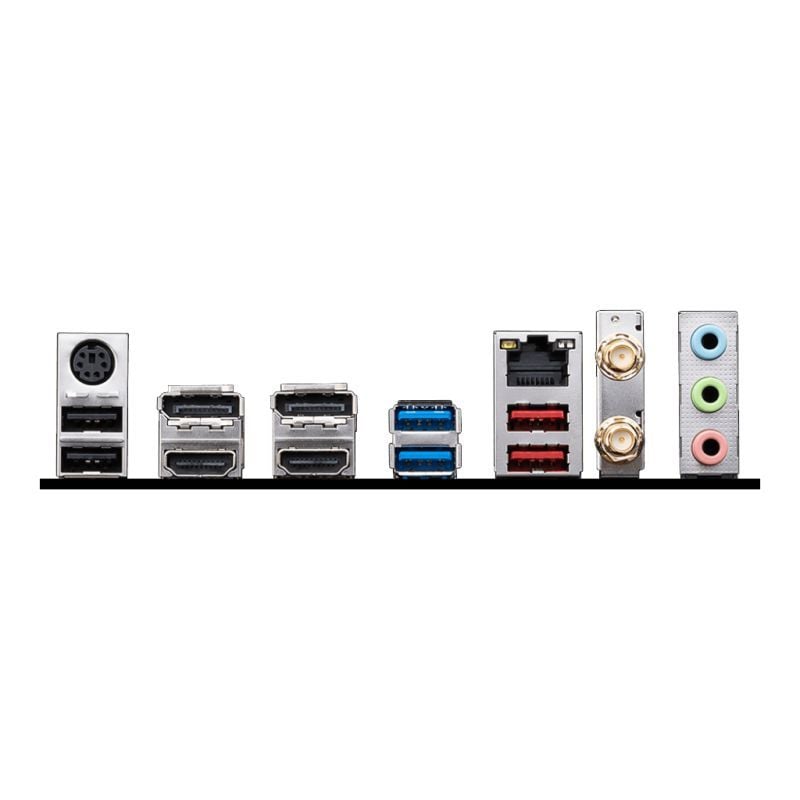

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION (W × L) | mATX 243.84mmx243.84mm |

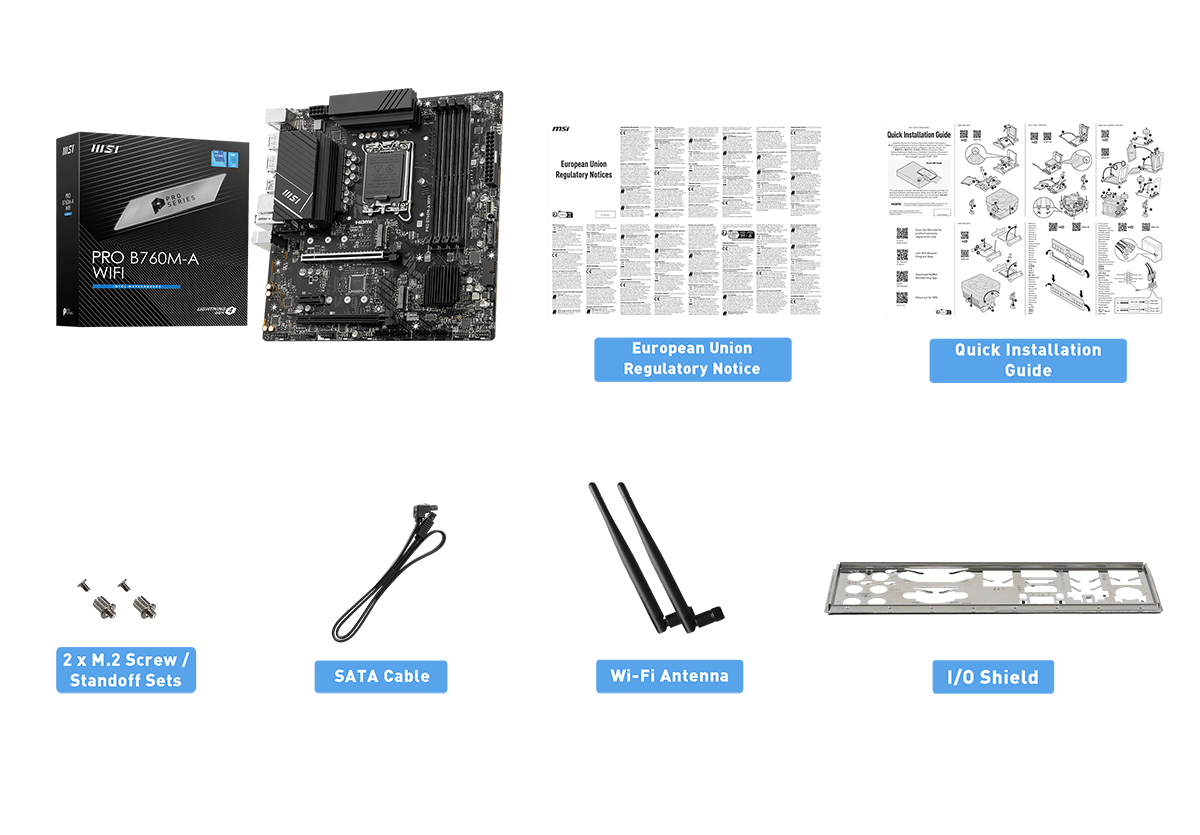

BOX CONTENT |
Kích thước | 160.8 x 78.1 x 7.8 mm |
Trọng lượng sản phẩm | 203 g |
