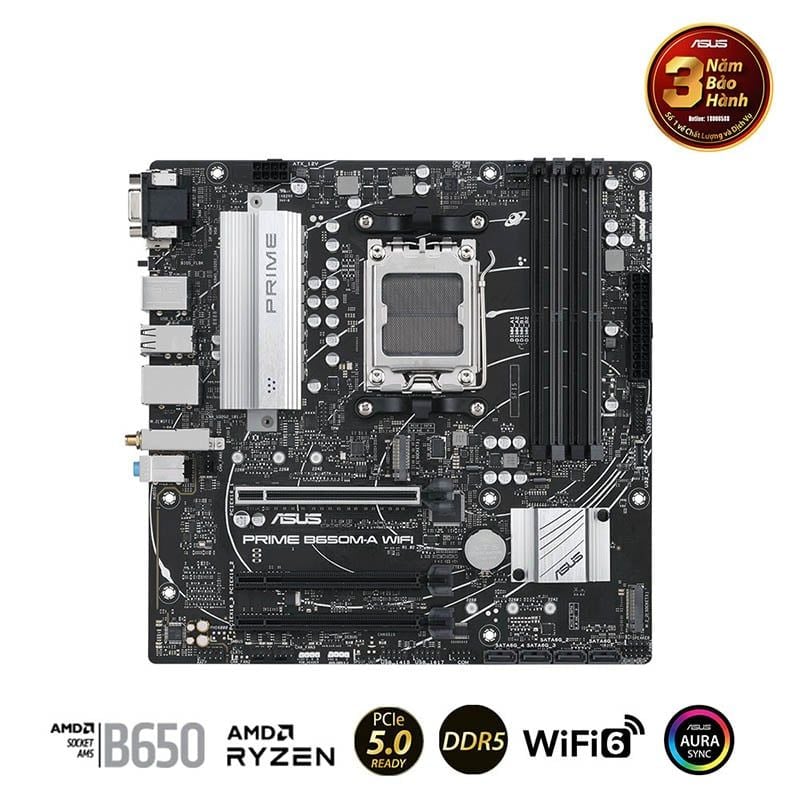

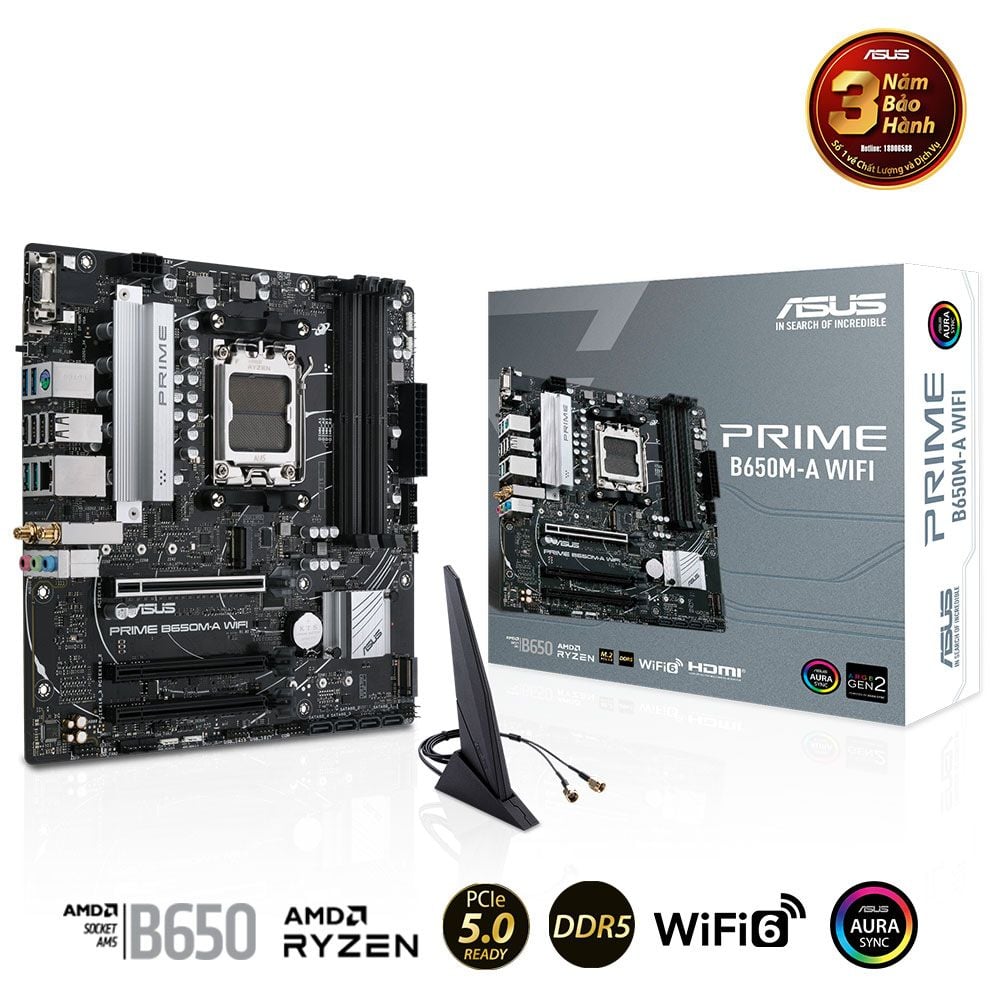

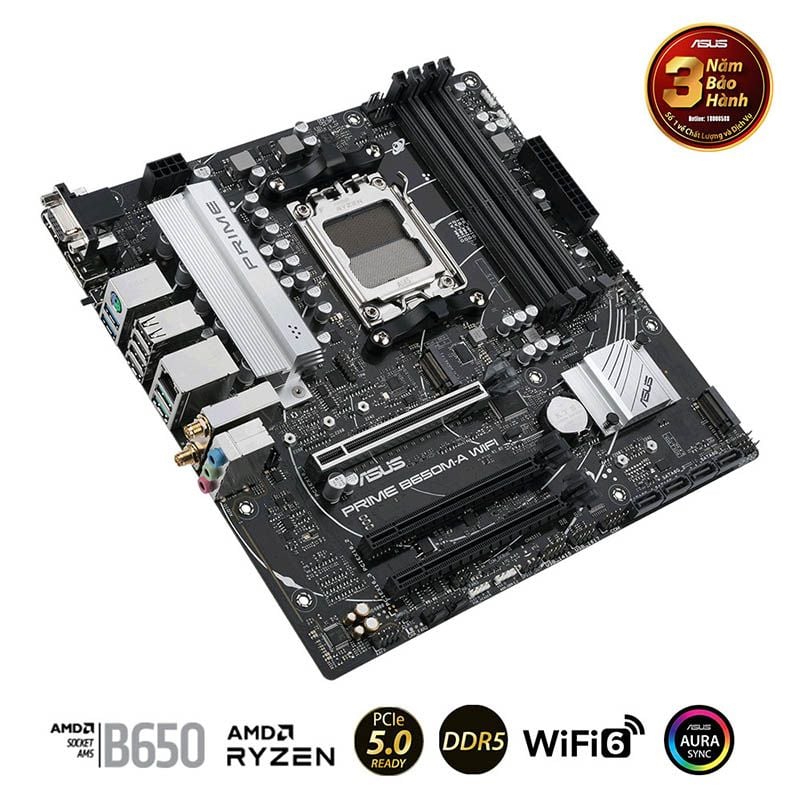

Mainboard Asus Prime B650M-A Wifi-CSM – Socket AMD AM5

Mainboard Asus Prime B650M-A Wifi-CSM – Socket AMD AM5

Mainboard Asus Prime B650M-A Wifi-CSM – Socket AMD AM5

Thông số kỹ thuật Mainboard Asus Prime B650M-A Wifi-CSM DDR5 – Socket AMD AM5

• CPU Mainboard Asus Prime B650M-A Wifi-CSM: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  * Refer to www.asus.com for CPU support list.
• Chipset Mainboard Asus Prime B650M-A Wifi-CSM: AMD B650 Chipset
• Memory Mainboard Asus Prime B650M-A Wifi-CSM:
  4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
• Graphics Mainboard Asus Prime B650M-A Wifi-CSM:
  1 x DisplayPort**
  1 x HDMI® port***
  * Graphics specifications may vary between CPU types.
  ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI® 2.1.
• Expansion Slots Mainboard Asus Prime B650M-A Wifi-CSM
  AMD Ryzen™ 7000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x16 mode)
  AMD B650 Chipset
  2 x PCIe 4.0 x16 slots (support x1 mode)
  * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• Storage Mainboard Asus Prime B650M-A Wifi-CSM:
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  AMD B650 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• Ethernet Mainboard Asus Prime B650M-A Wifi-CSM:
  1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth Mainboard Asus Prime B650M-A Wifi-CSM:
  Wi-Fi 6
  2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth® v5.2
• USB Mainboard Asus Prime B650M-A Wifi-CSM:
  Rear USB (Total 8 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio Mainboard Asus Prime B650M-A Wifi-CSM:
  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – Supports up to 24-Bit/192 kHz playback
  Audio Features
  – Audio Shielding
  – Premium audio capacitors
  – Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports Mainboard Asus Prime B650M-A Wifi-CSM:
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x VGA port
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button
  1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
• Special Features:
  ASUS 5X PROTECTION III
  – DIGI+ VRM
  – LANGuard
  – Overvoltage Protection
  – SafeSlot Core+
  – Stainless-Steel Back I/O
  ASUS Q-Design
  – Q-DIMM
  – Q-LED core
  – Q-Slot
  ASUS Thermal Solution
  – VRM heatsink design
  ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  Aura Sync
  – Aura RGB header
  – Addressable Gen 2 headers
• Software Features:
  ASUS Exclusive Software
  Armoury Crate
  – Aura Creator
  – Aura Sync
  – Fan Xpert 4 with AI Cooling II
  – Power Saving
  AI Suite 3
  – TurboV EVO
  – DIGI+ VRM
  – PC Cleaner
  ASUS CPU-Z
  IT Management software supported
  – ASUS Control Center Express(ACCE)
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS

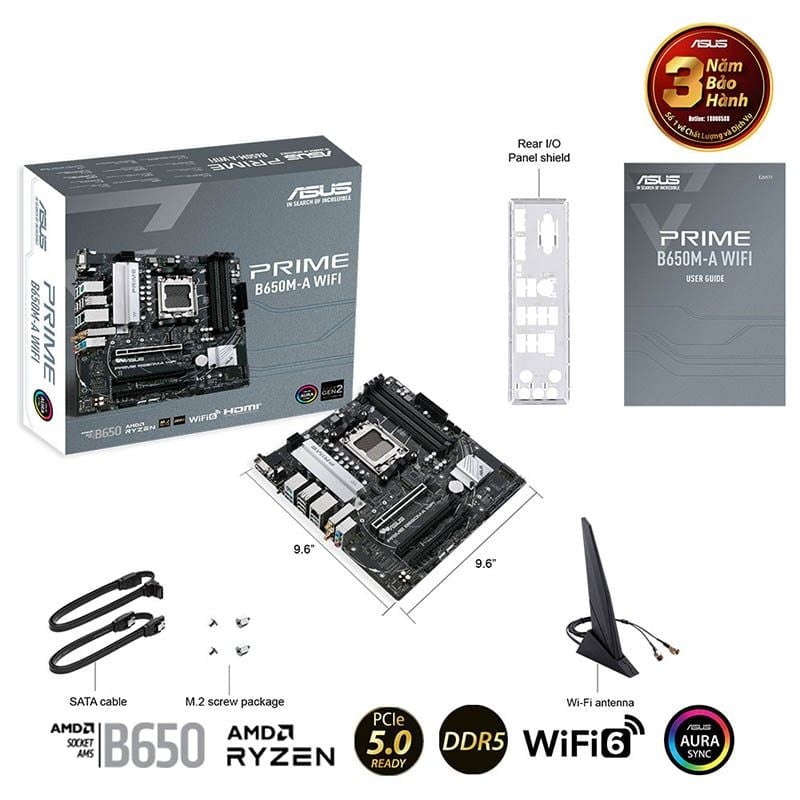

• Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas

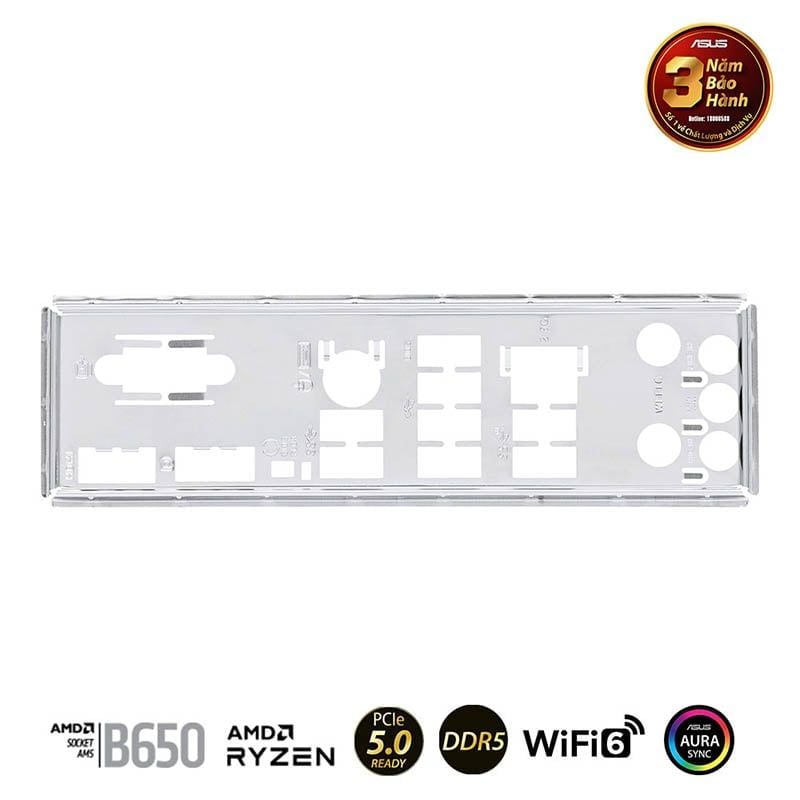

  1 x I/O Shield
  1 x Screw package for M.2 SSD
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide
• Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
