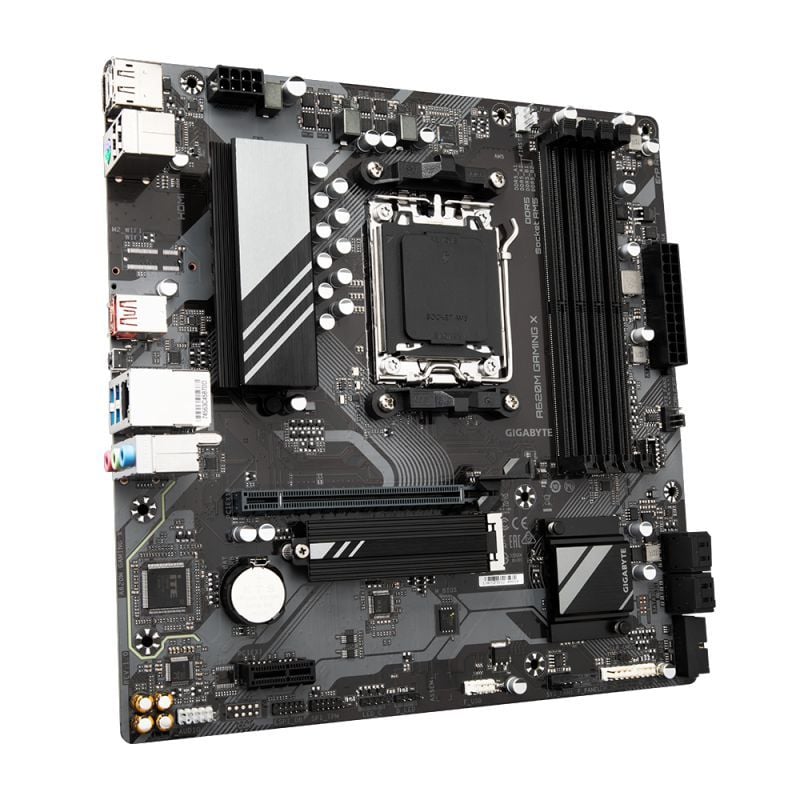

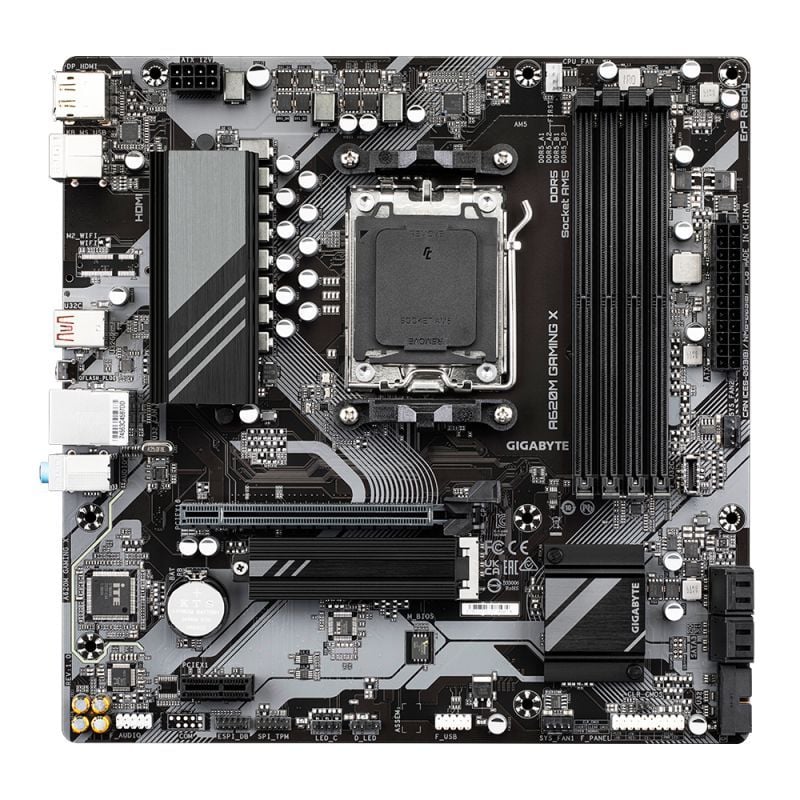

Mainboard Gigabyte A620M Gaming X – Socket AMD AM5

Mainboard Gigabyte A620M Gaming X - Socket AMD AM5

Mainboard Gigabyte A620M Gaming X - Socket AMD AM5

Thông số kỹ thuật Mainboard Gigabyte X670 AORUS ELITE AX DDR5 Socket AM5 – ATX

• CPU
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. AMD A620
• Bộ nhớ
  1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)
• Âm thanh
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
• Khe cắm mở rộng
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Giao diện lưu trữ
  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
  3. 1 x USB 3.2 Gen 1 port on the back panel

  Chipset:

  1. 1 x USB Type-C^® port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  15. 1 x Clear CMOS jumper
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 2 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x HDMI port
  7. 1 x DisplayPort
  8. 1 x Q-Flash Plus button
  9. 1 x RJ-45 port
  10. 3 x audio jacks
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Hệ điều hành
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
•
