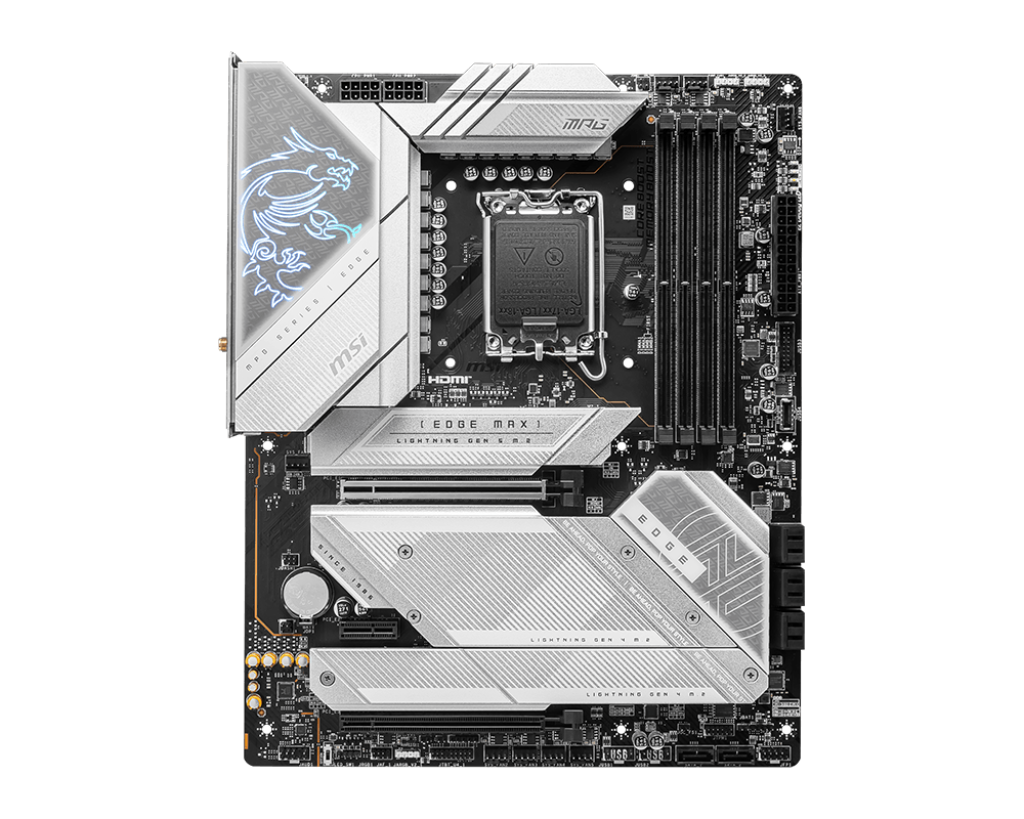

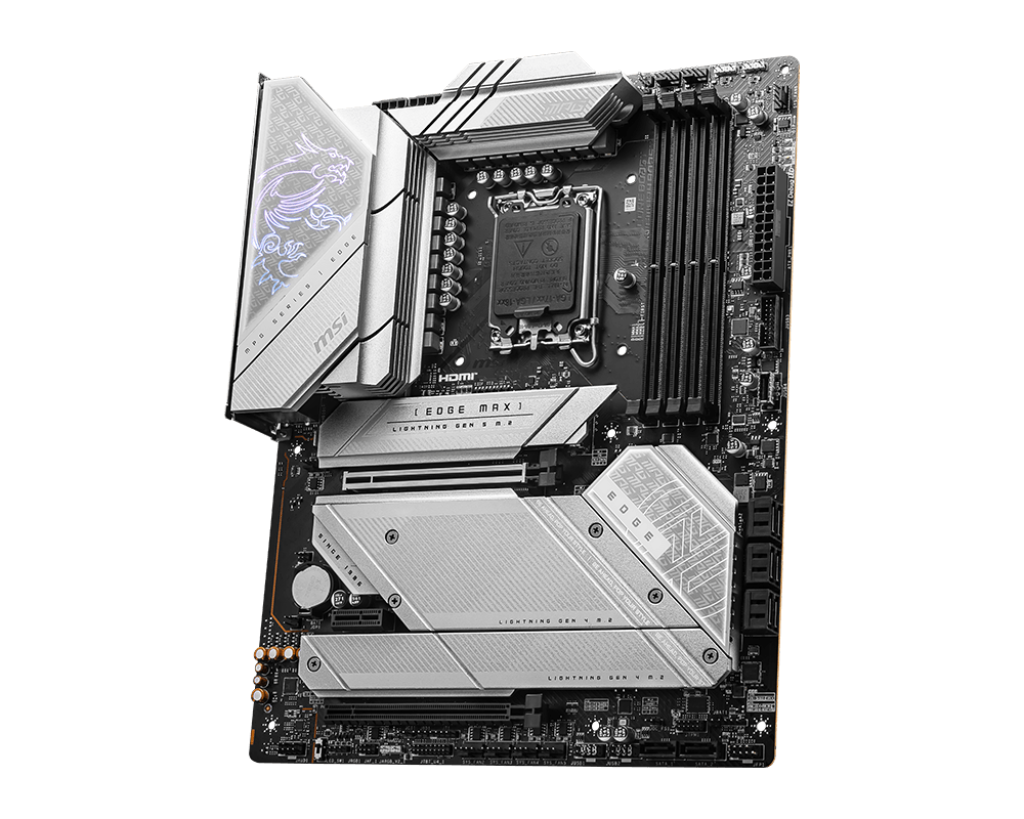

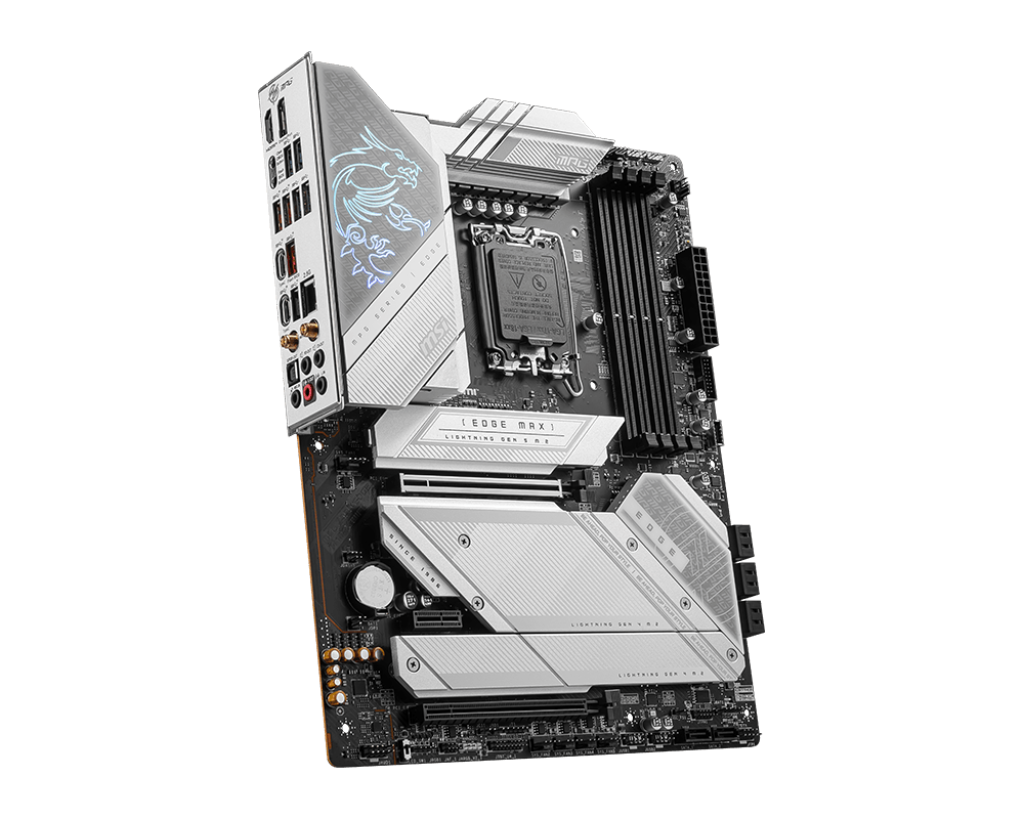

Mainboard MPG Z790 EDGE TI MAX WF
Mainboard MPG Z790 EDGE TI MAX WF là một lựa chọn xuất sắc cho các game thủ và người dùng yêu cầu hiệu suất cao. Với một loạt tính năng tiên tiến và thiết kế chất lượng, nó đem lại trải nghiệm tuyệt vời cho máy tính cá nhân của bạn. Dưới đây là một số điểm đáng chú ý về bo mạch chủ này:
- Hiệu suất vượt trội: Với hỗ trợ cho các loại vi xử lý Intel® Core™ thế hệ tiếp theo và DDR5 Memory, MSI MPG Z790 EDGE TI MAX WIFI mang lại hiệu suất đỉnh cao. Bạn có thể chơi game mượt mà và xử lý nhiệm vụ đa nhiệm mà không gặp khó khăn.
- Giải pháp nhiệt độ tốt nhất: Bo mạch chủ này được trang bị các tính năng nhiệt độ hàng đầu, bao gồm tản nhiệt mở rộng với heat-pipe, M.2 Shield Frozr, và MOSFET thermal pads để đảm bảo rằng hệ thống của bạn luôn mát mẻ và hoạt động ổn định, ngay cả khi chơi game trong thời gian dài.
- Thiết kế đặc biệt: Với các tính năng như Pre-installed I/O Shield và Solid Pin Design, bo mạch chủ này được tối ưu hóa cho hiệu suất và độ bền tốt hơn.
- Cổng kết nối đa dạng: Với 1x PCI-E 5.0 M.2 Slot, 4x PCI-E 4.0 M.2 Slots, và Lightning USB 20G, bạn có nhiều tùy chọn để kết nối các thiết bị lưu trữ nhanh chóng và tiện lợi.
- Kiểm soát quạt toàn diện: Hệ thống quạt thông minh MSI cho phép bạn kiểm soát tốc độ và nhiệt độ của tất cả các quạt hệ thống và CPU, giúp duy trì máy tính yên tĩnh và mát mẻ.
- Kết nối mạng và âm thanh chất lượng cao: Với 2.5G LAN, Wi-Fi 7, và âm thanh chất lượng cao Audio Boost 5, bạn sẽ có trải nghiệm mạng và âm thanh xuất sắc.
- Thiết kế RGB đa dạng: Với MSI Mystic Light, bạn có thể tạo ra hiệu ứng đèn RGB đẹp mắt và tương thích với các thiết bị RGB khác trong hệ thống của bạn.
- Đặc biệt là Wi-Fi 7: Với hỗ trợ cho Wi-Fi 7, bạn sẽ có kết nối mạng không dây với tốc độ cao và ít độ trễ, phù hợp cho cả công việc và giải trí.
Mainboard MPG Z790 EDGE TI MAX WF là một sản phẩm xuất sắc với hiệu suất, tính năng và thiết kế chất lượng. Đây là một sự lựa chọn tốt cho những người đang tìm kiếm một nền tảng mạnh mẽ cho máy tính cá nhân, đặc biệt là cho các game thủ và người dùng đòi hỏi hiệu suất cao.
CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
CHIPSET | Intel® Z790 Chipset |
MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot. * SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Intel® 2.5Gbps LAN |
WIFI & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
AUDIO | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
LED FEATURE | 4x EZ Debug LED 1x EZ LED Control switch |

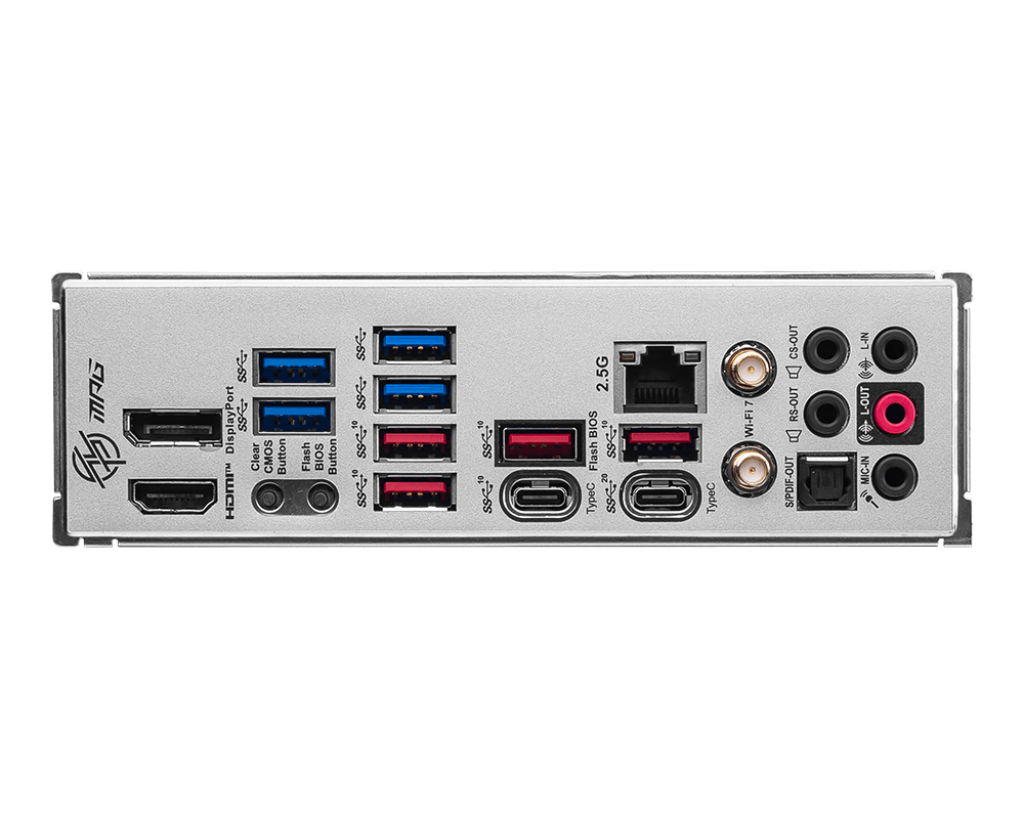

BACK PANEL PORTS | Display Port USB 3.2 Gen 1 5 Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) 2.5G LAN Audio Connectors HDMI™ Clear CMOS Flash BIOS USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2×2 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | ATX 243.84mmx304.8mm |
