Mainboard MSI Pro Z790-S Wifi – Socket Intel LGA 1700

Mainboard MSI Pro Z790-S Wifi – Socket Intel LGA 1700

0 lượt xem | 0 đã bán |

Thương hiệu: MSI

Loại: Mainboard

5,000,000₫ ~~6,490,000₫~~

Bảo hành 36 tháng chính hãng. Đã bao gồm VAT

Giá build PC

Giá mua lẻ

TRẢ GÓP (HDSAISON)
Duyệt nhanh qua điện thoại TRẢ GÓP QUA THẺ
Visa, Mastercard, JCB(Từ 3 triệu)

Cam kết bán hàng

Hàng chính hãng.Mới 100%
Hỗ trợ trả góp
Giao hàng ngay (nội thành HN & TP.HCM)
Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.

ProductInfo

Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700 - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.

Mô tả sản phẩm

Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700

CHIPSET Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	INTEL Z790
CPU SUPPORT Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) LGA 1700
MEMORY Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE Mainboard MSI Pro Z790-S Wifi - Socket Intel LGA 1700	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek^® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports

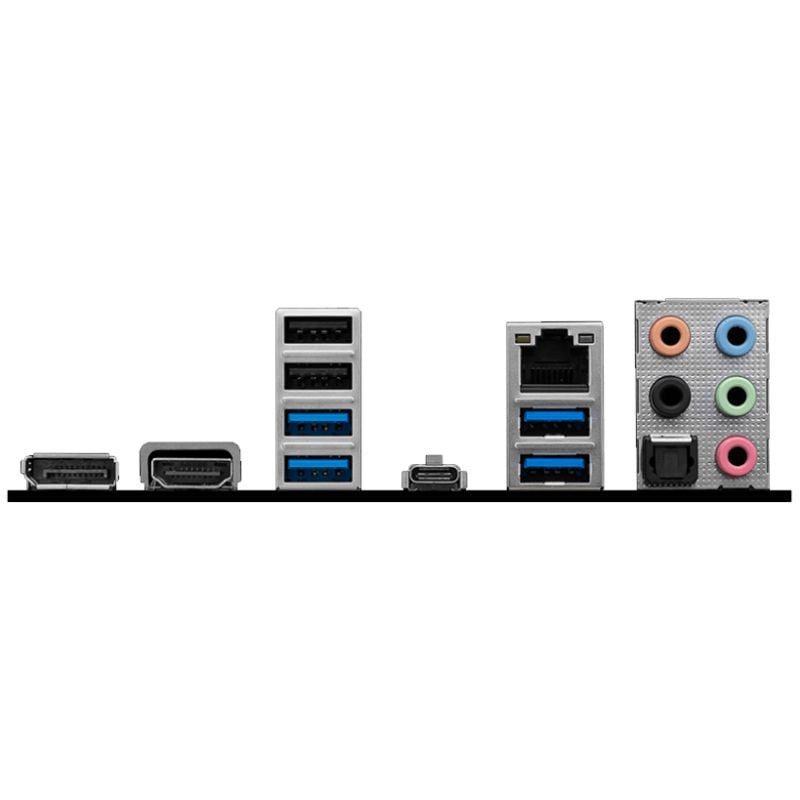

BACK PANEL PORTS	DisplayPort HDMI™ USB 2.0 USB 3.2 Gen 2x2 20Gbps (Type-C) 2.5G LAN Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB DIMENSION (W × L)	ATX 243.84mmx304.8mm
BOX CONTENT

Thông số kỹ thuật

Có đánh giá trên sản phẩm “Mainboard MSI Pro Z790-S Wifi – Socket Intel LGA 1700”

Kích thước	160.8 x 78.1 x 7.8 mm
Trọng lượng sản phẩm	203 g
