  3. Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

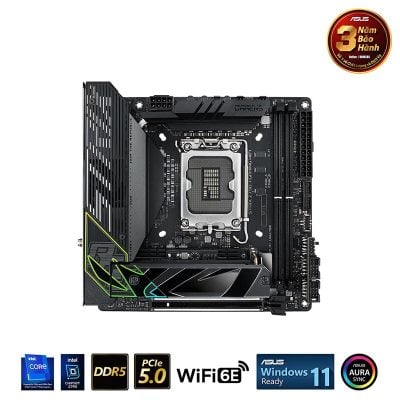

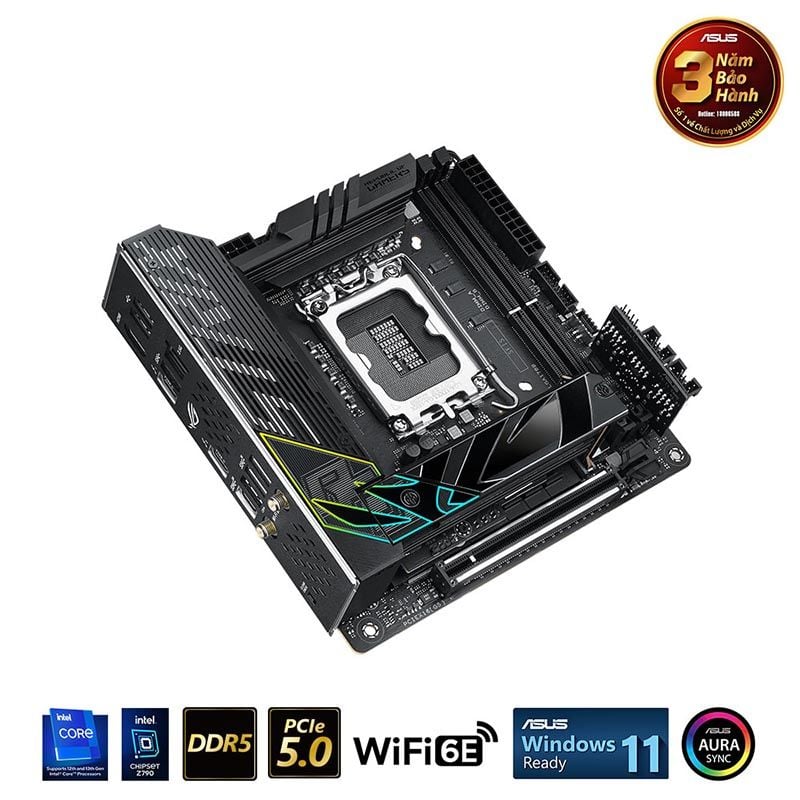

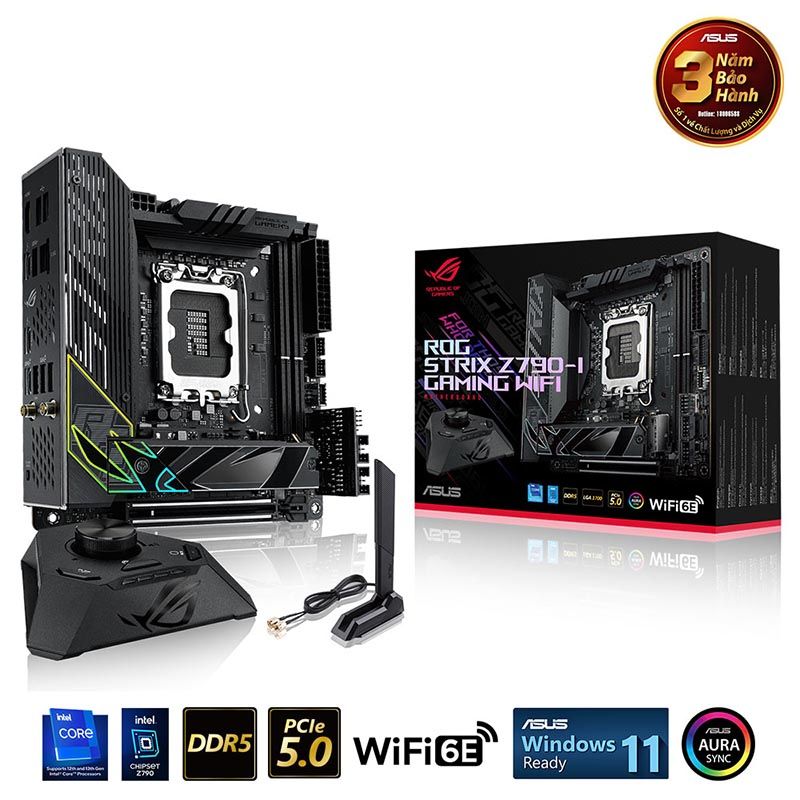

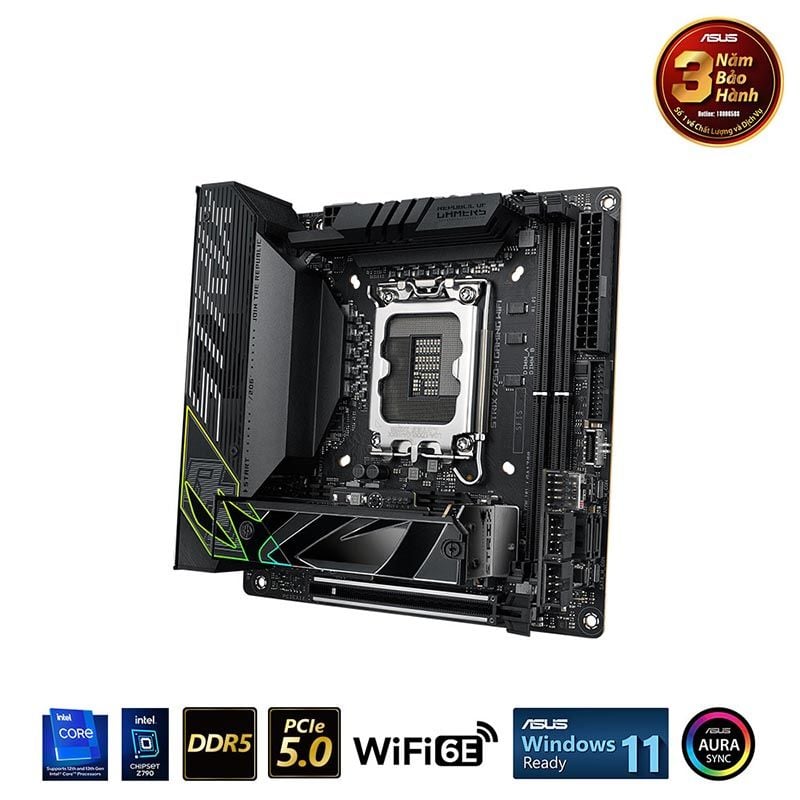

Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700
Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700
Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700
Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

0 lượt xem | 0 đã bán |
Thương hiệu: Intel
|
Loại: Mainboard
11,590,000₫ 15,690,000₫
Đã bao gồm VAT
Tiêu đề:
Chọn gói khuyến mãi
ProductInfo
Mainboard Asus ROG Strix Z790-i Gaming Wifi - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
TRẢ GÓP (HDSAISON)
Duyệt nhanh qua điện thoại TRẢ GÓP QUA THẺ
Visa, Mastercard, JCB(Từ 3 triệu)
Cam kết bán hàng
  • Hàng chính hãng.Mới 100% Hàng chính hãng.Mới 100%
  • Hỗ trợ trả góp Hỗ trợ trả góp
  • Giao hàng ngay (nội thành HN & TP.HCM) Giao hàng ngay (nội thành HN & TP.HCM)
  • Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS. Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.
ProductInfo
Mainboard Asus ROG Strix Z790-i Gaming Wifi - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
Mô tả sản phẩm

Bảo hành chính hãng 36 tháng

Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Thông số kỹ thuật Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

CPU Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.

Chipset Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Intel® Z790 Chipset

Memory Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

2 x DIMM, Max. 64GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors’ or graphic cards’ resolution.

Expansion Slots Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors’
or graphic cards’ resolution.

Storage Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports

Ethernet Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.

USB Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2×2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**

Audio Mainboard Asus ROG Strix Z790-i Gaming Wifi Socket Intel LGA 1700

ROG High Definition Audio CODEC ALC4050
– Supports: Jack-detection
– High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Optical S/PDIF out port & USB Type-C®  port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2×2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports


Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header(s)
– Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x AI OC button
1 x FlexKey button
1 x BIOS FlashBack™  button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])

Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)
