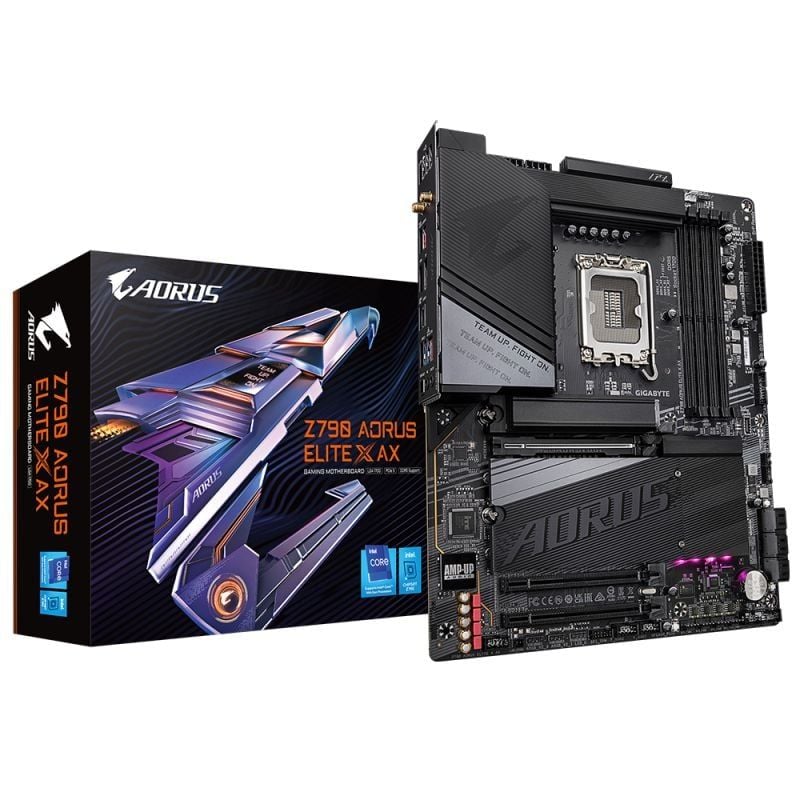

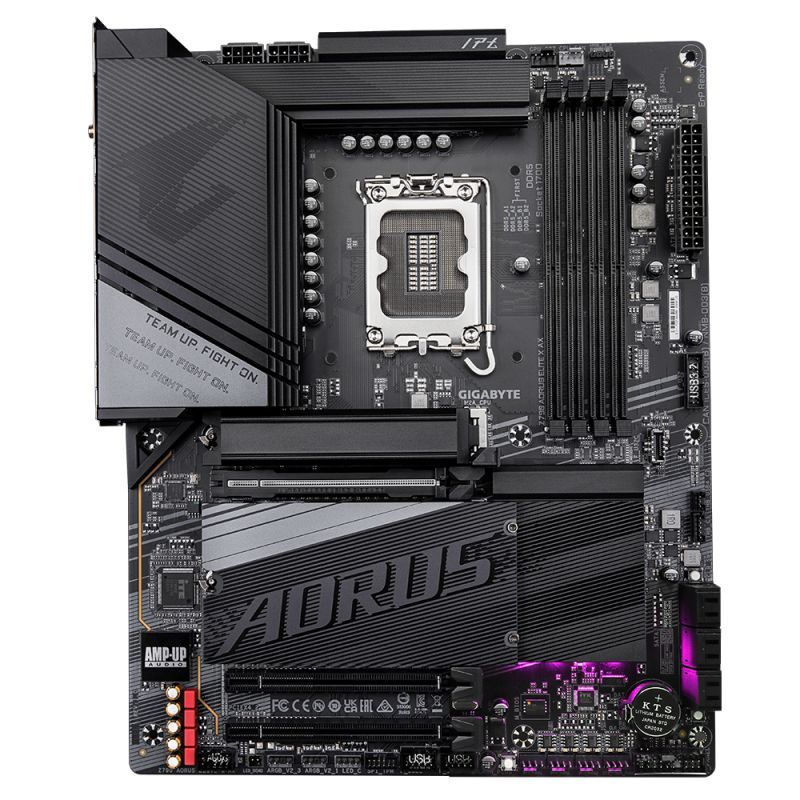

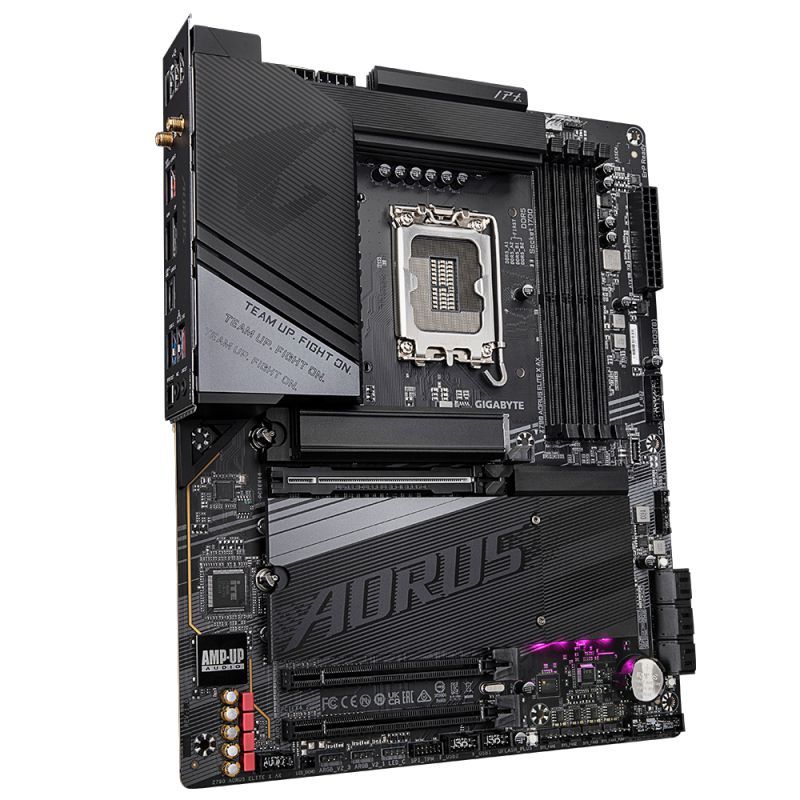

Mainboard Gigabyte Z790 Aorus Elite X AX – Socket Intel LGA 1700

Bảo hành chính hãng 36 tháng

Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700

Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700

Thông số kỹ thuật Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700

• CPU
  LGA1700 socket: Support for the 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU



  * Please refer to "CPU Support List" for more information.

• Chipset Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Intel® Z790 Express Chipset
• Bộ nhớ Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Card đồ họa tích hợp Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.0 version and HDCP 2.3.


  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3


  (Graphics specifications may vary depending on CPU support.)
• Âm thanh
  Realtek® ALC1220-VB CODEC


  * The back panel line out jack supports DSD audio.


  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out
• LAN Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)
• Khe cắm mở rộng Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
• Giao diện lưu trữ
  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  - 6 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


  * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

• USB
  Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
  internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
  through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
  the internal USB headers)
• Kết nối I/O bên trong
  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  6 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x reset button
  1 x Q-Flash Plus button
  1 x Clear CMOS button
  1 x reset jumper
  1 x Clear CMOS jumper
• Kết nối bảng phía sau Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  2 x SMA antenna connectors (2T2R) jk
  1 x HDMI port
  1 x DisplayPort
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks
• Điều khiển I/O
  iTE® I/O Controller Chip
• Theo dõi phần cứng
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
• Gói phần mềm
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Hệ điều hành Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Hệ số khuôn Mainboard Gigabyte Z790 Aorus Elite X AX - Socket Intel LGA 1700
  ATX Form Factor; 30.5cm x 24.4cm
