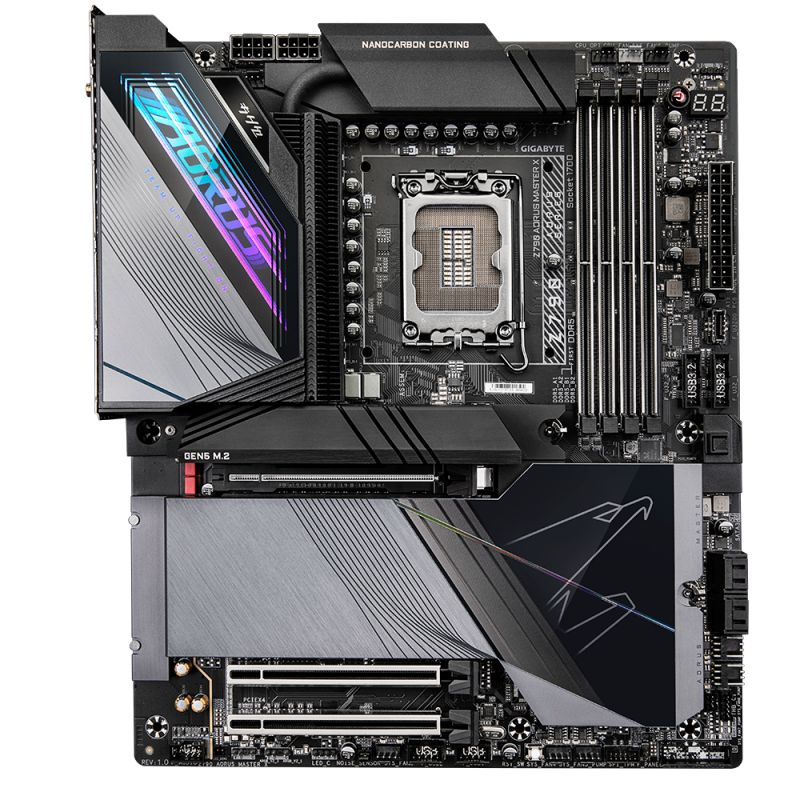

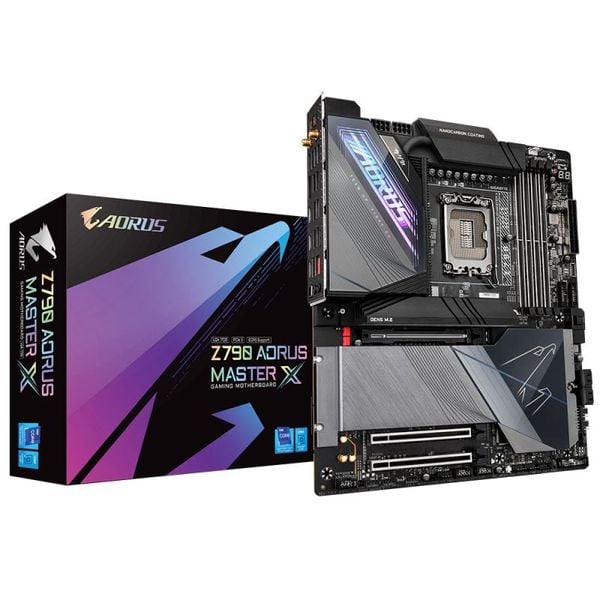

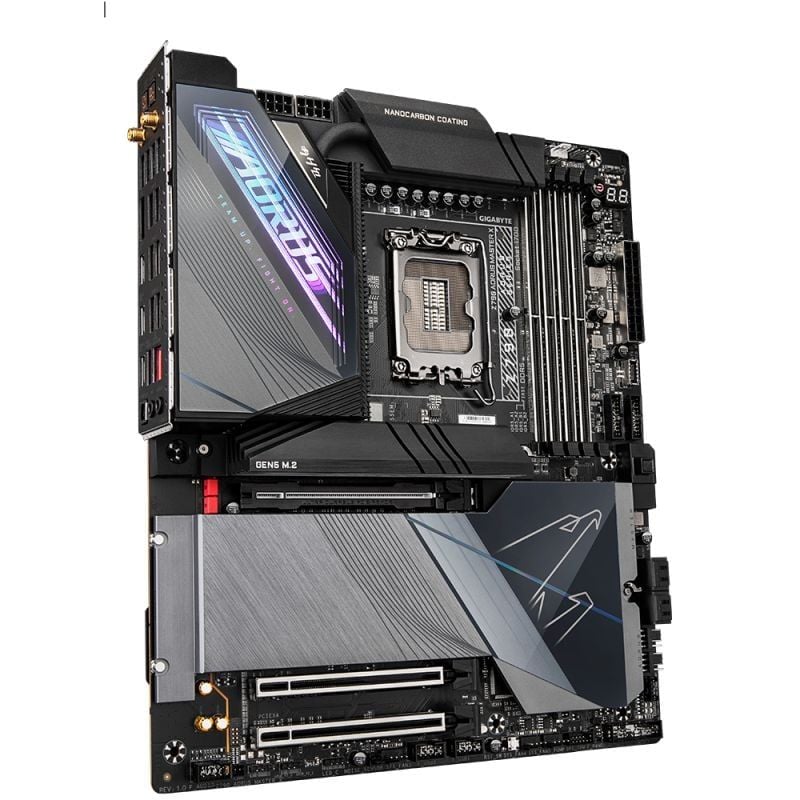

Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700
Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700
Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700
Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700

Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700

0 lượt xem | 0 đã bán |
Thương hiệu: Intel
|
Loại: Mainboard
15,190,000₫ 19,490,000₫
Đã bao gồm VAT Bảo hành 36 tháng chính hãng.
Tiêu đề:
Chọn gói khuyến mãi
ProductInfo
Mainboard Gigabyte Z790 Aorus Master X - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
TRẢ GÓP (HDSAISON)
Duyệt nhanh qua điện thoại TRẢ GÓP QUA THẺ
Visa, Mastercard, JCB(Từ 3 triệu)
Cam kết bán hàng
  • Hàng chính hãng.Mới 100% Hàng chính hãng.Mới 100%
  • Hỗ trợ trả góp Hỗ trợ trả góp
  • Giao hàng ngay (nội thành HN & TP.HCM) Giao hàng ngay (nội thành HN & TP.HCM)
  • Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS. Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.
ProductInfo
Mainboard Gigabyte Z790 Aorus Master X - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
Mô tả sản phẩm

Bảo hành chính hãng 36 tháng

Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

Thông số kỹ thuật

Z790 AORUS MASTER X 1.1
LGA1700 socket: Support for the 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Intel® Z790 Express Chipset Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
  1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
  3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Realtek® ALC1220-VB CODEC Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

* The front panel line out jack supports DSD audio.


ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.


Support for S/PDIF Out Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset: Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

CPU: Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Chipset:
- 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
Chipset+2 USB 3.2 Gen 2 Hubs:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)

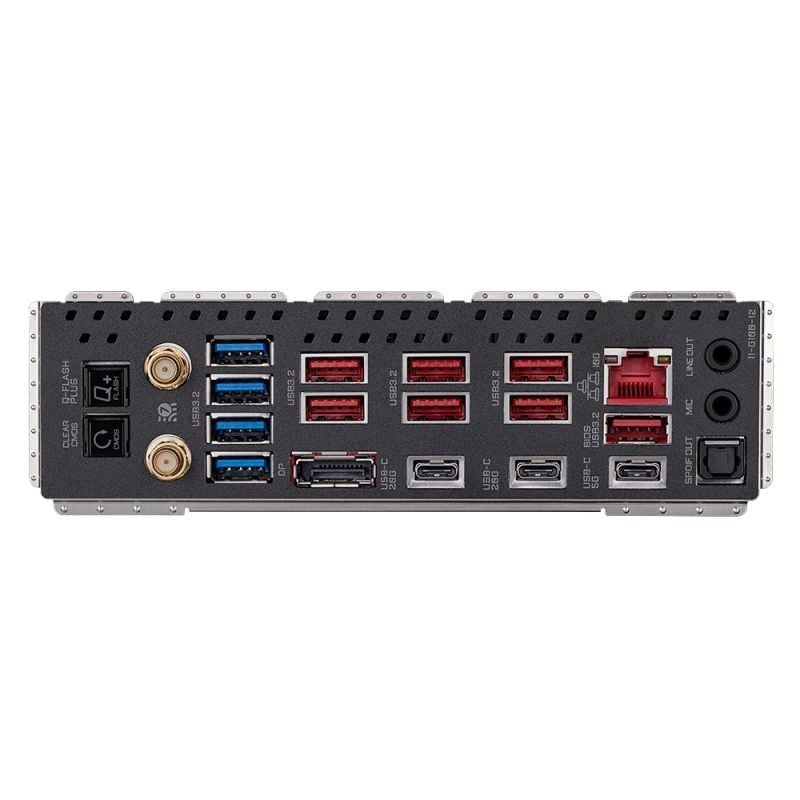

1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
iTE® I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


Noise detection Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Norton® Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
E-ATX Form Factor; 30.5cm x 26.0cm
Z790 AORUS MASTER X 1.2
LGA1700 socket: Support for the 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

* Please refer to "CPU Support List" for more information. Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

Intel® Z790 Express Chipset Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
  1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
  3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Realtek® ALC1220-VB CODEC Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700

* The front panel line out jack supports DSD audio.


ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.


Support for S/PDIF Out Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 7 BE200 (PCB rev. 1.2)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:  Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

CPU:Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Chipset:Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
- 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
Chipset+2 USB 3.2 Gen 2 Hubs:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
iTE® I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


Noise detection Mainboard Gigabyte Z790 Aorus Master X - Socket Intel LGA 1700
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Norton® Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
E-ATX Form Factor; 30.5cm x 26.0cm

Thông số kỹ thuật
Có đánh giá trên sản phẩm “Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700”

Viết đánh giá



Sản phẩm đã xem

0đ

0đ

0đ

0đ

0đ

Đăng kí nhận tin

Hotline
(028) 7108 1881 (9h - 20h)
Messenger
Chat Messenger (9h - 20h)
Zalo
Chat Zalo (9h - 20h)
Success Thêm vào giỏ hàng thành công
G24F-2
PC Gaming Xi3
G24F-2
PC Gaming Xi3

Chi tiết thông số kỹ thuật Mainboard Gigabyte Z790 Aorus Master X – Socket Intel LGA 1700

Thông tin hàng hóa
  • Thương hiệu:
    Apple
  • Xuất xứ:
    Trung Quốc
  • Thời điểm ra mắt:
    09/2022
  • Thời gian bảo hành (tháng):
    12
  • Hướng dẫn bảo quản:
    Để nơi khô ráo, nhẹ tay, dễ vỡ.
  • Hướng dẫn sử dụng:
    Xem trong sách hướng dẫn sử dụng
Thiết kế & Trọng lượng
Kích thước 160.8 x 78.1 x 7.8 mm
Trọng lượng sản phẩm 203 g
