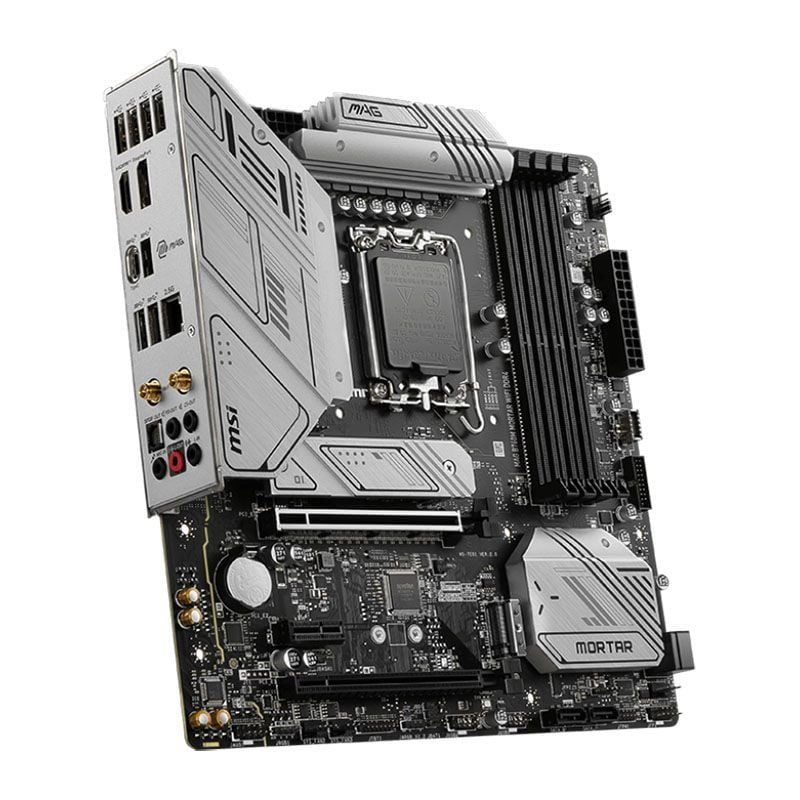

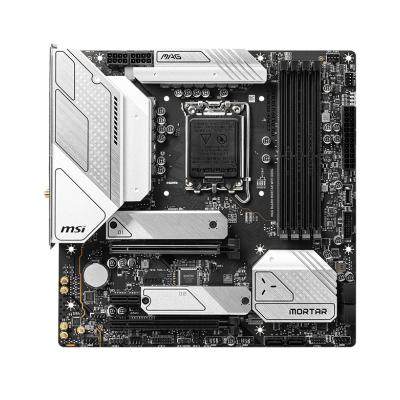

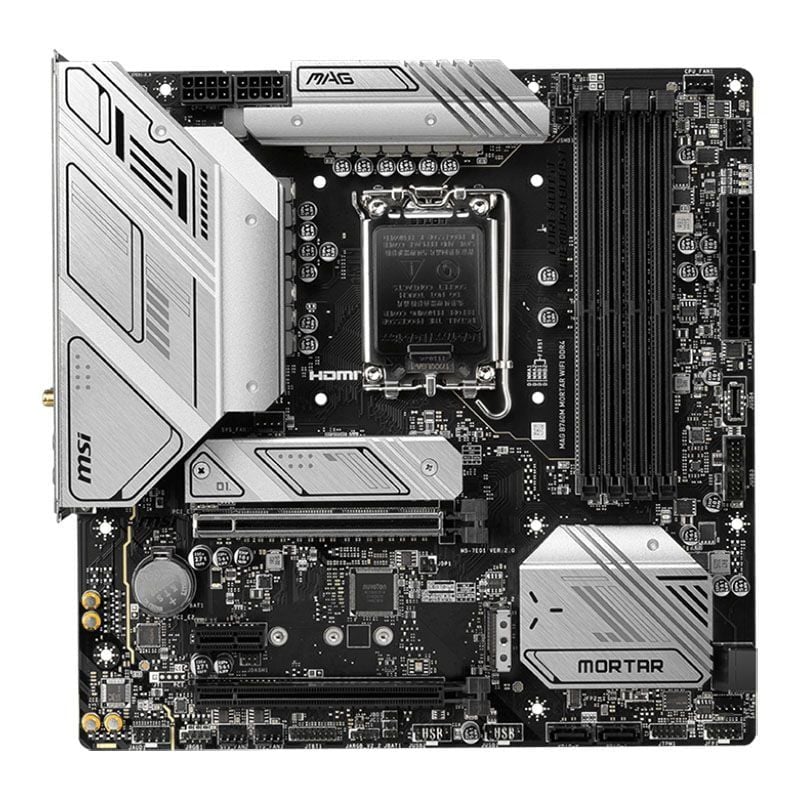

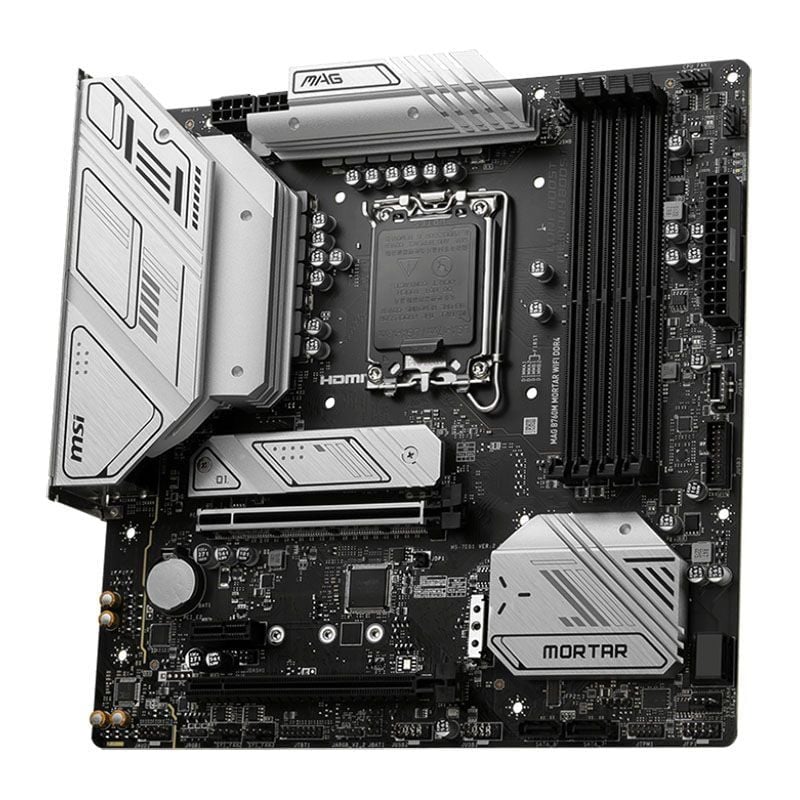

Thông số kỹ thuật Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
PROCESSOR Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- Supports 12th, 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
- Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released.
See supported processors
CHIPSET Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
MEMORY Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
ONBOARD GRAPHICS Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 / 2
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 / 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
AUDIO Mainboard MSI MAG B760M Mortar Wifi DDR4 - Socket Intel LGA 1700
Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
LAN
WIRELESS LAN & BLUETOOTH®
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL CONNECTORS
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE
- 4x EZ Debug LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors

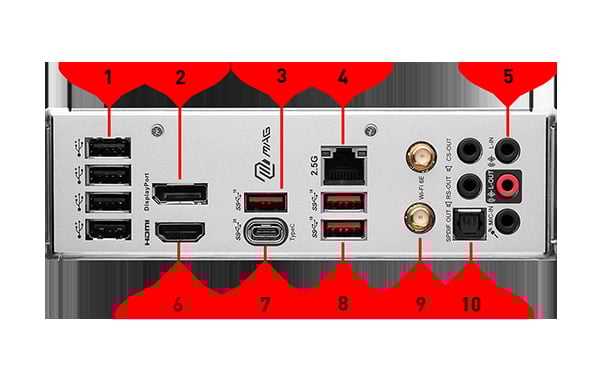

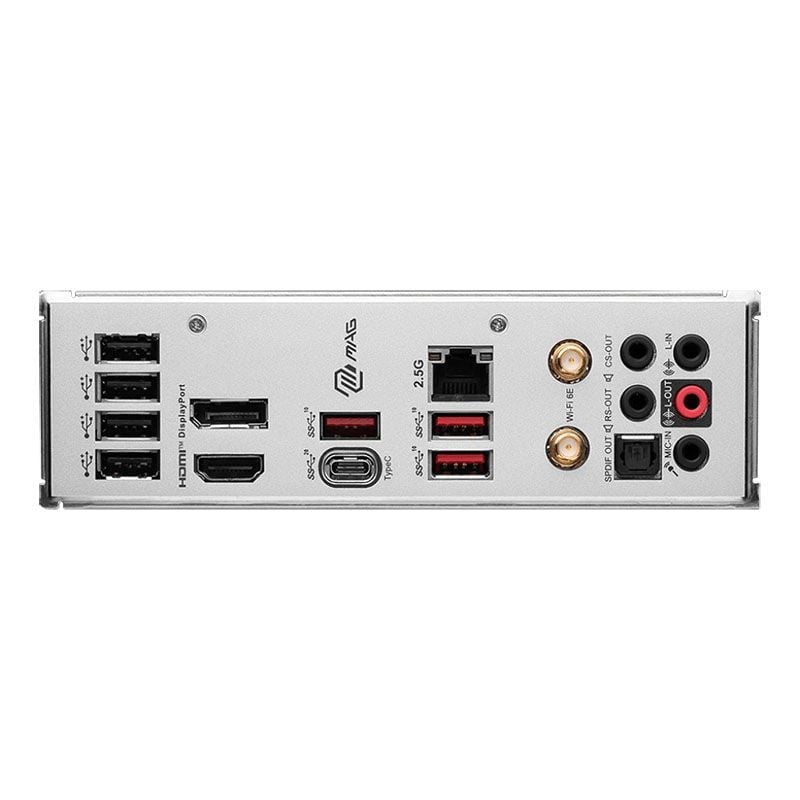

BACK PANEL PORTS
- USB 2.0
- Display Port
- USB 3.2 Gen 2 10Gbps
- 2.5G LAN
- Audio Connectors
- HDMI™
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- USB 3.2 Gen 2 10Gbps
- Wi-Fi / Bluetooth
- Optical S/PDIF OUT
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

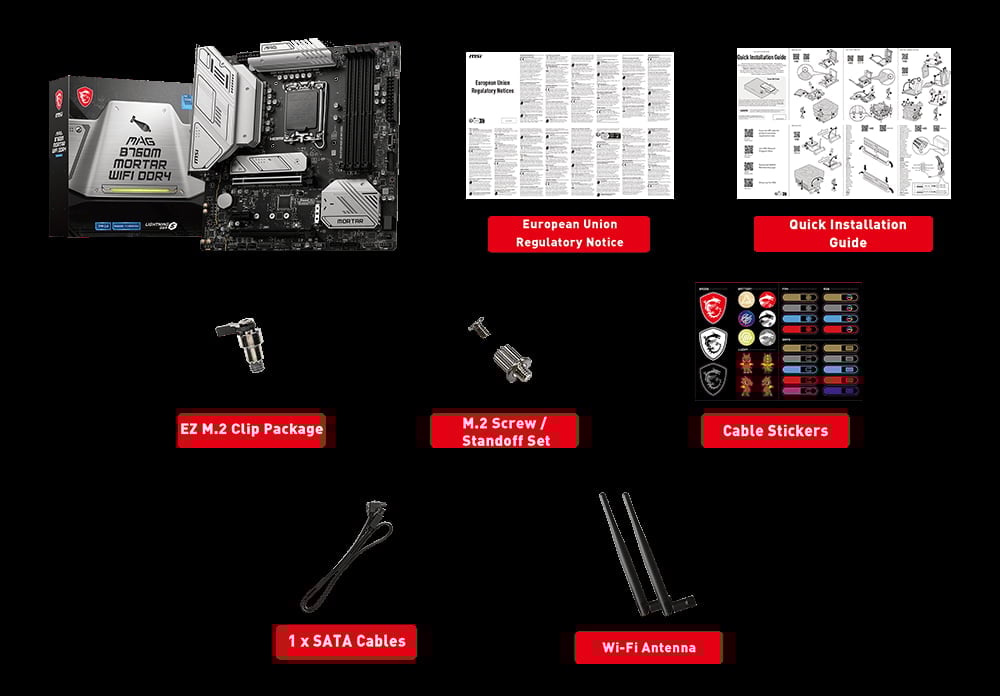

BOX CONTENT
-
- MSI® does not guarantee the risks or damages caused by changing the cover.
-
- These pictures are for reference only and may vary without notice.
ProductInfo
