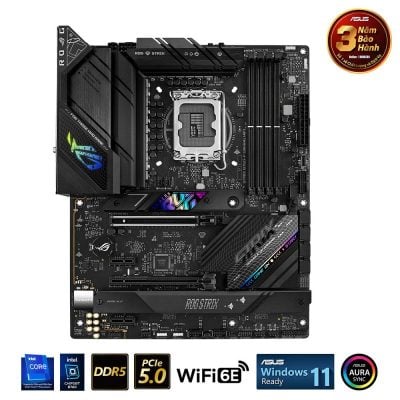

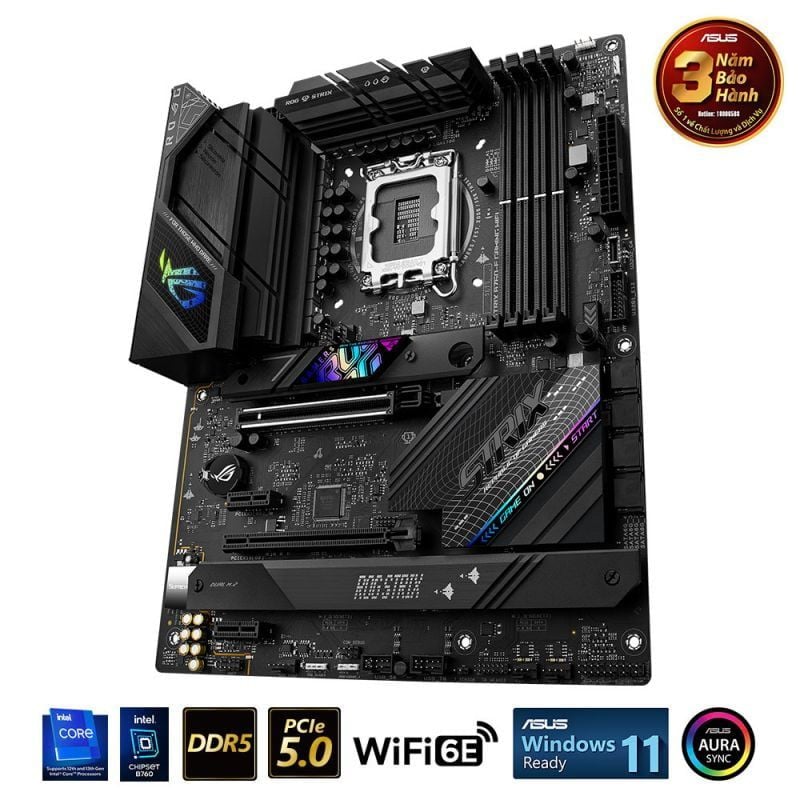

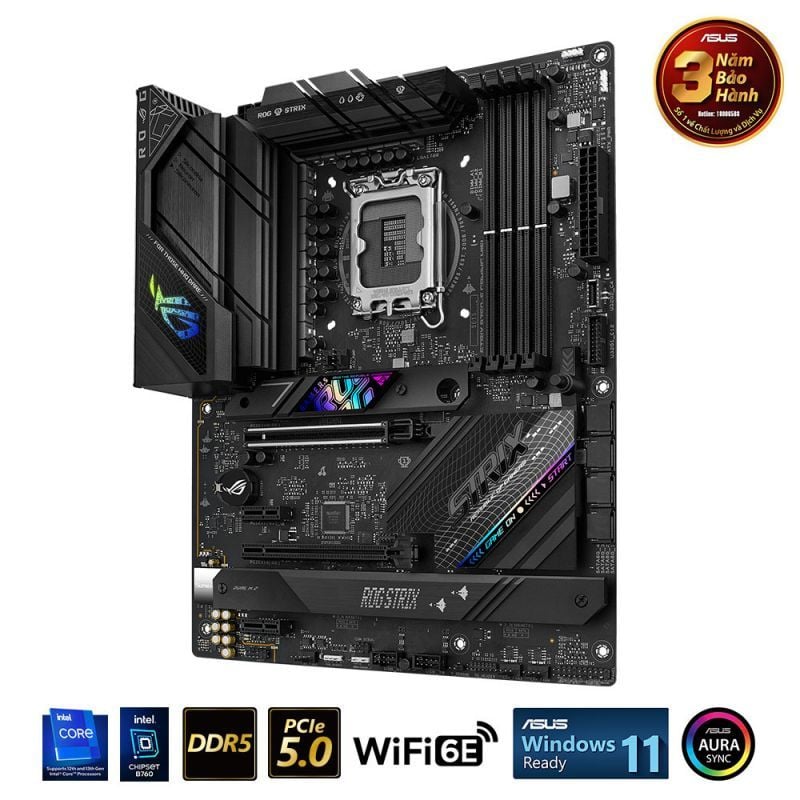

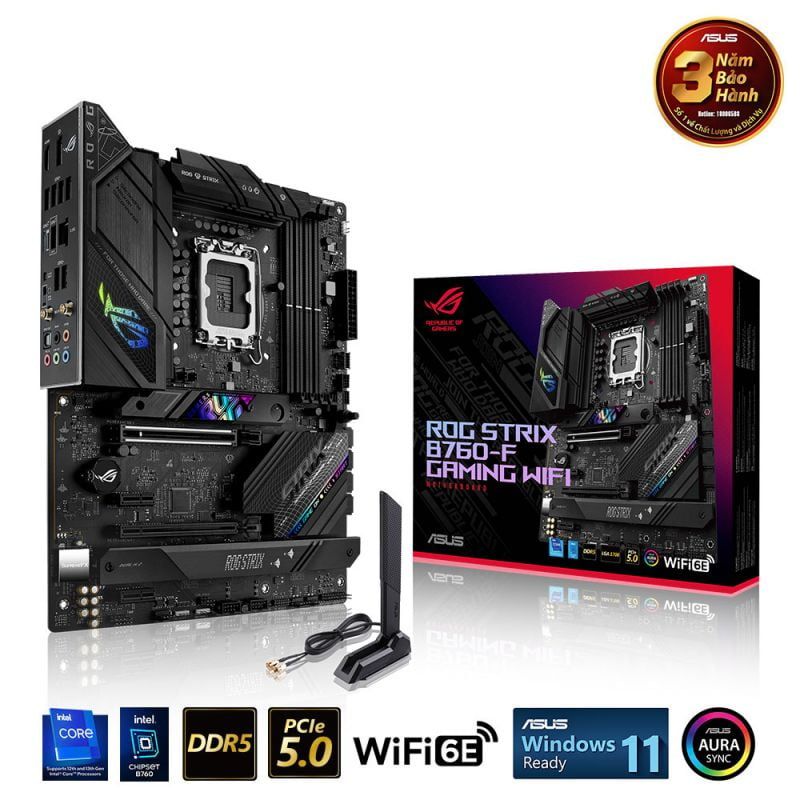

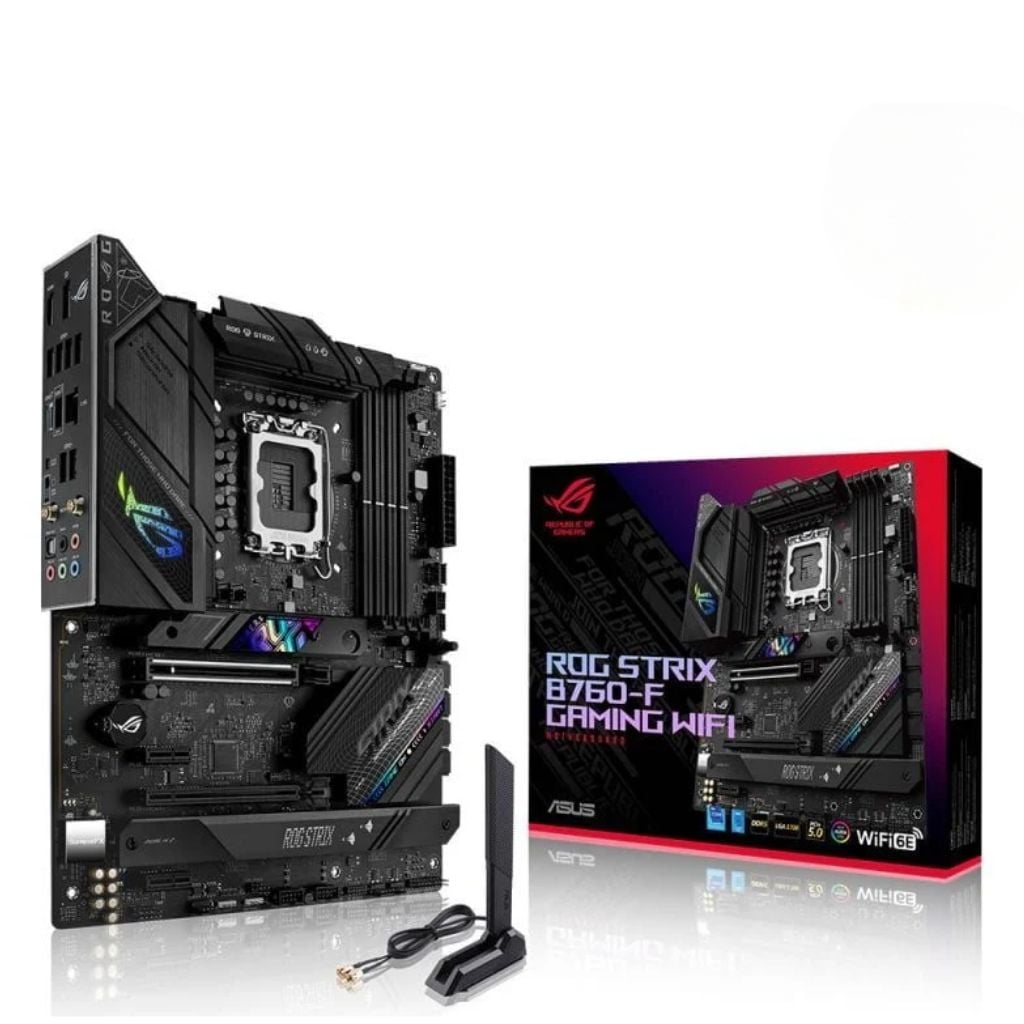

Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

0 lượt xem |
Thương hiệu: Intel
|
Loại: Mainboard
6,490,000₫ 7,990,000₫
Tiêu đề:
Chọn gói khuyến mãi
ProductInfo
Mainboard Asus ROG Strix B760-F Gaming Wifi - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
  • Nhập mã VNPAYICT giảm 3% tối đa 100.000đ cho đơn từ 500.000đ khi thanh toán qua VNPAY
Cam kết bán hàng
  • Hàng chính hãng.Mới 100% Hàng chính hãng.Mới 100%
  • Hỗ trợ trả góp Hỗ trợ trả góp
  • Giao hàng ngay (nội thành HN & TP.HCM) Giao hàng ngay (nội thành HN & TP.HCM)
  • Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS. Đổi trả trong 7 ngày đầu nếu có lỗi phần cứng từ NXS.
ProductInfo
Mainboard Asus ROG Strix B760-F Gaming Wifi - chính hãng giá rẻ tại Xgear. Chất lượng linh kiện cao cấp, bảo hành chính hãng.
Mô tả sản phẩm

Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Thông số Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

CPU Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Intel® B760 Chipset

Memory Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0x16 slot (supports x16 mode)**
Intel® B760 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.


Storage Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Back Panel I/O Ports Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

1 x USB 3.2 Gen 2x2 port  (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks *
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors Mainboard Asus ROG Strix B760-F Gaming Wifi Socket Intel LGA 1700

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 xThunderbolt™ (USB4®) header

Special Features

Extreme Engine Digi+
-  5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
- DIGI+ VRM
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
2 x M.2 Rubber Package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
