Thông số kỹ thuật Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5

• CPU Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  * Refer to www.asus.com for CPU support list.
• Chipset Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5: AMD X670
• Memory Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
  Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  1 x DisplayPort*
  1 x HDMI^® port**
  * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  ** Supports Supports 4K@60Hz as specified in HDMI 2.1.
  *** VGA resolution support depends on processors’ or graphic cards’ resolution.

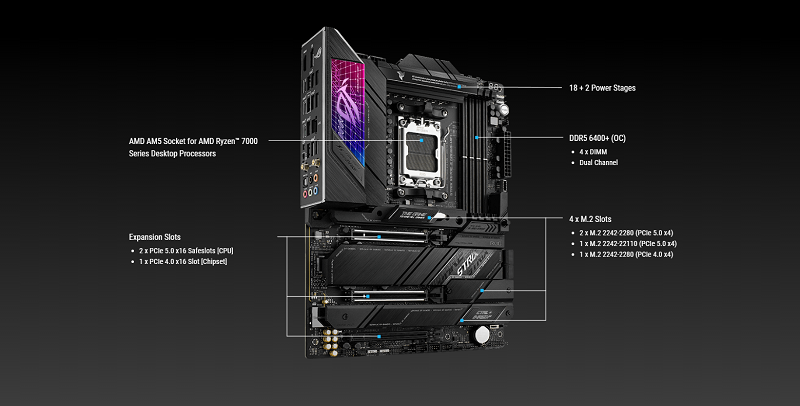

• Expansion Slots Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5
  AMD Ryzen™ 7000 Series Desktop Processors
  2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
  AMD X670 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

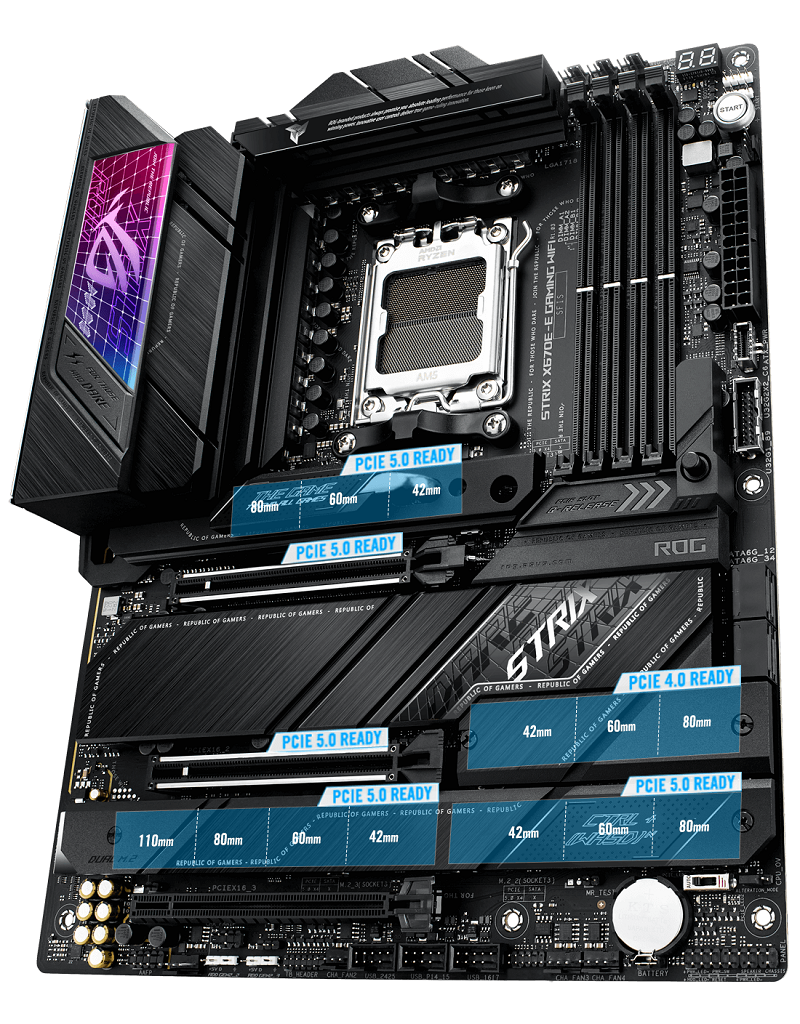

• Storage Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))AMD X670 Chipset
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• Ethernet Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  Wi-Fi 6E
  2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.2
  * WiFi 6E 6GHz regulatory may vary between
  countries, and function will be ready in Windows 11 or later.
• USB Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  Rear USB (Total 13 ports)
  1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
  12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x
  USB Type-C^®)Front USB (Total 9 ports)
  1 x USB 3.2 Gen 2×2 connector
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Audio Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  – Impedance sense for front and rear headphone outputs
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  – Supports up to 32-Bit/384 kHz playback”
  Audio Features
  – Audio Shielding
  – Savitech SV3H712 AMP
  – Gold-plated audio jacks
  – Rear optical S/PDIF out port
  – Premium audio capacitors
  – Audio cover

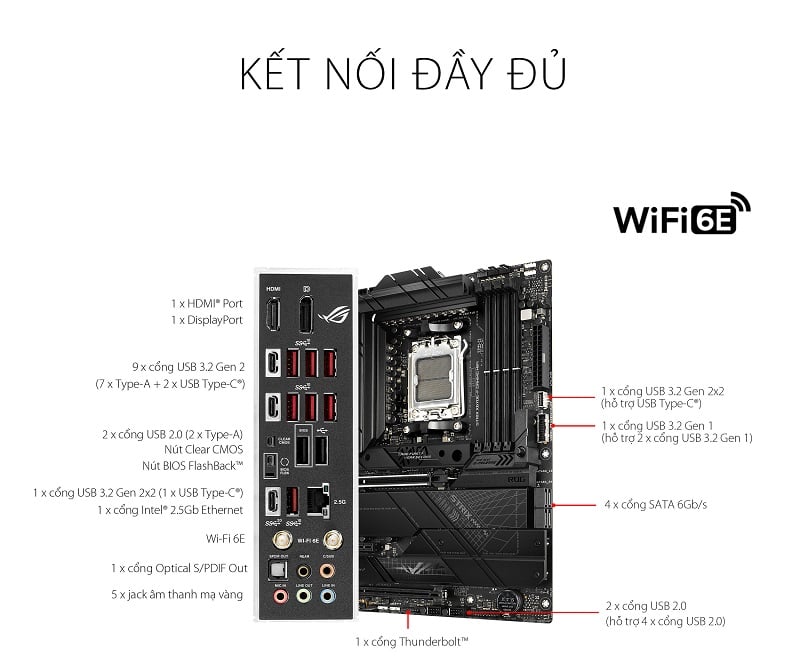

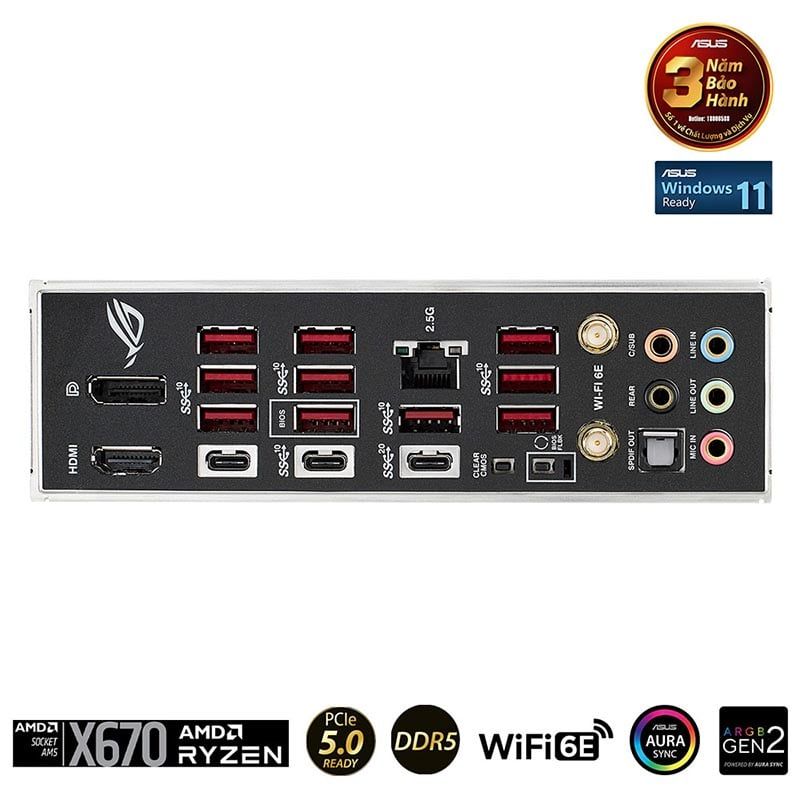

• Back Panel I/O Ports Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  1 x USB 3.2 Gen 2×2 port (1 x Type-C^®)
  12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB
  Type-C^®)
  1 x DisplayPort
  1 x HDMI^® port
  1 x Wi-Fi Module
  1 x Intel^® 2.5Gb Ethernet port
  5 x Gold-plated audio jacks*
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack^™  button
  1 x Clear CMOS button
  *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
• Internal I/O Connectors Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connector
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2×2 connector (supports USB Type-C^®)
  1 x USB 3.2 Gen 1 header supports
  additional 2 USB 3.2 Gen 1 ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Alteration Mode Switch
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio header (AAFP)
  1 x Start button
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header
  1 x Thunderbolt™ header
• Special Features Mainboard Asus ROG Strix X670E-E Gaming Wifi - Socket AMD AM5:
  Extreme Engine Digi+
  – 5K Black Metallic Capacitors
  ASUS Q-Design
  – M.2 Q-Latch
  – PCIe Slot Q-Release
  – Q-DIMM
  – Q-LED (CPU [red], DRAM [yellow], VGA
  [white], Boot Device [yellow green])
  – Q-Slot
  ASUS Thermal Solution
  – M.2 heatsinks
  – M.2 heatsink backplate
  – VRM heatsink design
  ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  – Clear CMOS button
  – ProCool II
  – Pre-mounted I/O shield
  – SafeSlot
  – SafeDIMM
  Aura Sync
  – Aura RGB header
  – Addressable Gen 2 headers
• Software Features:
  ROG Exclusive Software
  – GameFirst VI
  – ROG CPU-Z
  – Sonic Studio III + Sonic Studio Virtual
  Mixer + Sonic Suite Companion
  – Sonic Radar III
  – DTS^® Sound Unbound
  – Anti-virus software
  ASUS Exclusive Software
  Armoury Crate
  – AIDA64 Extreme (60 days free trial)
  – Aura Creator
  – Aura Sync
  – Fan Xpert 4 (with AI Cooling II)
  – Power Saving
  – Two-Way AI Noise Cancellation
  AI Suite 3
  TPU
  DIGI+ VRM
  Turbo app
  PC Cleaner
  MyAsus
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  Dynamic OC Switcher
  FlexKey
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Accessories
  Cables
  2x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x Massive M.2 Heatsink
  1 x M.2 Q-Latch package for M.2 backplate
  1 x M.2 Q-Latch package
  1 x ROG Graphics card holder
  2 x Rubber Packages for M.2
  1 x Rubber Package for M.2 backplate
  1 x ROG key chain
  1 x ROG Strix sticker
  1 x ROG Strix thank you card
  Documentation
  1 x User guide
• Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  ATX
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
