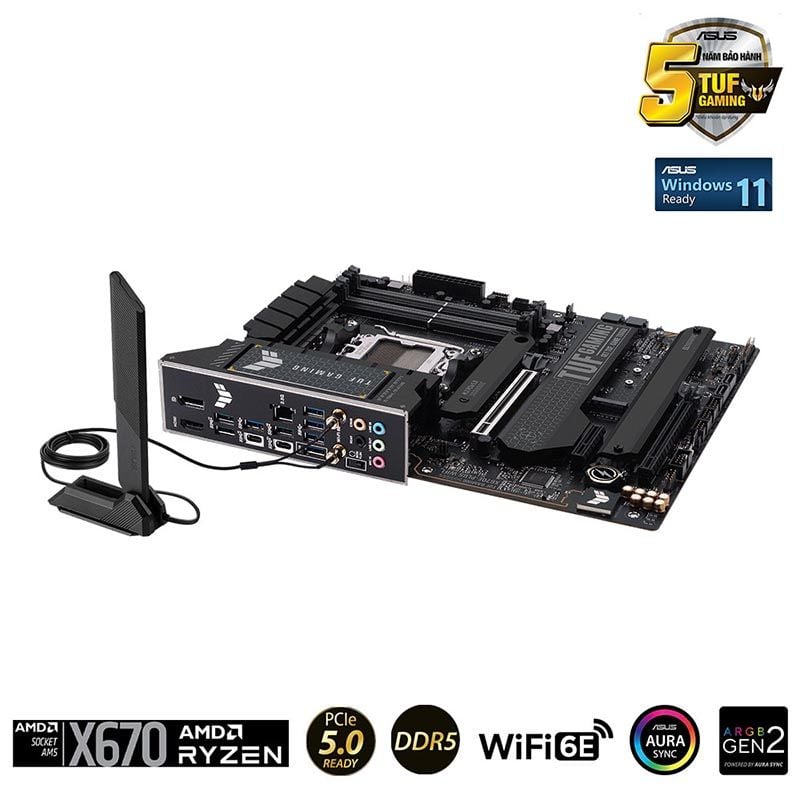

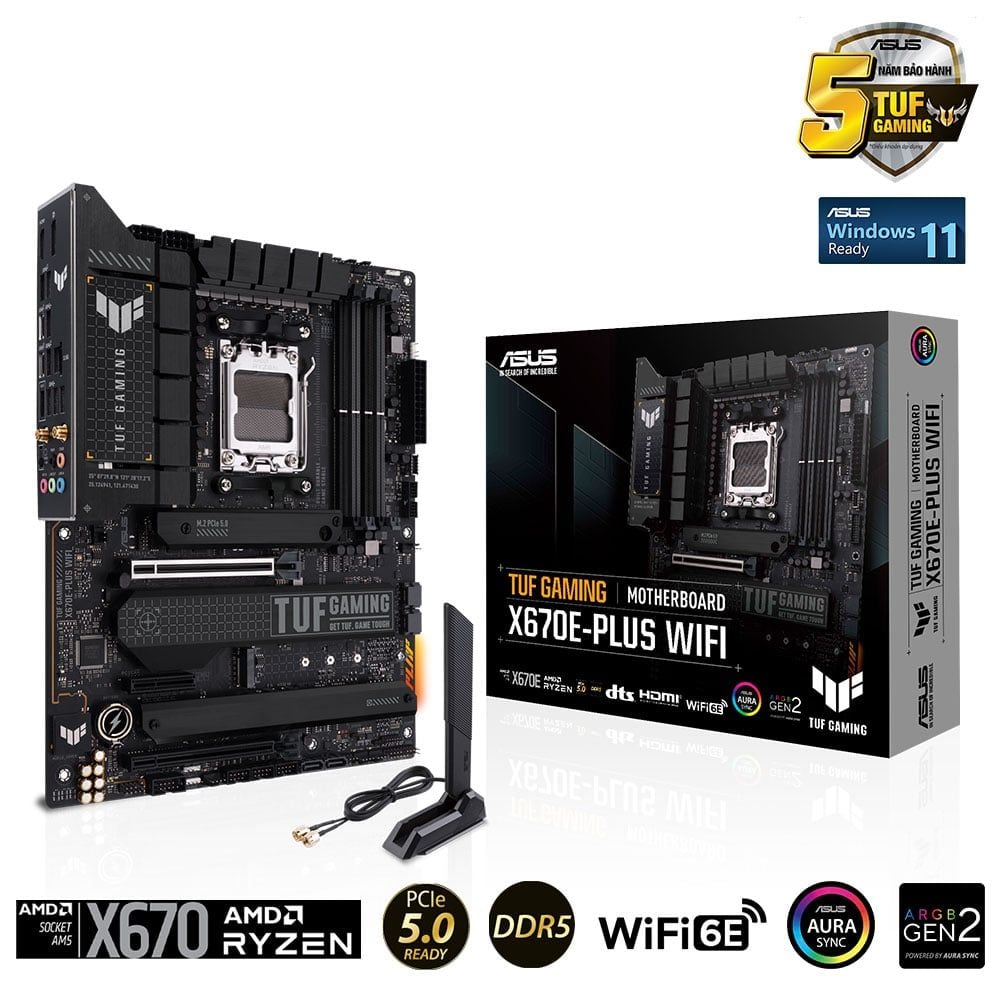

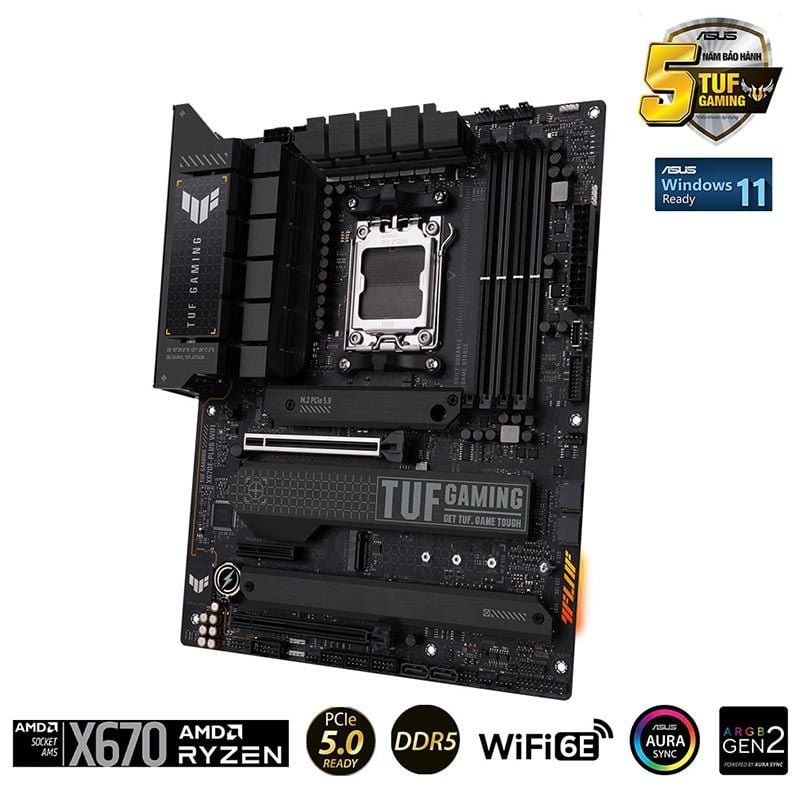

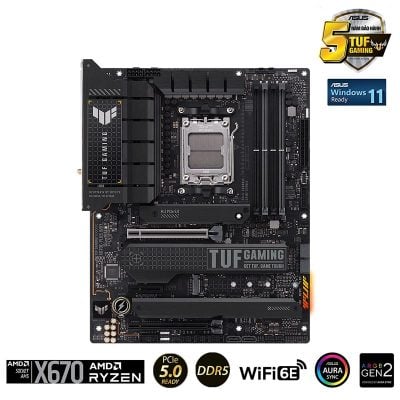

Mainboard Asus TUF Gaming X670E Plus Wifi – Socket AMD AM5

Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5

Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5

Thông số kỹ thuật Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5

• CPU Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
  * Refer to www.asus.com for CPU support list.
• Chipset Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5: AMD X670
• Memory Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5:
  4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
• Graphics Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5:
  1 x DisplayPort**
  1 x HDMI® port***
  * Graphics specifications may vary between CPU types.
  ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5
  AMD Ryzen™ 7000 Series Desktop Processors*
  -1 x PCIe 5.0 x16 slot
  AMD X670 Chipset
  -1 x PCIe 4.0 x16 slot (supports x4 mode)
  -1 x PCIe 4.0 x4 slots
  * Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
• Storage Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5 :
  Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD X670 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.
• Ethernet Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5:
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
• Wireless & Bluetooth Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5:
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.2
  * WiFi 6E 6GHz regulatory may vary between countries.
• USB Mainboard Asus TUF Gaming X670E Plus Wifi - Socket AMD AM5:
  Rear USB (Total 10 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
  5 x USB 3.2 Gen 1 ports (5 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Audio:
  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  - Impedance sense for front and rear headphone outputs
  - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  - Supports up to 32-Bit/192 kHz playback*
  Audio Features
  - Audio shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  - Audio cover
  - Unique de-pop circuit
  * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

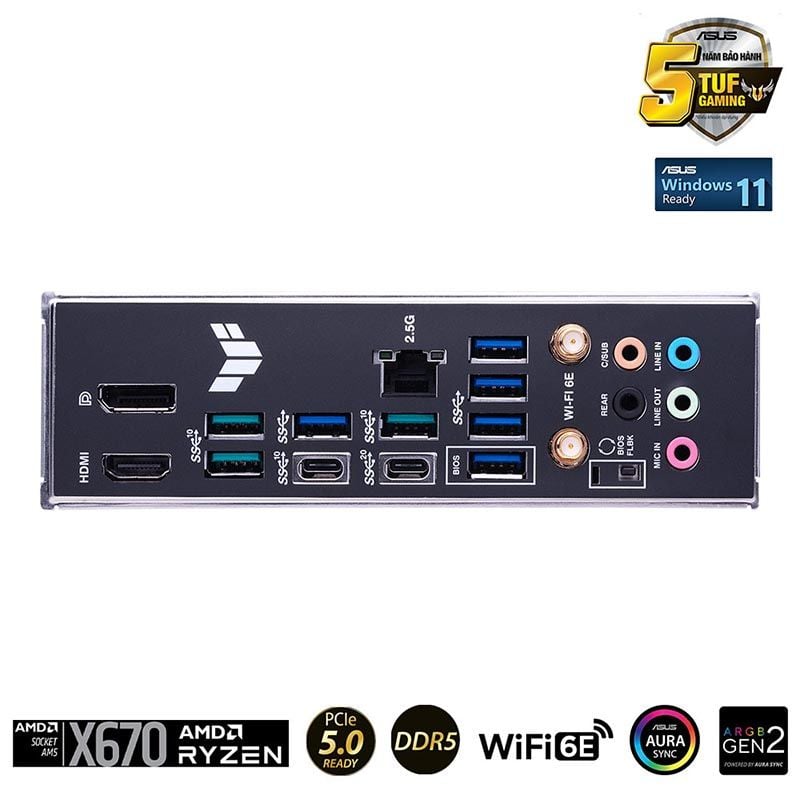

• Back Panel I/O Ports:
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
  5 x USB 3.2 Gen 1 ports (5 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x BIOS FlashBack™ button
• Internal I/O Connectors:
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  1 x W_PUMP+ header
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connectors
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header
  1 x Thunderbolt™ header
• Special Features:
  TUF PROTECTION
  - DIGI+ VRM (- Digital power design with DrMOS)
  - ESD Guards
  - LANGuard
  - Overvoltage Protection
  - Safeslot Core+
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - M.2 Q-Latch
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Clear CMOS header
  - ProCool
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  AURA Sync
  - AURA RGB header
  - Addressable Gen 2 headers
• Software Features:
  ASUS Exclusive Software
  Armoury Crate
  - AURA Sync
  - Fan Xpert 4 (with AI Cooling II)
  - Power Saving
  - Two-Way AI Noise Cancellation
  AI Suite 3
  - Easy Optimization
  - DIGI+ VRM
  - Turbo app
  - PC Cleaner
  TUF GAMING CPU-Z
  DTS Audio Processing
  MyAsus
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  FlexKey
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

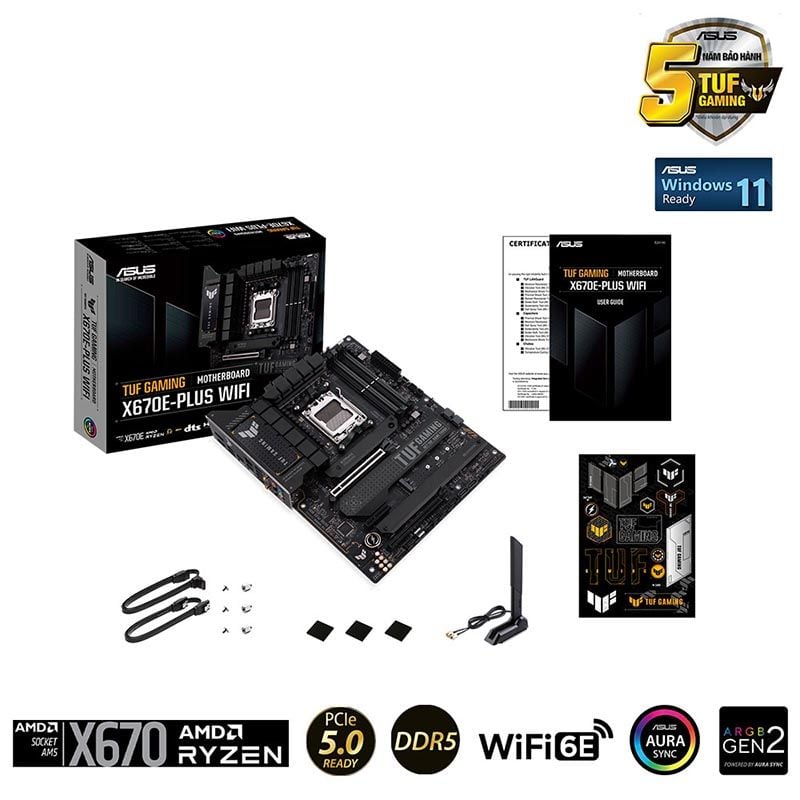

• Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antenna
  2 x Rubber packages for M.2
  2 x Screw packages for M.2 SSD
  Documentation
  1 x TUF certification card
  1 x User guide
• Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm
