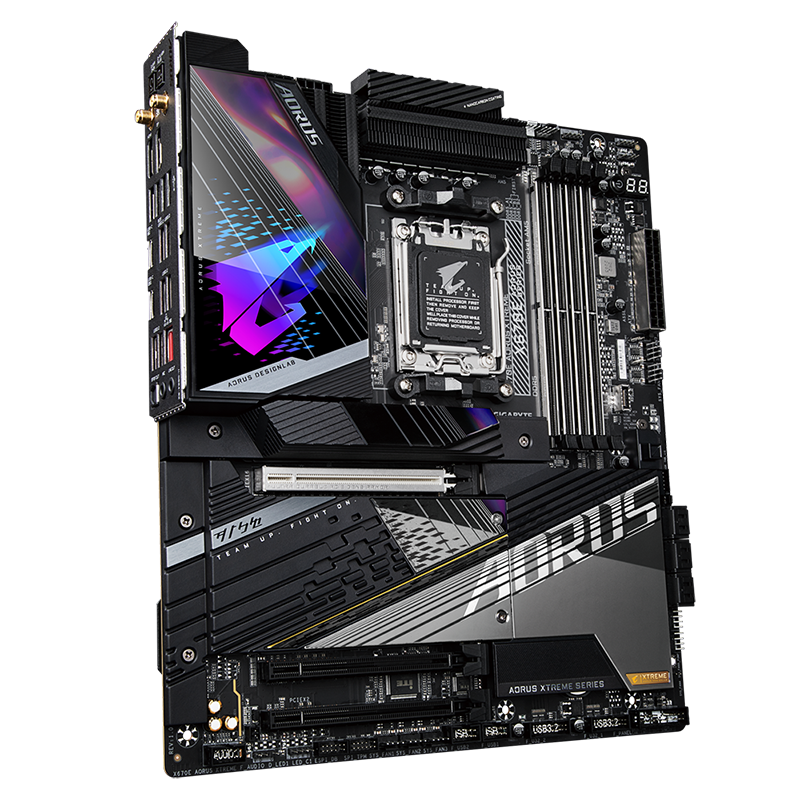

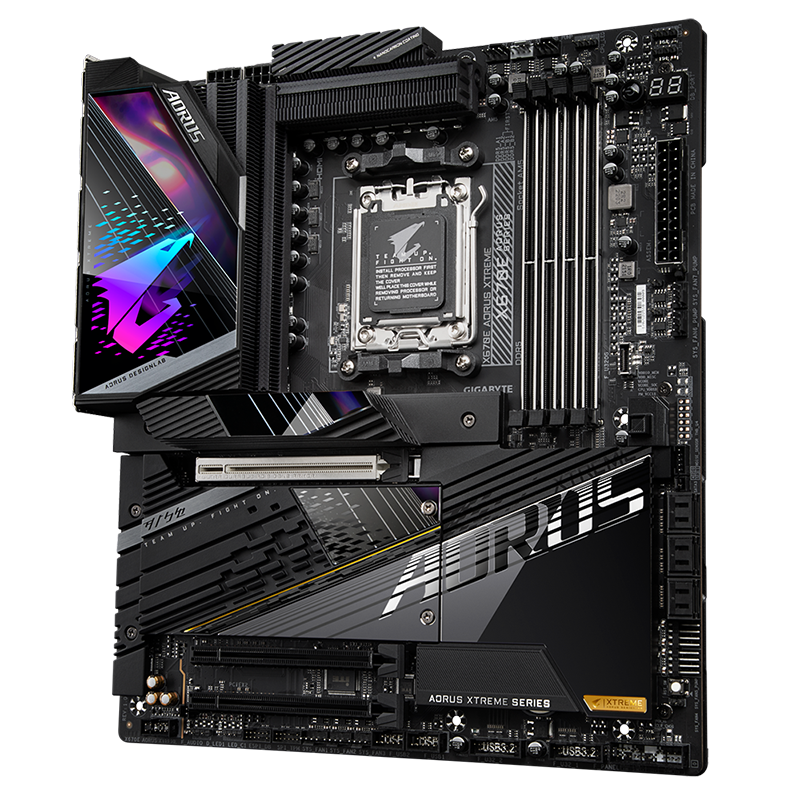

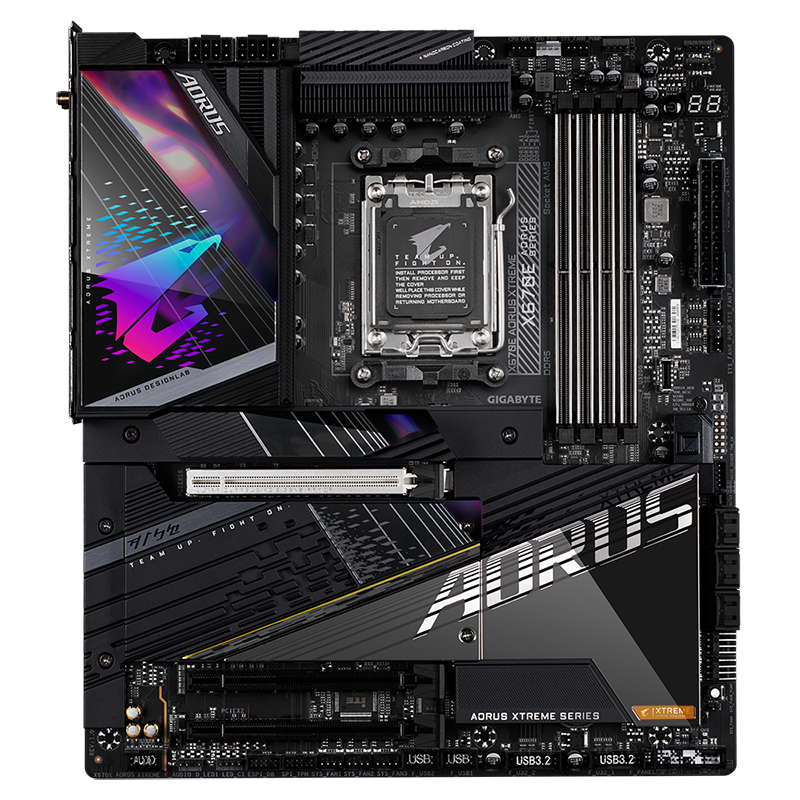

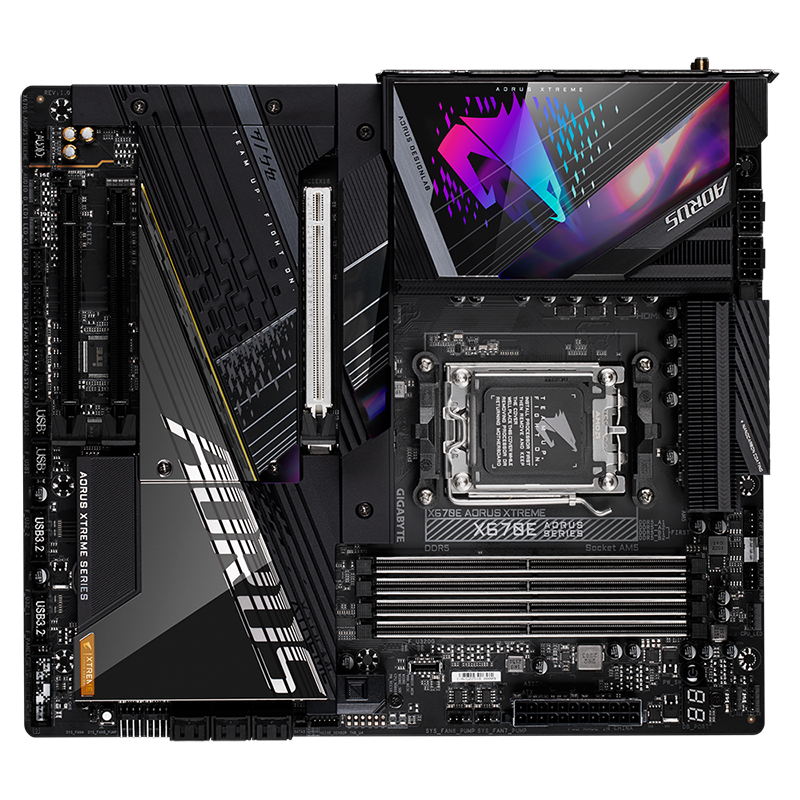

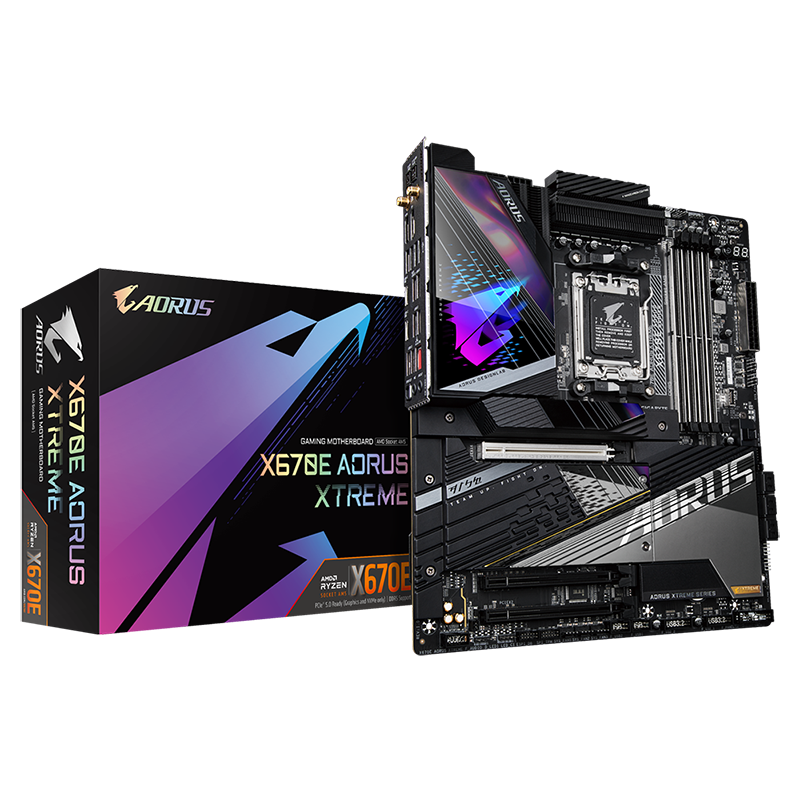

Mainboard Gigabyte X670E Aorus Xtreme – Socket AMD AM5

Mainboard Gigabyte X670E Aorus Xtreme DDR5 – Socket AM5

Mainboard Gigabyte X670E Aorus Xtreme DDR5 – Socket AM5

Thông số kỹ thuật Mainboard Gigabyte X670E Aorus Xtreme DDR5 – Socket AM5

• CPU Hỗ trợ Mainboard Gigabyte X670E Aorus Xtreme: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
  (Please refer “CPU Support List” for more information.)
• Chipset:  AMD X670
• Bộ nhớ Mainboard Gigabyte X670E Aorus Xtreme: Support for DDR5 5200/4800/4400 MHz memory modules
  4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
• Card đồ họa tích hợp Mainboard Gigabyte X670E Aorus Xtreme:
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.
  1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 1.4 version and HDR.
  (Graphics specifications may vary depending on CPU support.)
• Âm thanh Mainboard Gigabyte X670E Aorus Xtreme: Realtek® ALC1220-VB CODEC
  * The front panel line out jack supports DSD audio.
  ESS ES9118 DAC chip
  Support for DTS:X® Ultra
  High Definition Audio
  2/4/5.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
  Support for S/PDIF Out
• LAN Mainboard Gigabyte X670E Aorus Xtreme: Marvell® AQtion AQC113C 10GbE LAN chip
  (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module Mainboard Gigabyte X670E Aorus Xtreme:
  Intel® Wi-Fi 6E AX210
  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  BLUETOOTH 5.3
  Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  (Actual data rate may vary depending on environment and equipment.)
• Khe cắm mở rộng Mainboard Gigabyte X670E Aorus Xtreme:
  CPU:
  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
• Giao diện lưu trữ Mainboard Gigabyte X670E Aorus Xtreme:
  CPU:
  1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
  * Actual support may vary by CPU.
  3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU)
  * Actual support may vary by CPU.
  Chipset:
  6 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB Mainboard Gigabyte X670E Aorus Xtreme:
  CPU:
  1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  CPU + USB 2.0 Hub:
  4 x USB 2.0/1.1 ports on the back panel
  Chipset:
  2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4 x USB 3.2 Gen 1 ports available through the internal USB headers
  4 x USB 2.0/1.1 ports available through the internal USB headers
• Kết nối I/O bên trong
  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x water cooling CPU fan header
  4 x system fan headers
  4 x system fan/water cooling pump headers
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  1 x CPU cooler LED strip/RGB LED strip header
  4 x M.2 Socket 3 connectors
  6 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  2 x USB 3.2 Gen 1 headers
  2 x USB 2.0/1.1 headers
  1 x noise detection header
  1 x THB_U4 add-in card connector
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x power button
  1 x reset button
  2 x temperature sensor headers
  1 x reset jumper
  1 x Clear CMOS jumper
  Voltage Measurement Points

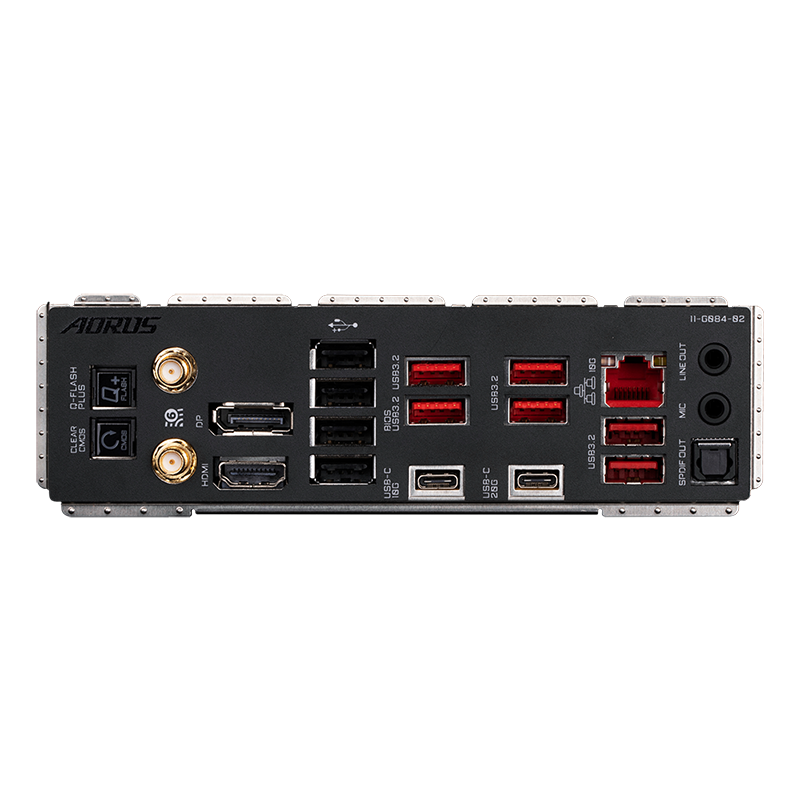

• Kết nối bảng phía sau
  1 x Q-Flash Plus button
  1 x Clear CMOS button
  2 x SMA antenna connectors (2T2R)
  1 x DisplayPort
  1 x HDMI 2.0 port
  1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  6 x USB 3.2 Gen 2 Type-A ports (red)
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks
• Điều khiển I/O
  iTE® I/O Controller Chip
• Theo dõi phần cứng
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS:
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất:
  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
• Gói phần mềm
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Hệ điều hành
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Hệ số khuôn
  E-ATX Form Factor; 30.5cm x 26.9cm
