CHIPSET

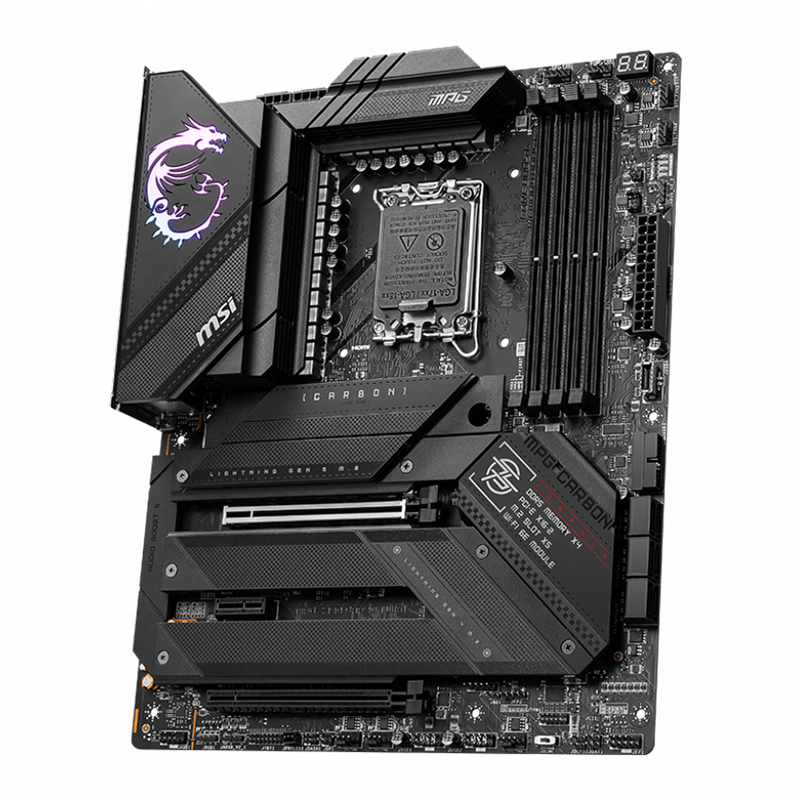

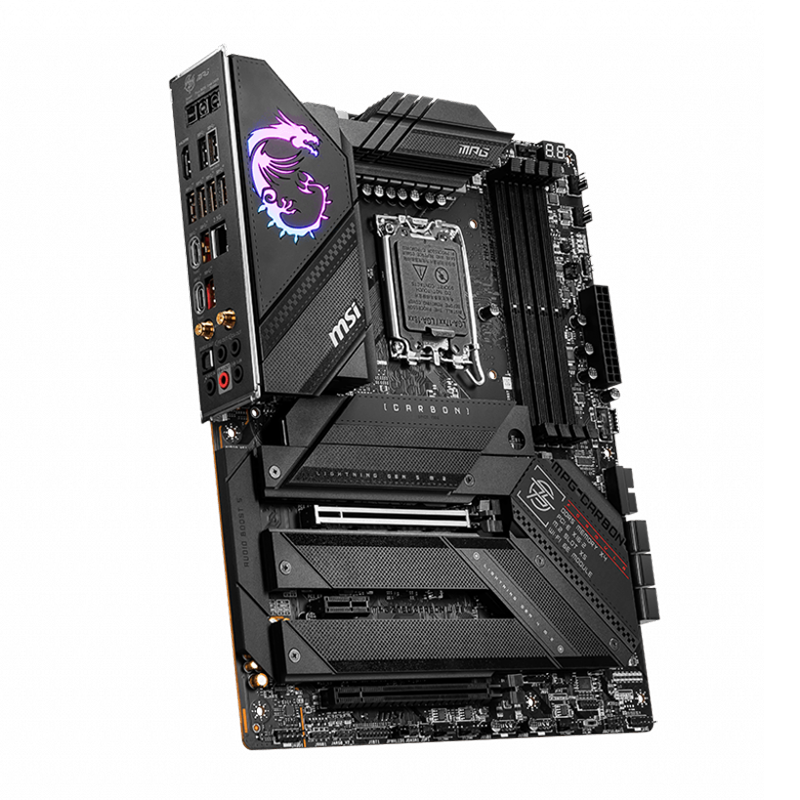

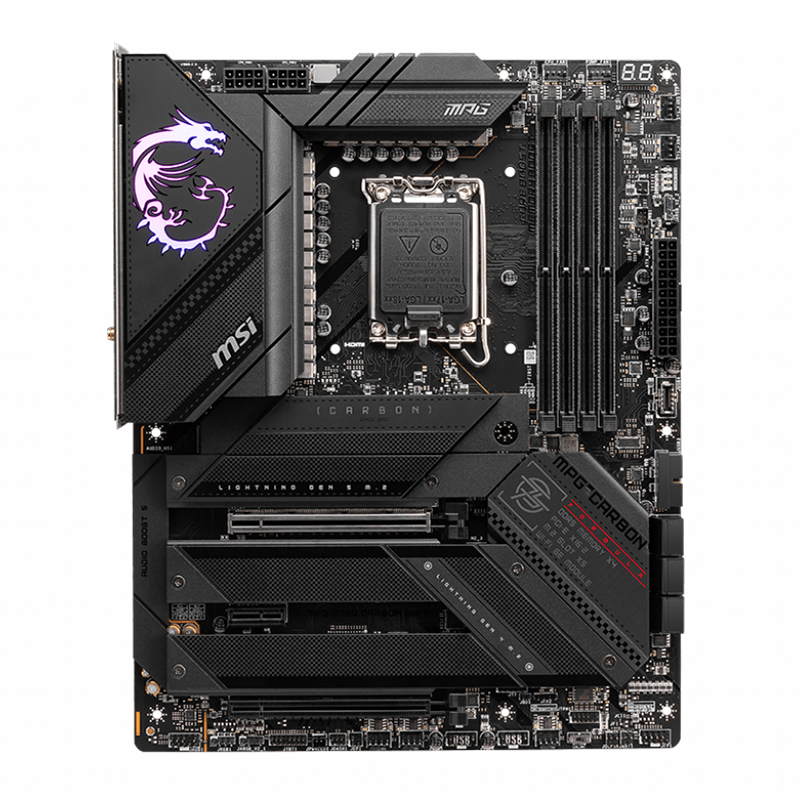

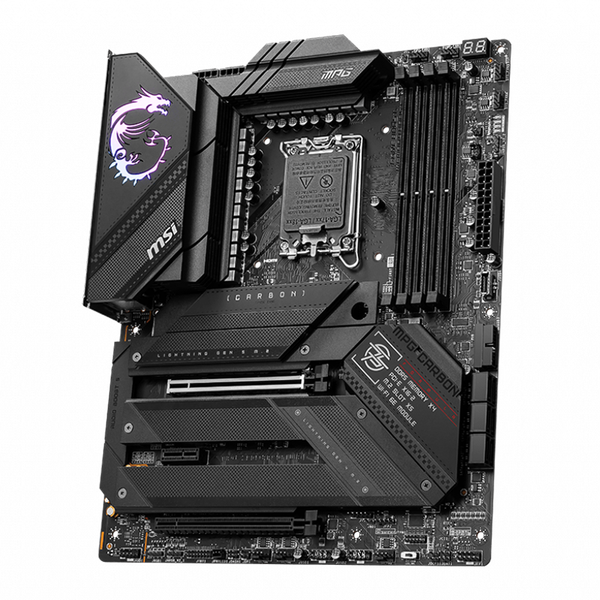

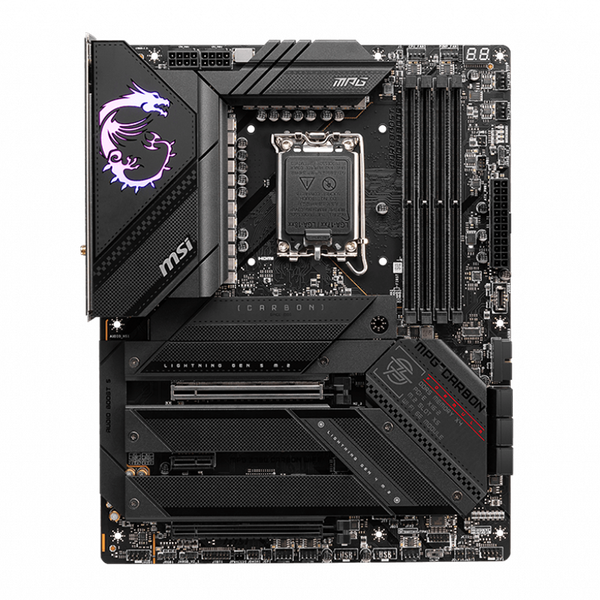

Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
INTEL Z790 |
CPU SUPPORT
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700 |
MEMORY
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
ONBOARD GRAPHICS
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port |
RAID
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function. |
USB
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front) |
LAN
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
Intel® 2.5Gbps LAN |
WIRELESS / BLUETOOTH
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11." |
AUDIO
Mainboard MSI MPG Z790 Carbon Wifi - Socket Intel LGA 1700
|
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C |
| LED FEATURE |
1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED |

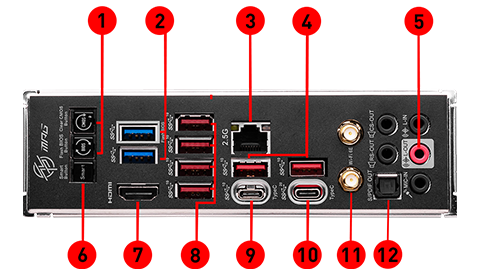

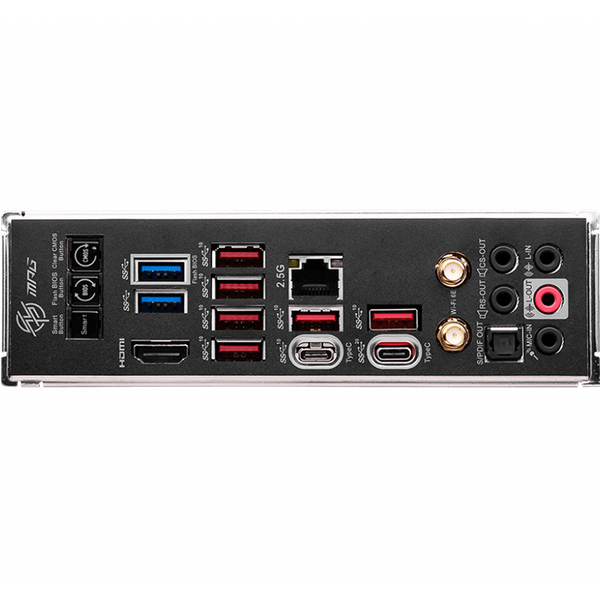

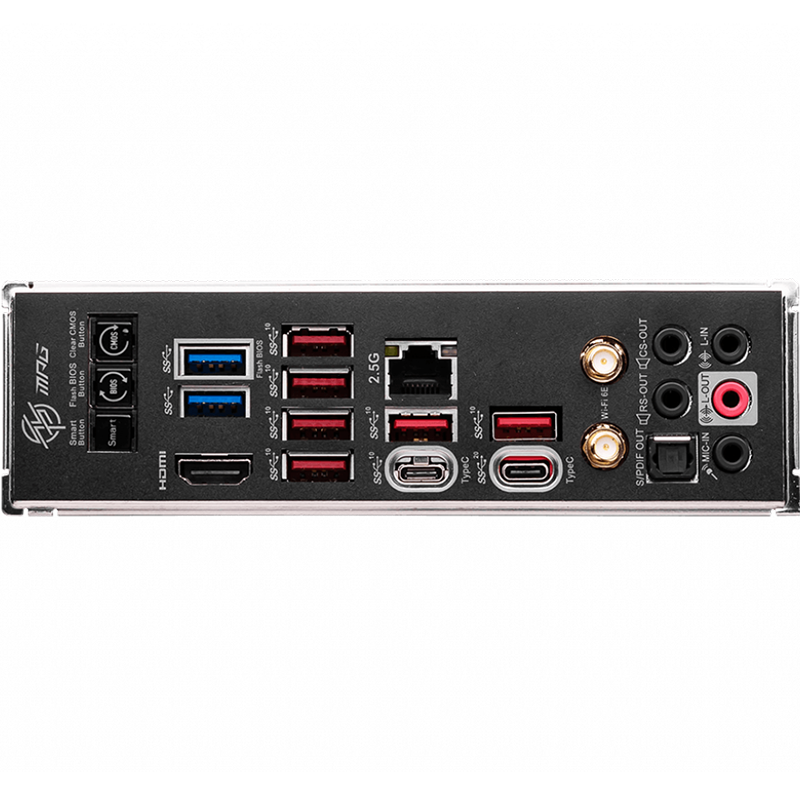

| BACK PANEL PORTS |
- Clear CMOS / Flash
- USB 3.2 Gen 1 5 Gbps (Type-A)
- 2.5G LAN
- USB 3.2 Gen 2 10Gbps (Type-A)
- Audio Connectors
- Smart Button
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- Wi-Fi / Bluetooth
- Optical S/PDIF Out
|
| PCB DIMENSION |
ATX
243.84mmx304.8mm |

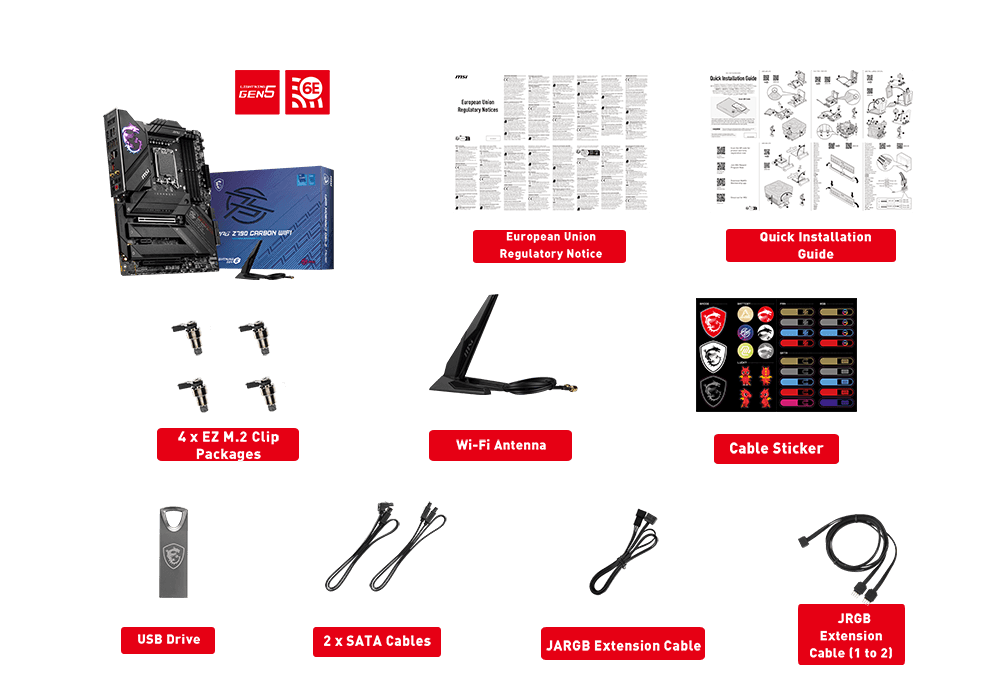

| BOX CONTENT |
 |
